PSR78 Repeater
User Manual V0.1
Page | 10

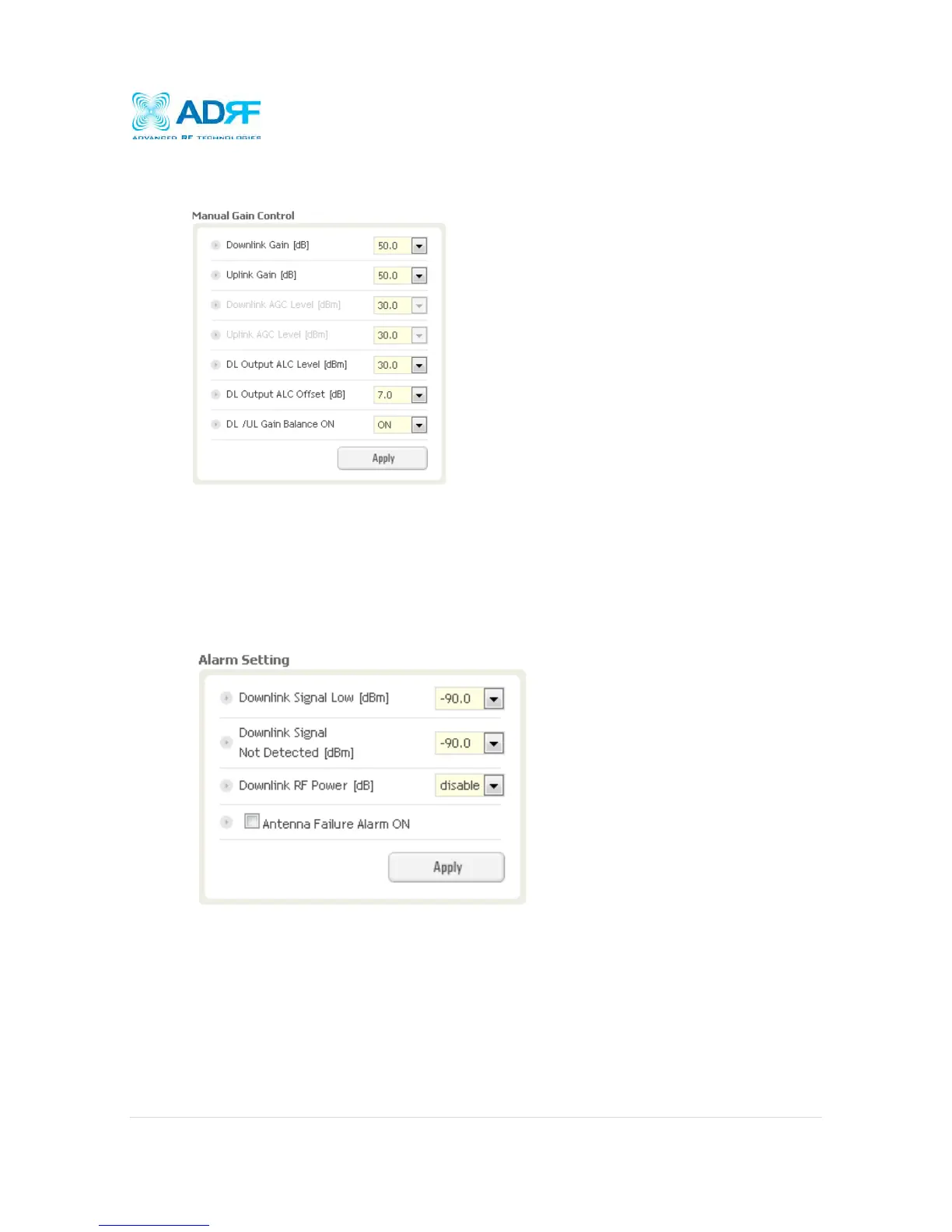

4.3.6 Manual Gain Control
o Downlink Gain: Allows the DL gain to be adjusted manually when AGC is OFF
o Uplink Gain: Allows the UL gain to be adjusted manually when AGC is OFF
o Downlink AGC Level: Allows the user to set the DL gain when AGC is enabled
o Uplink AGC Level: Allows the user to set the UL gain when AGC is enabled
o DL Output ALC Level:
o DL Output ALC Offset:
o DL /UL Gain Balance ON:
4.3.7 Alarm Setting
o Downlink RSSI: Allows the user to specify the how weak the signal can be before triggering a “RSSI
at Donor” soft-fail alarm
o Downlink RF Power: Allows the user to set a maximum deviation value for the downlink RF power
For example, if the input signal is -50 dBm and the gain is set to 60 dB, the expected output
power should be 10 dBm. If the Downlink RF Power alarm value is set to 6dB, then if the
output power is below 4 dBm, then this will trigger a soft-fail alarm
