5.3.3 Top-hat rail mounting

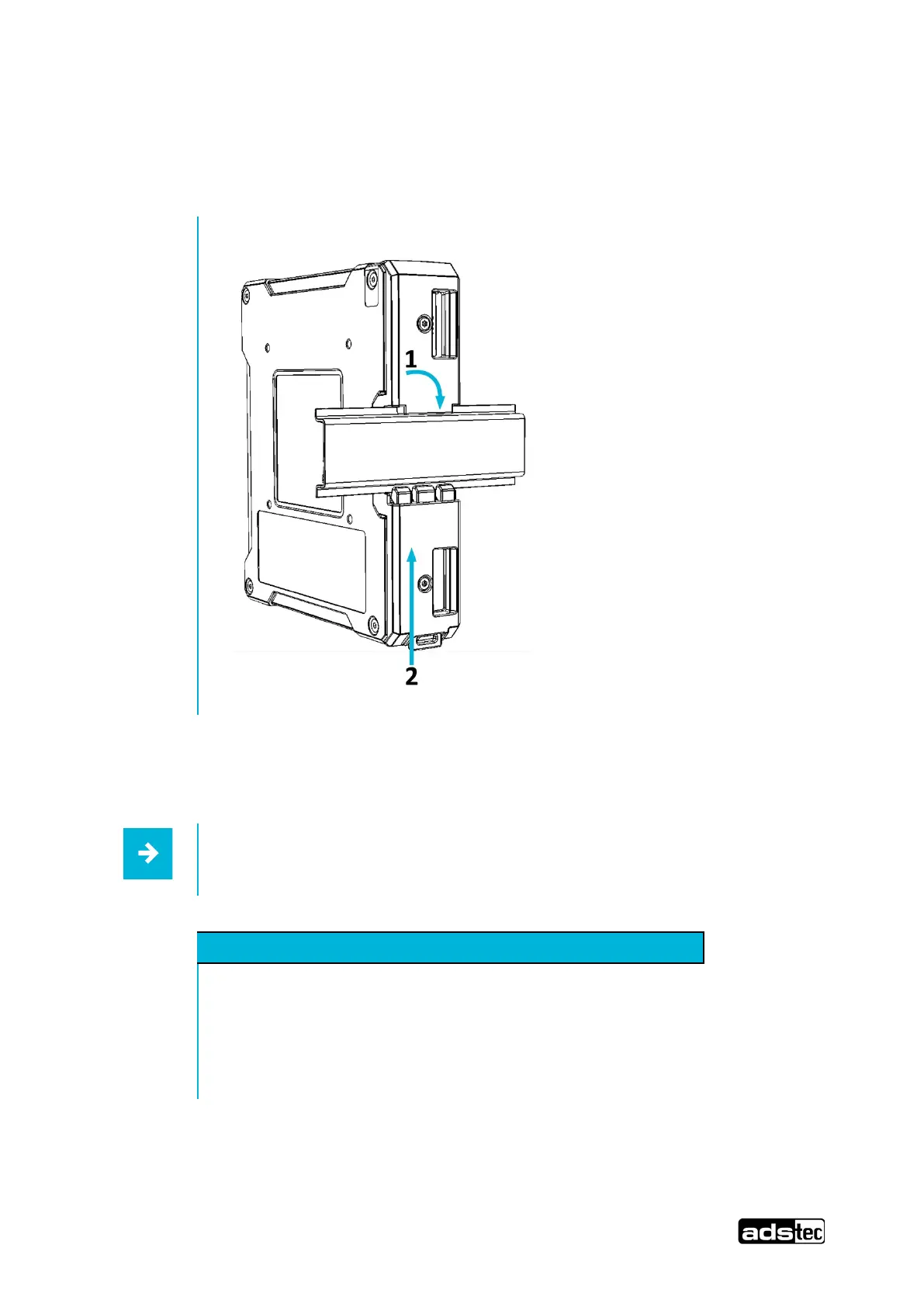

The device is placed on the top-hat rail obliquely (1) and secured to the bottom by pressing lightly (2).
The device must noticeably engage in the top-hat rail.
Fig. 5
To release the device from the top-hat rail, proceed in the reverse order.
Recommendation for use:
When removing, take care not to damage the top-hat rail adapter of the device.
Damage to the device due to vibrations
Horizontal vibrations might damage the device.
Make sure the device is mounted in such a way that it is sufficiently
protected from vibrations.
