6.4.2 LAN (RJ45)
Pin Signal
1 D1+
2 D1-
3 D2+
4 D3+
5 D3-
6 D2-
7 D4+
8 D4-
6.4.3 WAN (RJ45)
Pin Signal
1 D1+
2 D1-
3 D2+
4 D3+
5 D3-
6 D2-
7 D4+
8 D4-
6.4.4 VPN Control
A VPN connection can be established and disconnected using a key switch at input IN.
The OUT output indicates that a VPN connection exists.
The VPN Control connection is internally galvanically isolated from the power supply of the device.
1 +24 VDC ± 20 %
2 IN: +24 VDC ± 20 %, max. 16 mA
3 OUT: +24 VDC ± 20 %, max. 1 A
4 Reference potential (GND)

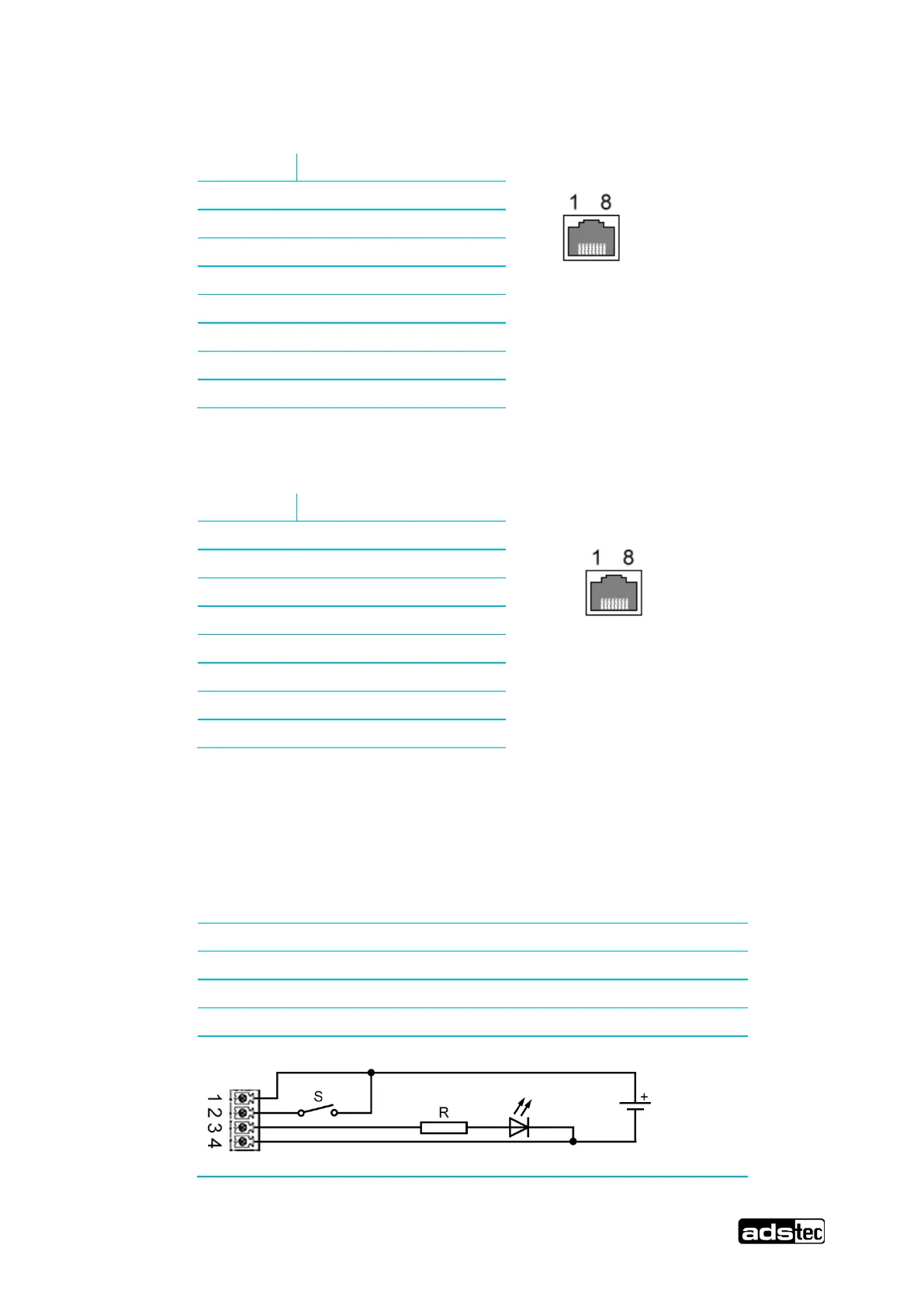

(Schematic circuit diagram, picture shows socket in device)
