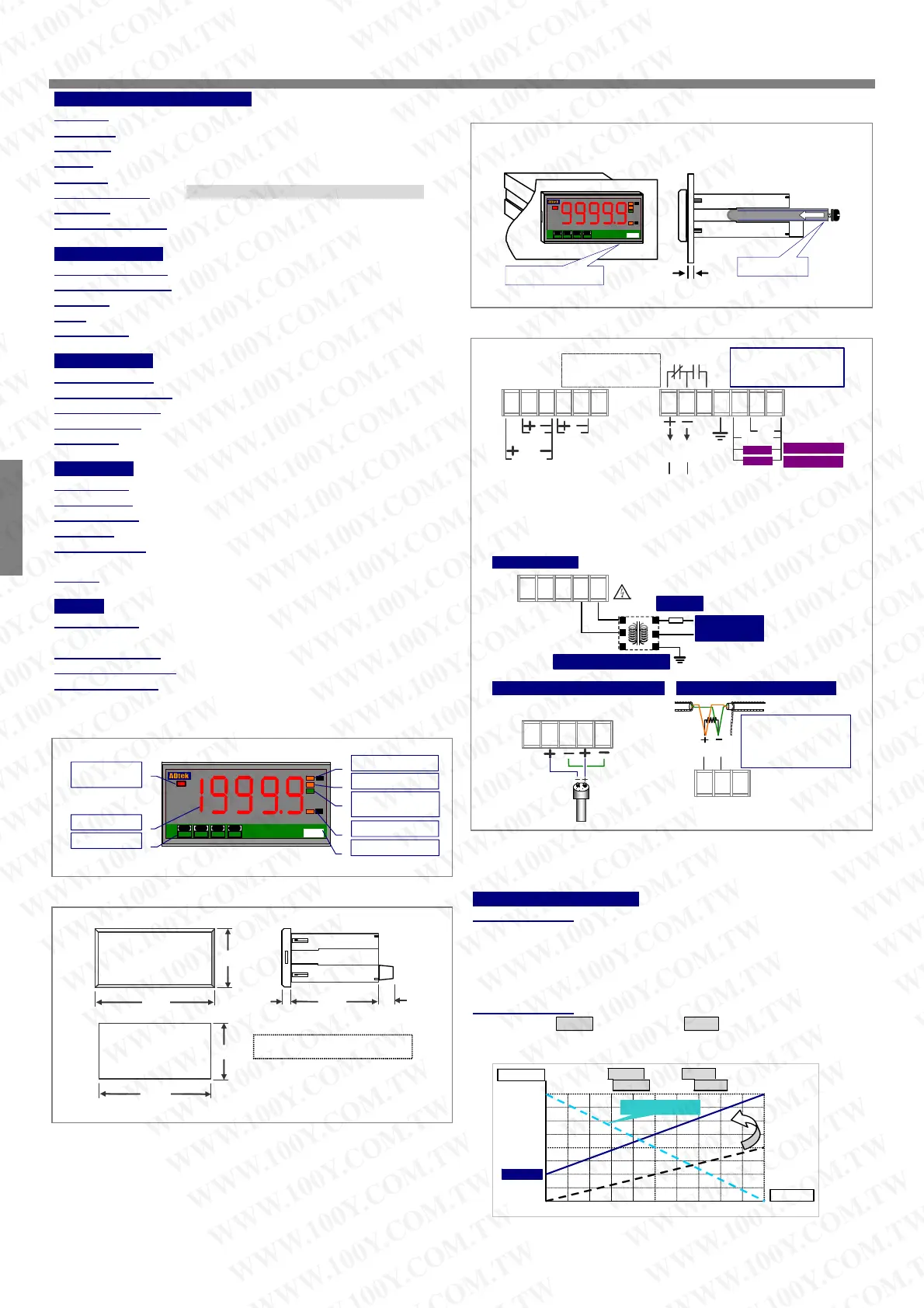

ADTEK CS1-PR - Installation; Connection Diagram; Function Description; Front Panel

To Next Page

To Previous Page

C1-01-2

7-2007-11-07

RS 485 Communication(option)

Protocol:

Modbus RTU mode

 INSTALLATION

Baud rate:

1200/2400/4800/9600/19200/38400 programmable

Data bits:

8 bits

The meter should be installed in a location that dose not exceed the

maximum operating temperature and provides good air circulation.

Parity: Even, odd or none (with 1 or 2 stop bit) programmable

Address:

1 ~ 255 programmable

Remote display:

to show the value from RS485 command of master

Distance:

1200M

Terminate resistor: 150Ω at last unit.

Electrical Safet

Dielectric strength:

C 2.0 KV for 1 min, Between Power / In

ut / Out

ut / Case

Insulation resistance:

≥100M ohm at 500Vdc, Between Power / In

ut / Out

Isolation:

Between Power / In

ut / Rela

, Analo

ue, RS485

1.0~8.0 mm

FIX HOLDER:

63 mm(L) / W M3

PANEL CU

-OUT:

+0.2

(W) x 44

+0.2

(H) mm

COM

CI1

ENT/FN

EMC:

EN 55011:2002; EN 61326:2003

Safety(LVD):

EN 61010-1:2001

 CONNECTION DIAGRAM

Environmental

Operating temp.: 0~60 ˚C

Operating humidity: 20~95 %RH, Non-condensing

Temp. coefficient: ≤100 PPM/˚C

Storage temp.: -10~70 ˚C

Enclosure: Front panel: IEC 549 (IP54); Housing: IP20

Mechanical

Dimensions:

96mm(W) x 48mm(H) x 72mm(D)

Panel cutout:

92mm(W) x 44mm(H)

11 12 14 15 13 16

SIGNAL INPUT

0~10V

0~20mA

Excit.

Supply

DC24V

7 8 9 10

5 6 4

Relay

b c a

Relay, Analogue o/p

or RS485 port can be

selected one only.

Terminal blocks:

10A/300Vac, M2.6,

1.3~2.0mm

(16~12AWG)

ADH

C/DC 86~265V

C/DC 20~90V

AC230V

AUX. POWER

AC115V

ADL

RS 485

ort

nalogue

output

Case materiel: ABS fire-resistance (UL 94V-0)

Mounting: Panel flush mounting

Terminal block: Plastic NYLON 66 (UL 94V-0)

Please check the voltage of power supplied first, and then connect

to the specified terminals. It is recommended that power supplied to

the meter be protected by a fuse or circuit breaker.

10A 300Vac, M2.6, 1.3~2.0mm

(16~12AWG)

Weight: 350g / 300g(Aux. Power Code: ADH or ADL)

Power

Power supply:

AC115/230V,50/60Hz;

Optional: AC/DC 85~264V or 20~90V(RoHS version)

Excitation supply:

DC24V/30mA maximum in standard

Power Consumption: 4.5VA maximum

Power Supply

AC115/230V

AC85~264V

Filter or Transformer

1A Fuse

6 7 9 10 8

Back up memory:

By EEPROM

 FRONT PANEL

2 wire Transmitter connection RS485 Communication Port

11 12 14 15 13

24Vdc

Excit.S

4~20mA

Input

RS485 Port

4 5 6

Max. Distance: 1200M

Terminate Resistor

(at latest unit):

120~300ohm/0.25W

(typical: 150ohm)

I11

ENT/FN

M.H

Comm. status

Relay status

Indication

Operation Key

Front Key

function status

Engineer Unit

Display screen

Max. Hold status

Mini. Hold status

 FUNCTION DESCRIPTION

 DIMENSIONS

Input & Scaling Functions

Dual input types: (Option Code: AV)

Voltage and Current Type are in one unit available in option. If the

customer specify the input coding for AV, the meter will be calibrated for

0~10V and 0~20mA in factory. The user can use in 0~10V or4(0)~20mA

by difference terminals connection(#11 & #13 for 0~10V or #12 & #13 for

4(0)~20mA) and programming in 【Ai.tYP】of【inPUt GroUP】.

Scaling function:

Setting the Lo.SC(Low scale) and Hi.SC(High scale) in【inPUt

GroUP】to relative input signal. Reverse scaling will be done too.

Please refer to the figure as below,

96.0

48.0

92.0

+0.2

44.0

+0.2

PANEL CUT-OUT

FRONT VIEW

Unit: mm

8.0

12.0

60.0

Dimensions: 96mm x 48mm x 72mm

Panel Cutout: 93mm x 45mm (advise)

SCALE

Default: Lo.SC: 0.00, Hi.SC: 100.00

Change to Lo.SC: 50.00, Hi.SC: 199.99

INPUT

0.00

199.99

0.00%

100.00%50.00%

100.00

50.00

Reverse slop

*Too narrow scale may course display lower resolution.

CSM-321S

CS2-

CSM-321S CSM-CSM-

CS1-PR

CSM-321S CSM-CSM-

CSM-321S CSM-

CSM-321S
