C1-01-5

7-2007-11-07

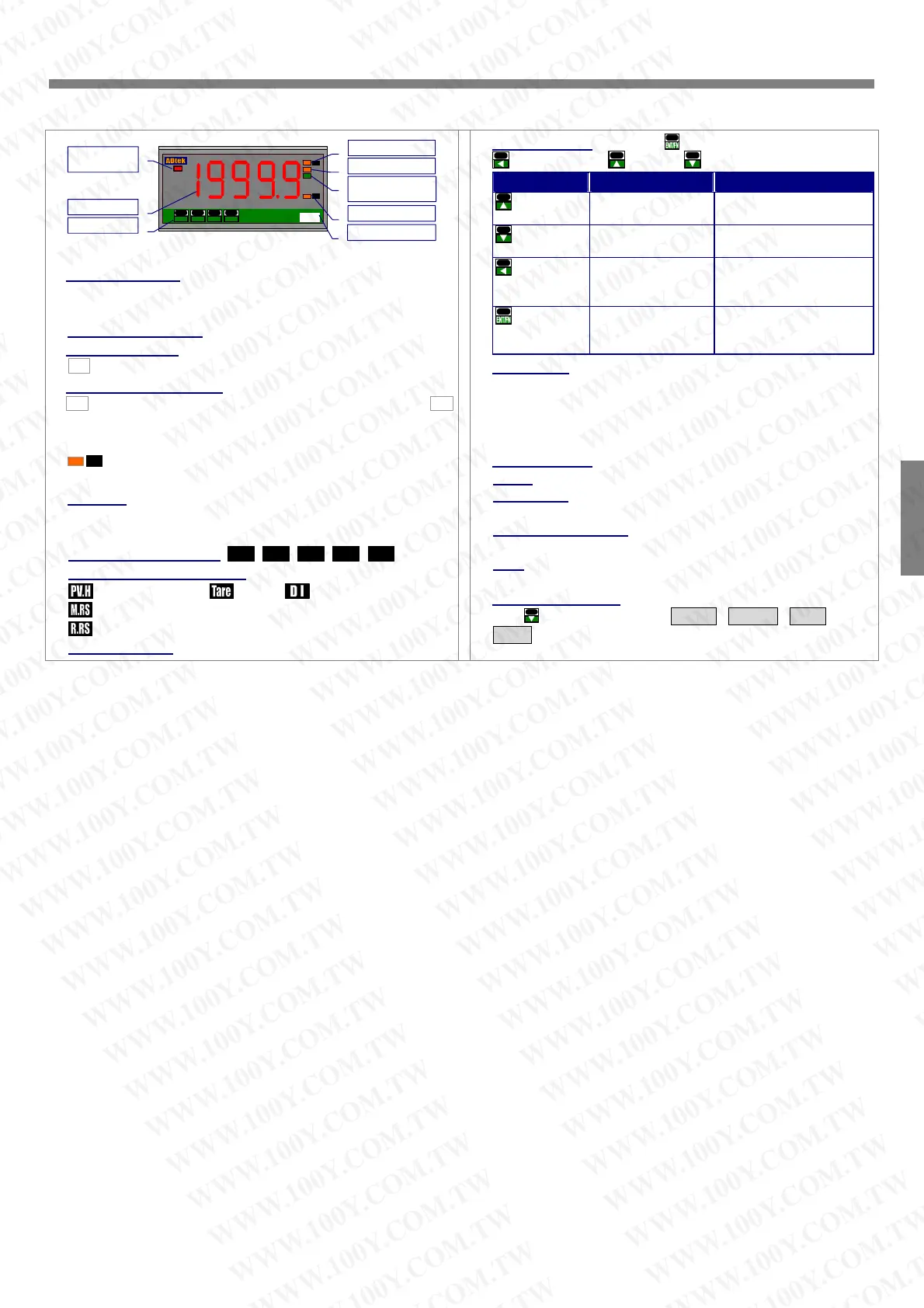

 FRONT PANEL:

I11

ENT/FN

Comm. status

Relay status

Indication

Operation Key

Front Key

function status

Engineer Unit

Display screen

M.H

Max. Hold status

M.H

Mini. Hold status

 Numeric Screens

0.8”(20.0mm) red high-brightness LED for 5 digital present

value.

 I/O Status Indication

z Relay Energized: 1 square red LED

RL1

display when Relay 1 energized;

z RS485 Communication:

1 square orange LED

will flash when the meter is receive or send data, and

flash quickly means the data transient quicker.

z Max/Mini Hold indication: 2 square orange LEDs

M.H

displayed: When the display function has been selected

in Maximum or Minimum Hold function.

 Stickers:

Each meter has a sticker what are functions and engineer

label enclosure.

z Relay energized mode:

H i

z Down key functions mode:

PV.H(PV Hold) /

Tare /

DI(Digital Input)

M.RS(Maximum or Minimum Reset) /

R.RS(Reset for Relay Latch)

z Engineer Label:

over 80 types.

 Operating Key: 4 keys for

Enter(Function) /

Shift(Escape) /

Up key /

Down key

Setting Status Function Index

Up key

Increase number Go back to previous

function index

Down key

Decrease number Go to next

function index

Shift key

Shift the setting

position

Go back to this function

index, and abort the

setting

Enter/Fun

key

Setting Confirmed

and save to

EEProm

From the function index

to get into setting status

 Pass Word: Settable range:0000~9999;

User has to key in the right pass word so that get into

【Programming Level】. Otherwise, the meter will go back to

measuring page. If user forgets the password, please contact

with the service window.

 Function Lock: There are 4 levels programmable.

z None: no lock all.

z User Level: User Level lock. User can get into User Level for

checking but setting.

z Programming Level:

Programming level lock. User can get

into programming level for checking but setting.

z ALL:

All lock. User can get into all level for checking but

setting.

 Front Key Function

z The

Key can be set to be rEL.Pv / Pv.HLd / M.rSt /

rY.rSt programmable.
