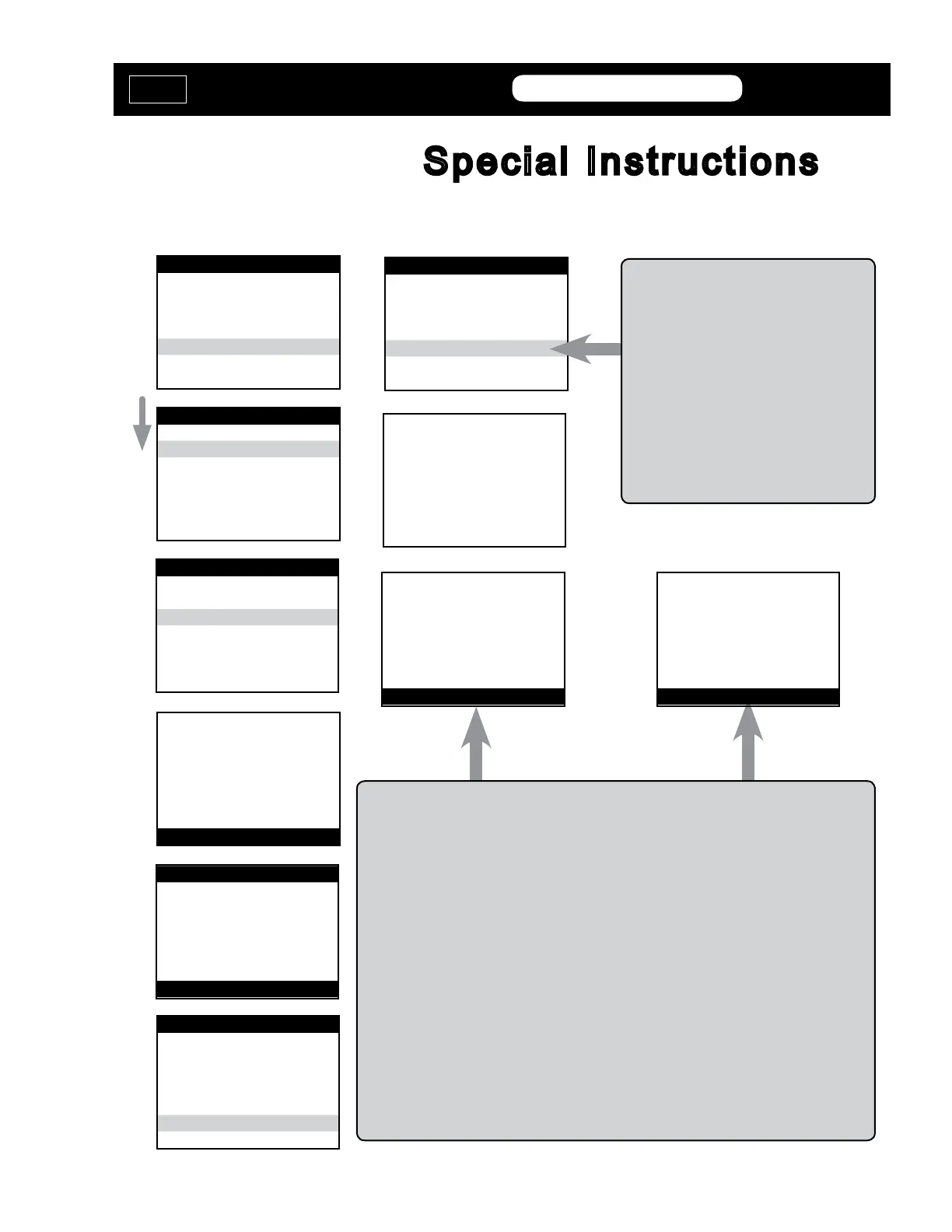

Prius ‘04-’09 Special Instructions
VEHICLE SELECTION
MITSUBISHI
NISSAN
SUZUKI
> TOYOTA
V.W./AUDI GROUP
VEHICLE SELECTION
> Immobilizer
REMOTE
SWITCH IGNITION ON
IGNORE THIS STEP
PLACE A PROX IN THE
SLOT
PRESS ENTER KEY
DIAGNOSTIC MENU
ECU IDENTIFICATION
FAULT CODES
LIVE DATA
ACTUATORS
> SPECIAL FUNCTIONS
DIAGNOSTIC MENU
RESET Immobilizer
PROGRAM KEY
ERASE KEYS
> QUICK RESET Immobilizer
TRYING TO COMMUNICATE
RESET Immobilizer
PROCEDURE COMPLETE
PRESS ENTER KEY
WARNING! USE ONLY THE “M”
DONGLE!
QUICK RESET IMMOBILIZER
This will RESET the immobilizer and place
the system in “AUTO LEARN MODE”
within just seconds.
WATCH THE SECURITY LIGHT!
Most of the time you will see PROCEDURE COMPLETE message on the tester.
However, sometimes the car does not signal the tester that the immobilizer has been
reset and you may see COMMUNICATION FAILED on the screen.
DO NOT WATCH THE TESTER,
WATCH THE CARS SECURITY LIGHT!
Auto Learn mode is indicated by the steady illumination of the Security Light.
Once you see a solid immo light. Insert each FOB you want to program into the learning
slot but do not turn the ignition ON - remove after 5 seconds. The vehicle may learn up to
2 Fobs keys before the Auto Learn cycle is shut down.
If you only want to program just 1 Fob You can close the cycle early by pressing
Start/Stop button On & OFF numerous times, very fast until the theft light goes out..
Remove the key and re-insert it and the Security Lite should be out when there is a
programmed key in the slot.
STEP #1 if you have no Working Prox Fobs
RESET Immobilizer
COMMUNICATION FAILED
PRESS ENTER KEY
VEHICLE SELECTION
TYPE 1
> TYPE 2
TYPE 3
TYPE 4
TYPE 5
ECU IDENTIFICATION
TOYOTA/LEXUS TYPE 2
PRESS ENTER KEY
OR
Both are OK
MVP &
TCODE
TOYOTA
ADVANCED DIAGNOSTICS USA
powered
by
