2.5.2.4 Deep Enclosure

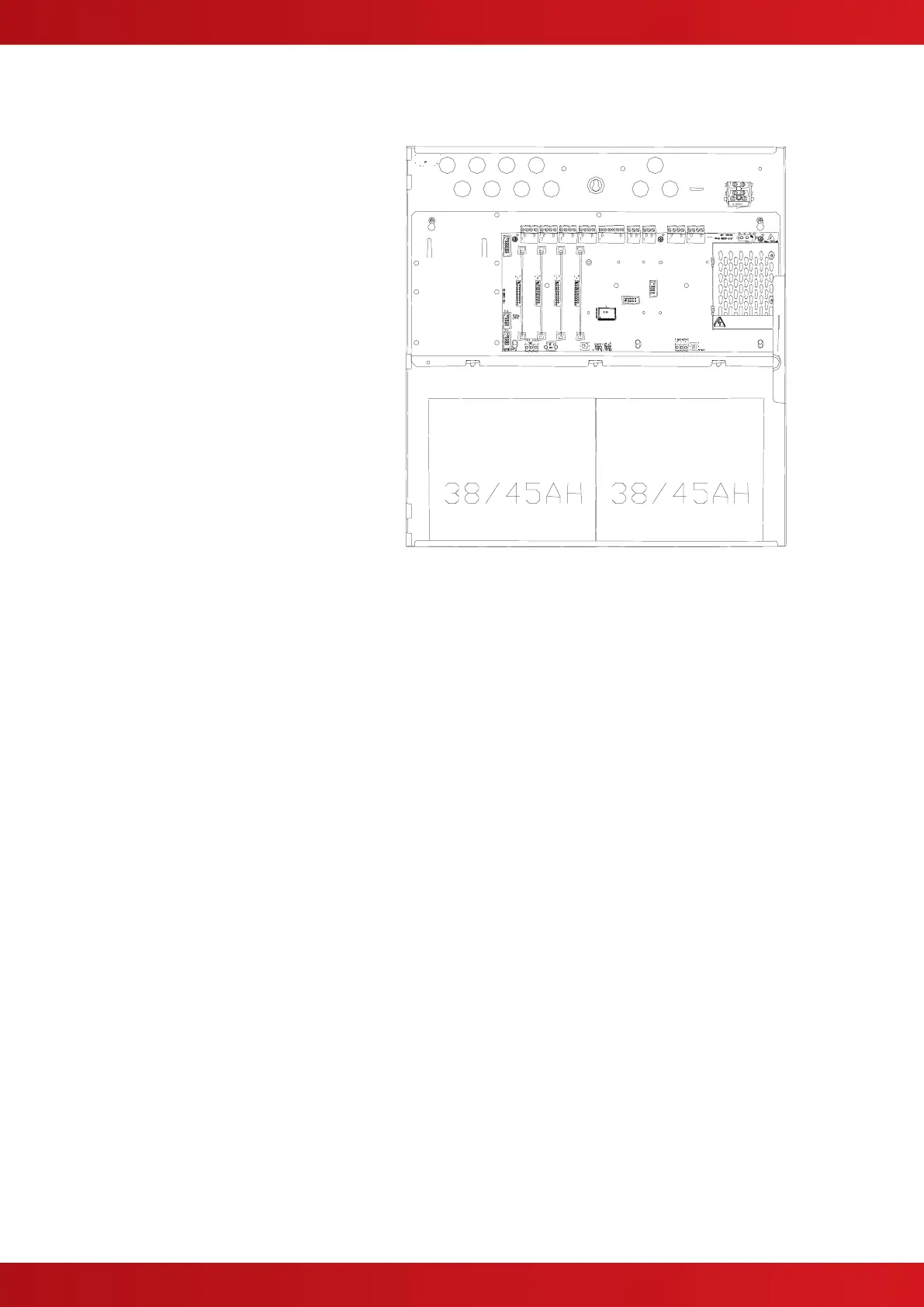

The diagrams opposite show the
recommended location and orientation
for 7Ah – 38AH/45AH batteries within the
panel.
