Advanced MxPro5 5000 Series User Manual

12

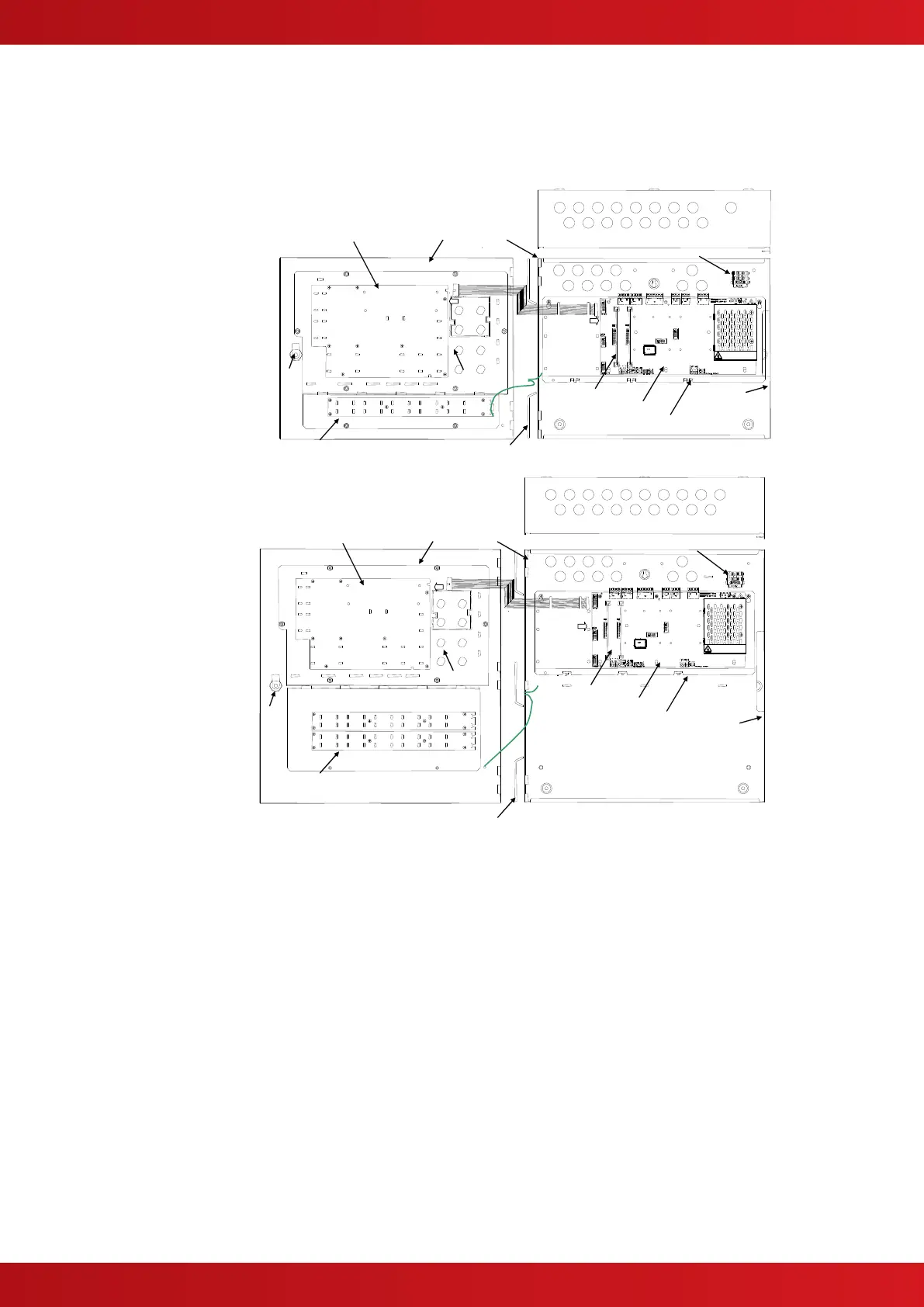

2.1.2 5200
/M Enclosure
comprises:
Back Box
Base Card with 2x Loop
Drivers mounted onto a
Chassis Plate
Door with Display Card
mounted onto a fascia
plate. Key-Lock.
Option for eight key-
switches or four key-
switches and a printer.
Option for a 50-Zone
LED card.
WARNING:
HIGH VOLTAGE INSIDE
DO NOT REMOVE COVER
No Serviceable Parts Inside
Display
Loop Drivers 1-2
Base Card
Chassis
Door
Back box
Hinge Pin
Display
Cable
AC Input
Optional Zone
LED Card
Optional Key
Switches
Door
Lock
Ratings Label
/L, /D Enclosures
comprises:
Back Box
Base Card with 2x Loop
Drivers mounted onto a
Chassis Plate
Door with Display Card
mounted onto a fascia
plate. Key-Lock.
Option for eight key-
switches or four key-
switches and a printer.
Option for two 50-Zone
LED cards.
The deep (/D)
enclosure arrangement
is identical.
WARNING:
HIGH VOLTAGE INSIDE
DO NOT REMOVE COVER
No Serviceable Parts Inside
Display
Loop Drivers 1-2
Base Card
Chassis
Door
Back box
Hinge Pin
AC Input
Optional Zone
LED Cards
Optional Key
Switches
Door
Lock
Display
Cable
Ratings Label
