2 Installation
2.1 Identification of Parts

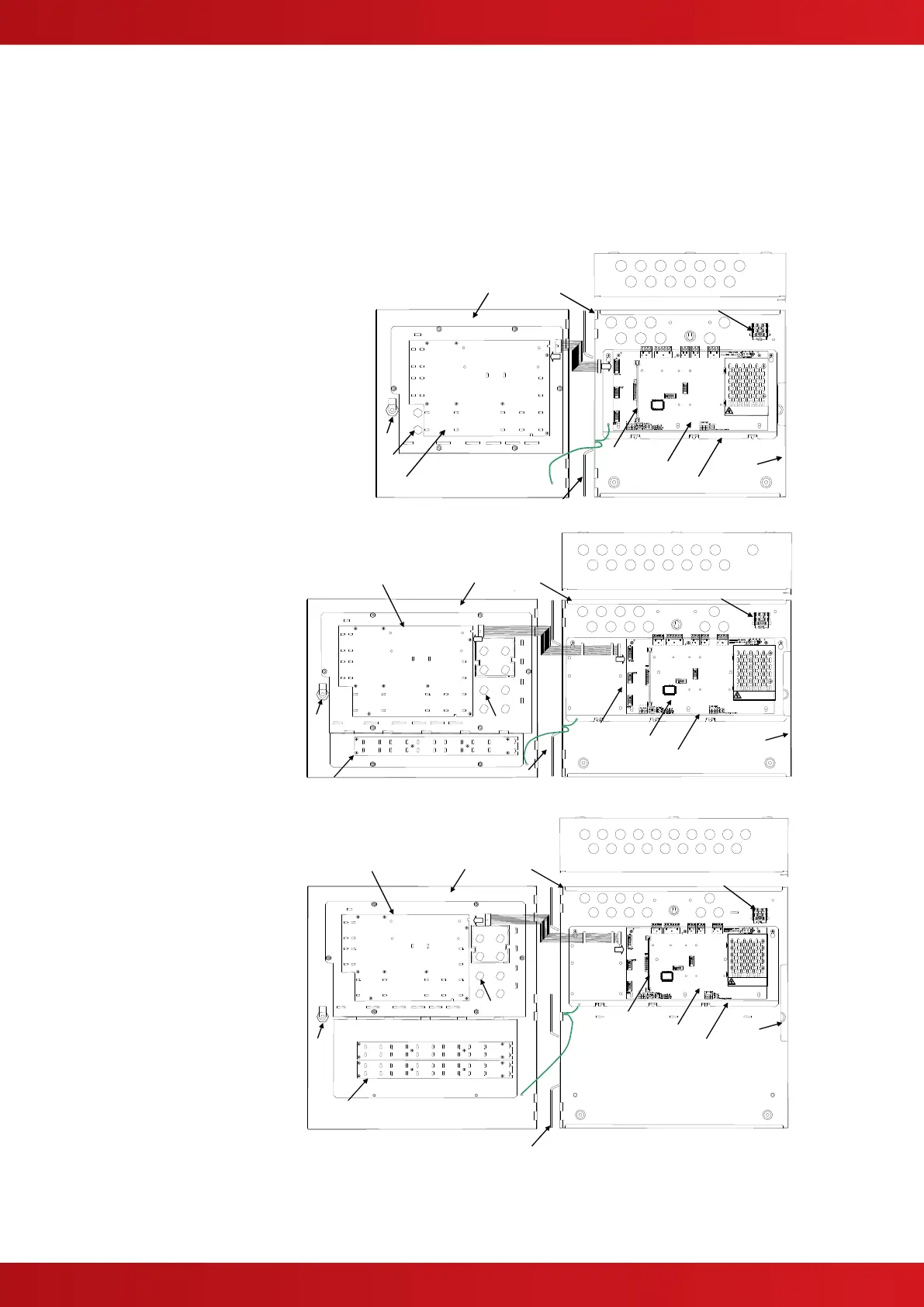

The following diagrams show the major parts of the panels.
2.1.1 5100
/S Enclosure comprises:
Back Box
Base Card with 1x Loop
Driver mounted onto a
Chassis Plate
Door with Display Card
mounted onto a fascia
plate. Key-Lock.
Option for one key-switch.
WARNING:
HIGH VOLTAGE INSIDE
DO NOT REMOVE COVER
No Serviceable Parts Inside
Display
Loop Driver
Base Card
Chassis
Door
Back box
Hinge Pin
Display
Cable
AC Input
Optional Key
Switches
Door
Lock
Ratings Label
/M Enclosure comprises:
Back Box
Base Card with 1x Loop
Driver mounted onto a
Chassis Plate
Door with Display Card
mounted onto a fascia
plate. Key-Lock.
Option for eight key-
switches or four key-
switches and a printer.
Option for a 50-Zone LED
card.
WARNING:
HIGH VOLTAGE INSIDE
DO NOT REMOVE COVER
No Serviceable Parts Inside
Display
Loop Driver
Base Card
Chassis
Door
Back box
Hinge Pin
Display
Cable
AC Input
Optional Zone
LED Card
Optional Key
Switches
Door
Lock
Ratings Label
/L Enclosure comprises:
Back Box
Base Card with 1x Loop
Driver mounted onto a
Chassis Plate
Door with Display Card
mounted onto a fascia
plate. Key-Lock.
Option for eight key-
switches or four key-
switches and a printer.
Option for two 50-Zone
LED cards.
WARNING:
HIGH VOLTAGE INSID E
DO NOT REMOVE C OVER
No Serviceable Parts Insid e
Display
Loop Driver
Base Card
Chassis
Door
Back box
Hinge Pin
AC Input
Optional Zone
LED Cards
Optional Key
Switches
Door
Lock
Display
Cable
Ratings Label
