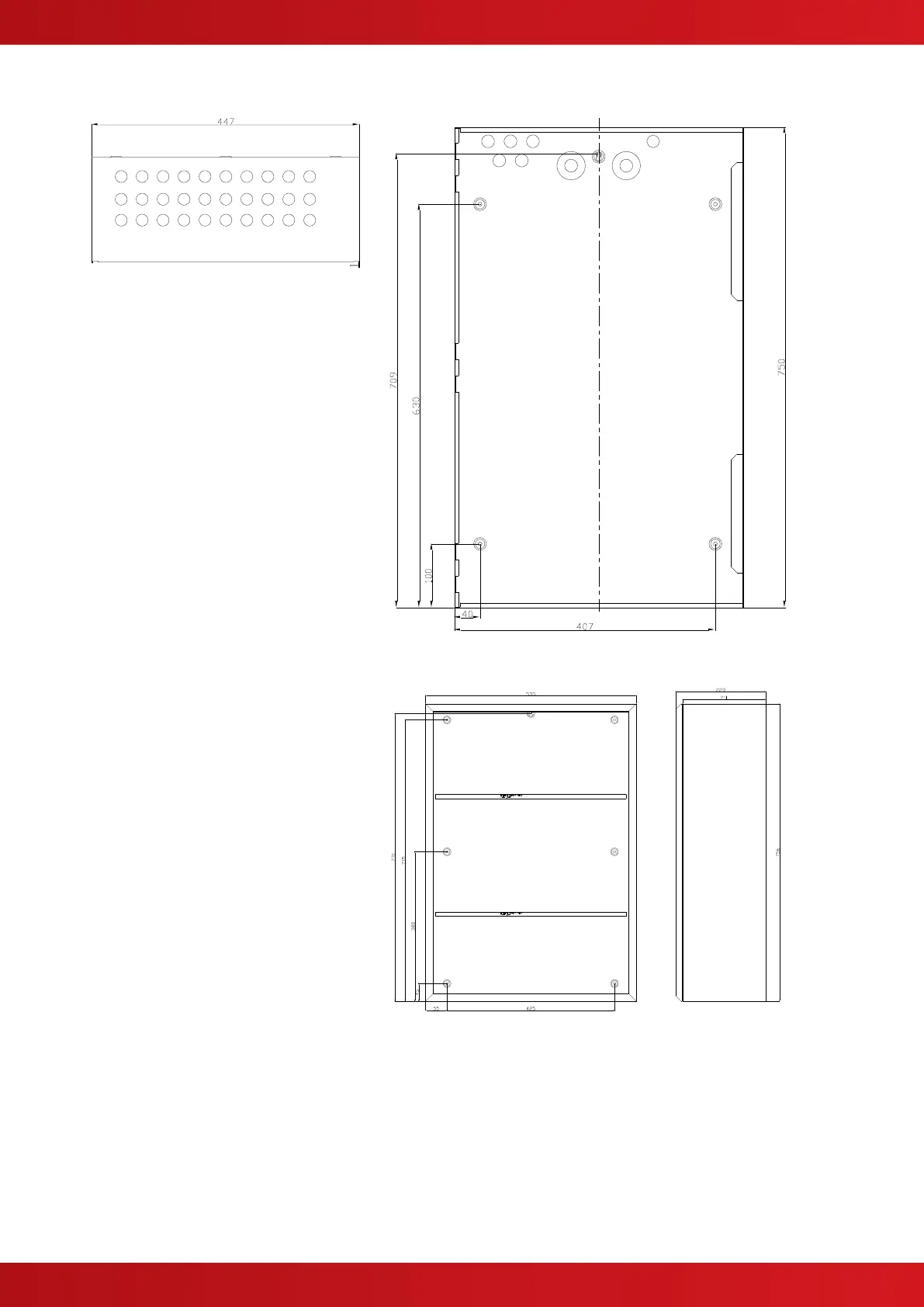

(/E Enclosure Size and knockouts (top)

(/E) Enclosure Size and Fixing Point Dimensions

MXM-510-16U Enclosure Size and Fixing Point Dimensions

2.2.4 Remounting the Chassis

Carefully replace the chassis and fix into place using the two screws.

Reconnect the chassis earth cable to the spade terminal in the rear of the enclosure, reconnect the display

cable to the display card and then reconnect the AC supply lead to the Base Card.
