Advaning C Series - Secure Arm Before Removal; Installing the New Arm; Insert New Arm Shoulder; Secure Shoulder with Bolt

www.advaning.com Toll Free (US): (855) 574-0158
6.B
Our team prides itself on quality in product and service.
Should you have any concerns or questions, do not hesitate to reach us at service@advaning.com.

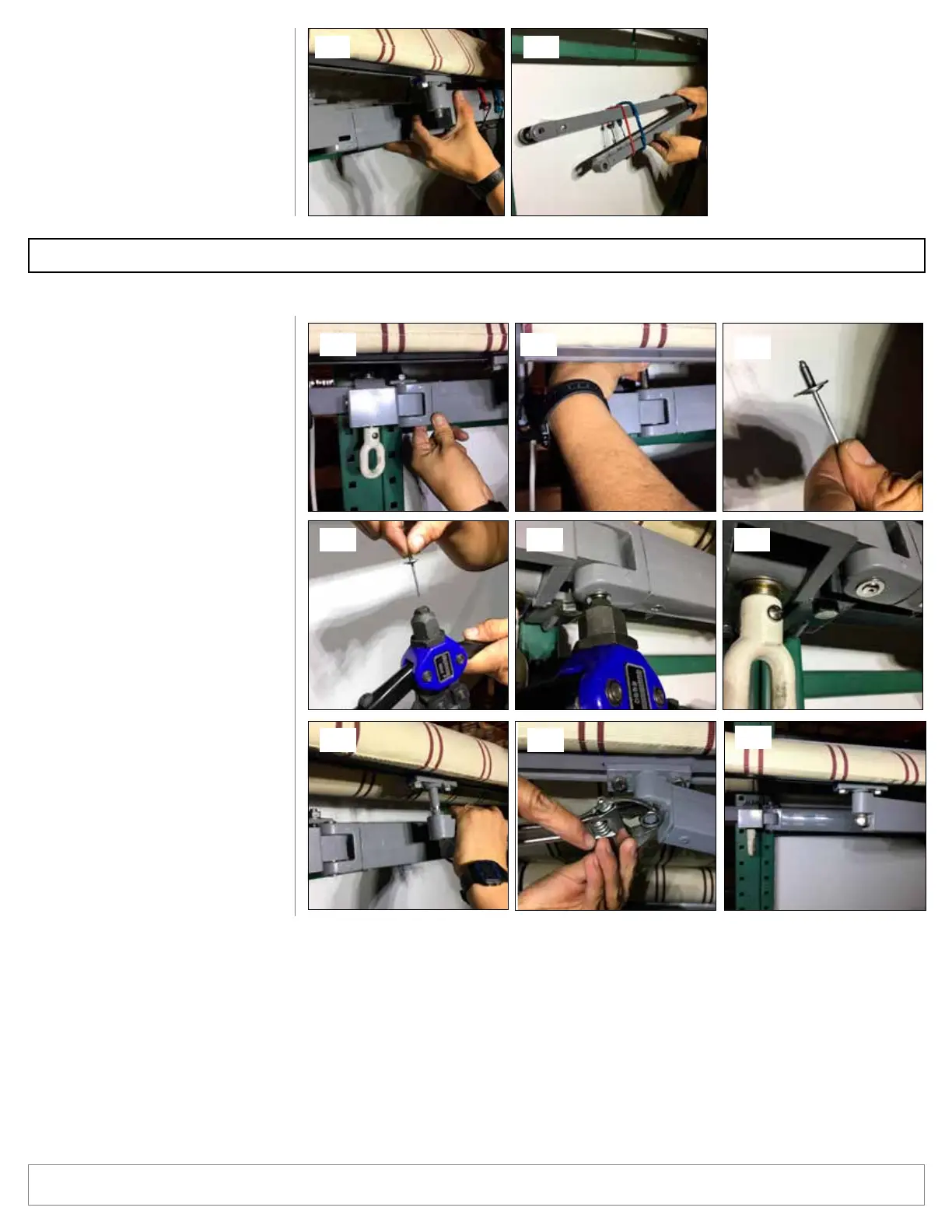

1. Insert the new arm
shoulder into the existing
Easy Pitch mechanism.
2. Insert the new bolt
securing the arm shoulder
to Easy Pitch mechanism.
3. Combine the new shim
and the new rivet.
4. Insert shim and rivet into
riveter.
5. Using the riveter, install
the shim and rivet into the
arm shoulder.
6. Insert the arm tip to
front bar connection
and securely tighten the
locking nut on the arm tip.
7. Inspect the arm shoulder
and arm tip connection,
and remove the tie before
test operation.
5. Remove the existing arm.
Note: Ensure that the
existing arm is securely
tied before removing
to prevent the spring
mechanism from
activating.
INSTALLING THE NEW ARM
1
3
4 5.A 5.B
6.A
7
2
5.A 5.B
Note: DO NOT REMOVE the tie down on new arm until the arm is securely fastened to the awning.
Additional Notes:
• It is recommended to properly lubricate the new arm before operating. Lubricating instruction are
available at www.advaning.com/kcnder/upload/les/Lubricating_instruction.pdf.
• While replacing the arm, the pitch of the awning may move and will sometimes require adjustment.
• Electric Models: Please ensure that you test the new arm function and pitch manually 3-5 times
before connecting to power source.
