Chapter 3
Chapter 3 I/O Modules 3-9

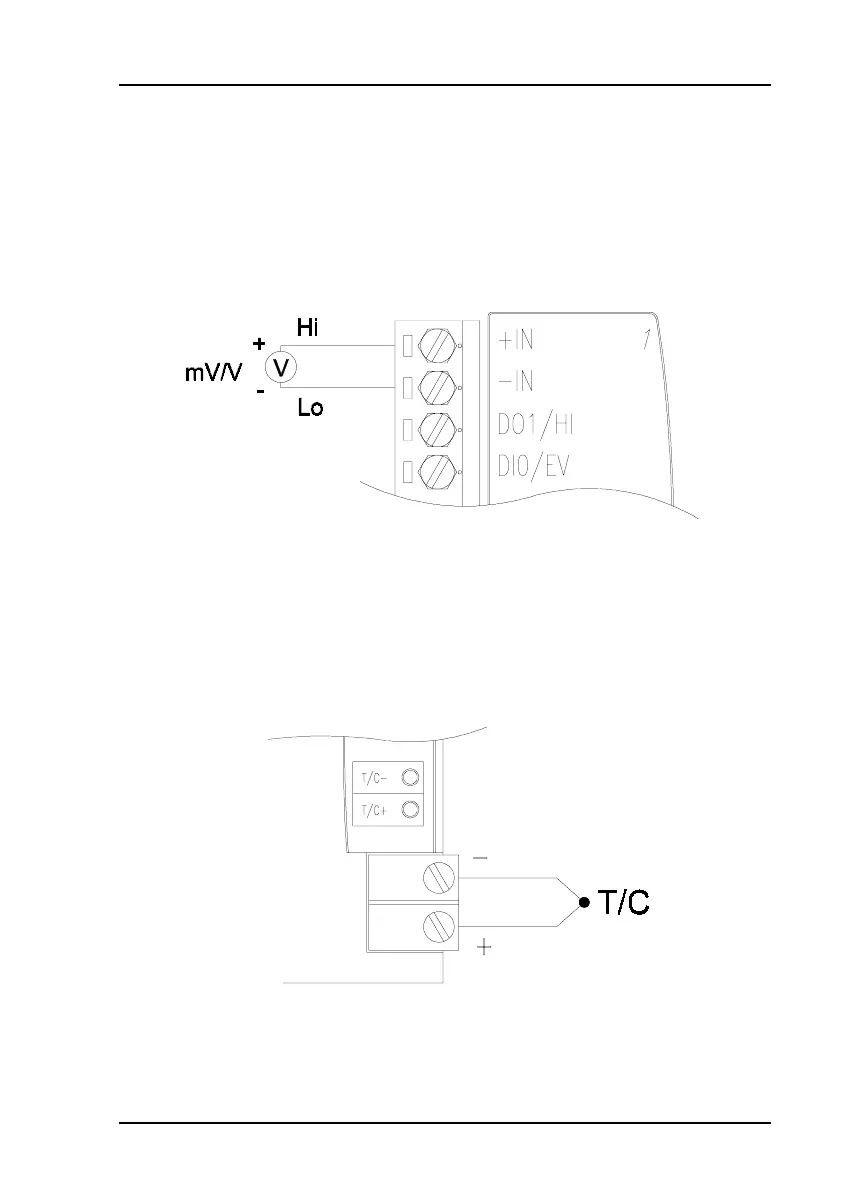

Figure 3-5
Millivolt and Volt Input
Figure 3-6
Thermocouple Input
Application Wiring
The following gives you examples how to connect various types of analog
inpuit and high-low alarm applications to your ADAM modules.
