Chapter 3
Chapter 3 I/O Modules 3-17
ADAM-4016

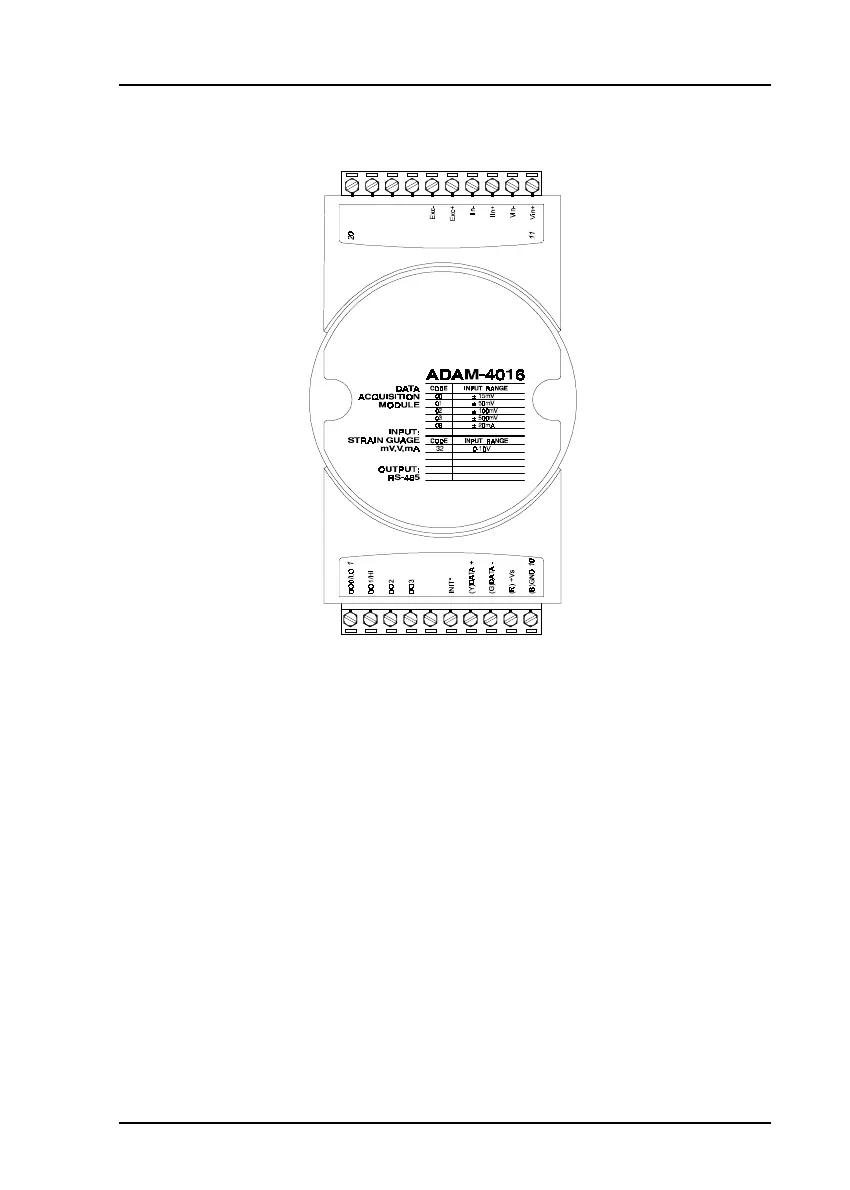

Figure 3-12 ADAM-4016 Analog Input/Output Module
Accepts:
- millivolt inputs: ±15 mV, ±50 mV, ±100 mV, ±500 mV Strain Gauge
- Current input: ±20 mA
- Excitation voltage output: 0 ~ 10 V
Four digital output channels are provided.
Depending on the module’s configuration setting, it can forward the data to
the host computer in one of the following formats:
- engineering units (mV or mA)
- percent of full-scale range (FSR)
- twos complement hexadecimal
