ADAM-4570 Series User Manual 16
2.2.3 Power Connection
You should take the following steps to connect ADAM-4570 series
power.
1. Connect the power cable to 2-pin connector
2. Connect power cable to power adapter

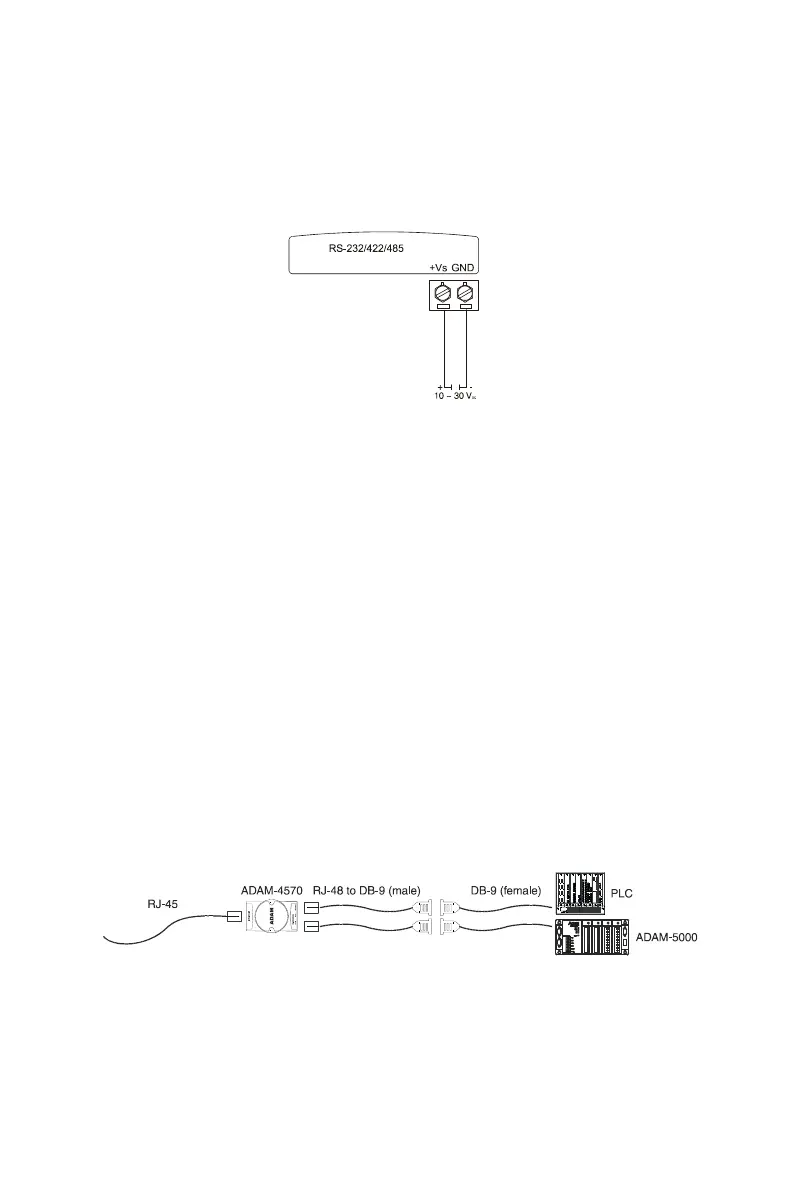

Figure 2.8: Power Connection
If the ADAM-4570 Series is working properly, the green power LED will
light up, indicating that the ADAM-4570 Series is receiving power.
2.2.4 Serial Connection
The model of the ADAM-4570 Series that you purchased has RJ-48
serial ports or DB-9 male connector on the bottom of module. Depending
on your serial device and serial interfaces, there are two options:
1. For an RS-232/422/485 port you may use a RJ-48 to DB-9 cable
which we supply to connect your serial device to the ADAM-4570/
4570L. Simply plug one end of the cable into the jack, and plug the
other end into the serial port jack on your serial device.
2. Refer to the following table for details on serial cable RJ-48 to DB-9
pinouts.
Figure 2.9: Serial Connection
To Next Page
