3.3 Setting Ethernet Parameters
This section explains how to configure the ADAM-4570 series network
using this utility so that it can communicate over a network with serial
devices.

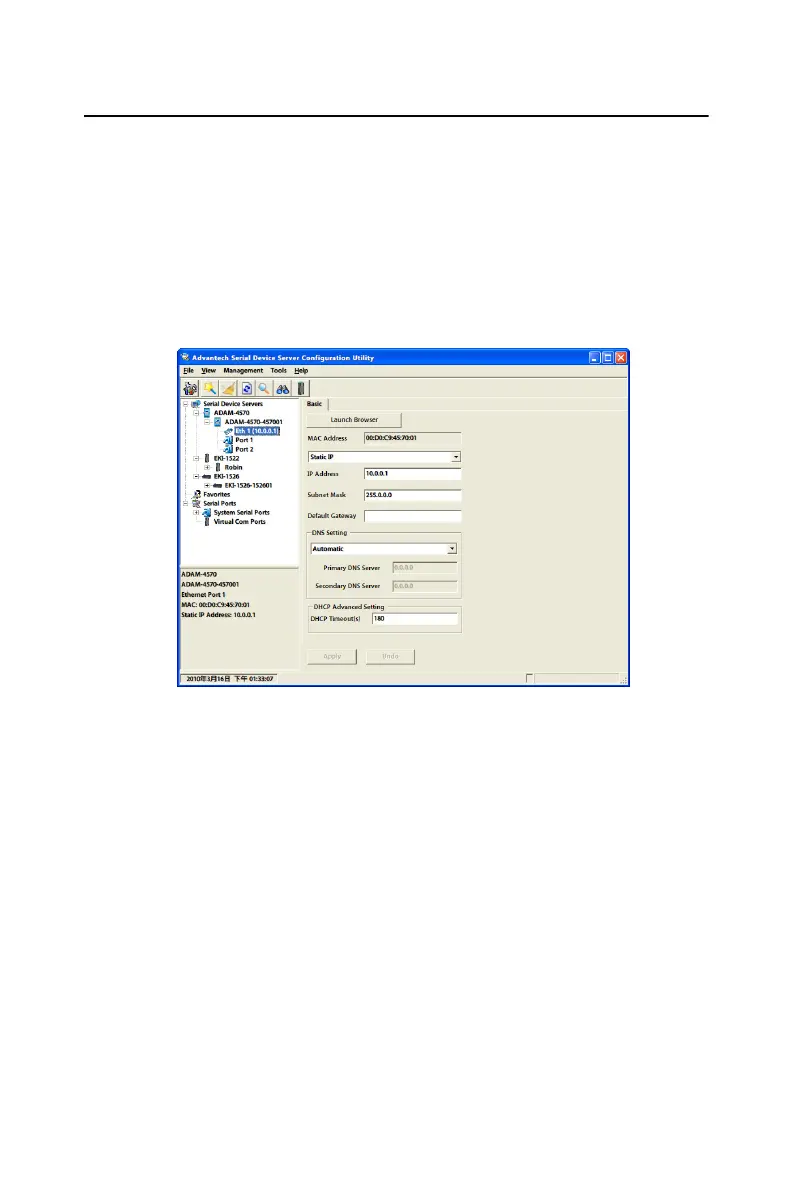

Click on the "+" before the model name (e.g. ADAM-4570), and the util-
ity will expand the tree structure to show the individual device name. And
click on the “+” before the device name, and the utility will expand the
interfaces on this device server. Select the Ethernet interface (Eth1).
MAC Address:
The MAC address is for the local system to identify and locate each serial
device servers. This MAC address is already set before delivery from fac-
tory, hence no need for further configuration.
IP Address, Subnet Mask, Default Gateway:
The IP address identifies your Advantech serial device server on the glo-
bal network. Each ADAM-4570 series has the same default IP address
10.0.0.1. Obtain these specific IP addresses from your network adminis-
trator and then configure each Advantech serial device server with indi-
vidual IP addresses, related Subnet Mask and Gateway Setting.
You can choose from four possible IP configure modes: Static, DHCP,
BOOTP, and DHCP/BOOTP.
