ICR-3241
1.8 Product Dimensions
For the dimensions of the product in metal and plastic boxes see the figures below. Note
that all sizes are measured in millimeters.

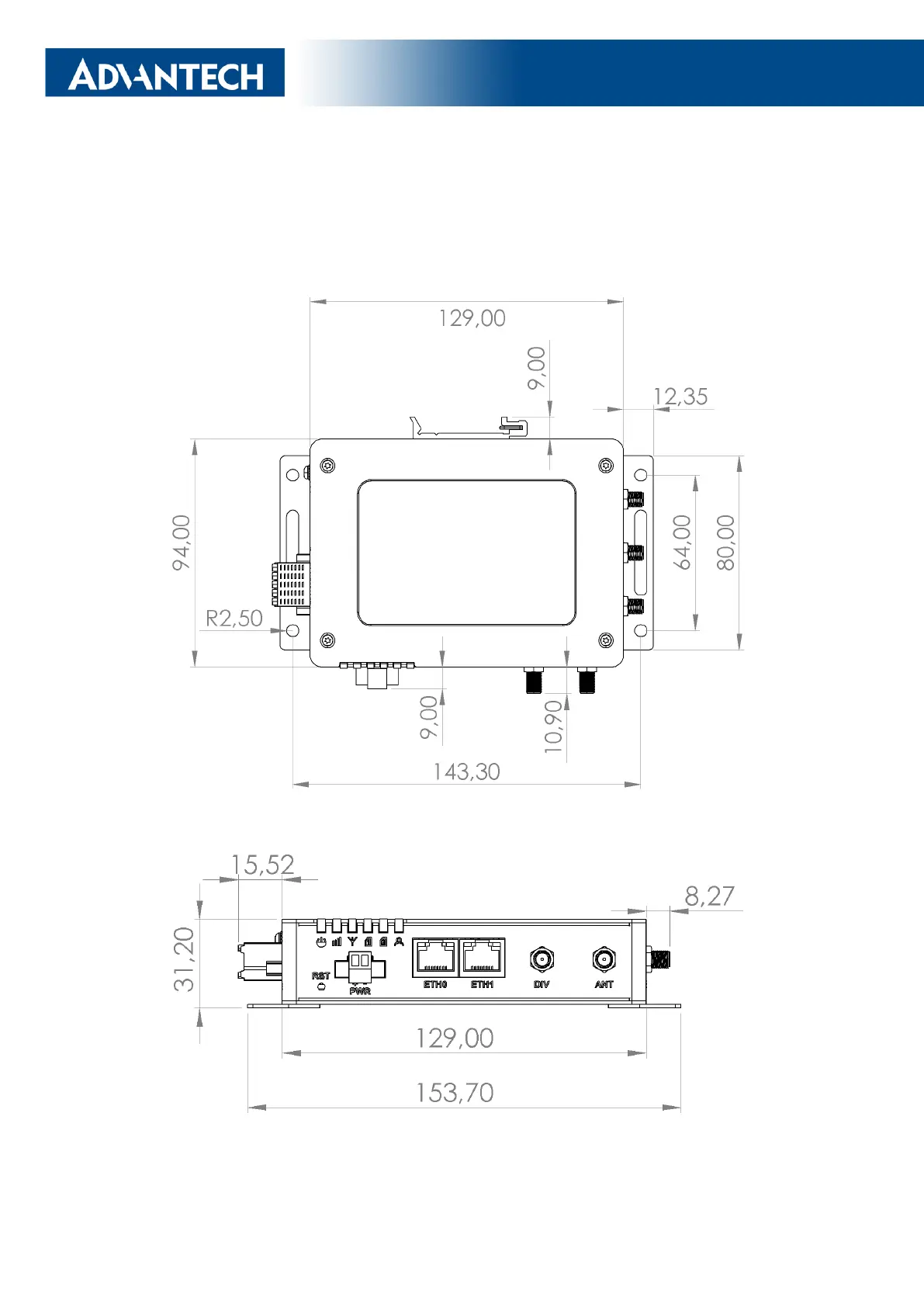

Figure 8: Basic dimensions of the router box
Figure 9: Basic dimensions of the router box
9
