Advantech IPC-610 - 1.3 Dimensions

2 IPC-610 User's Manual
Environmental Specifications
• Operating temperature: 0 ~ 50° C (32 ~ 122° F)
• Relative humidity: 10 ~ 95% @ 40° C, non-condensing
• Vibration (operating): 5 ~ 17 Hz, 0.1" double amplitude displacement; 17 ~ 500 Hz, 1.5 g
acceleration peak to peak
• Shock (operating): 10 g acceleration peak (11 ms duration)
• Safety: C-UL approved
• EMI: Meets FCC/VDE Class A
• CE compliant
1.3 Dimensions

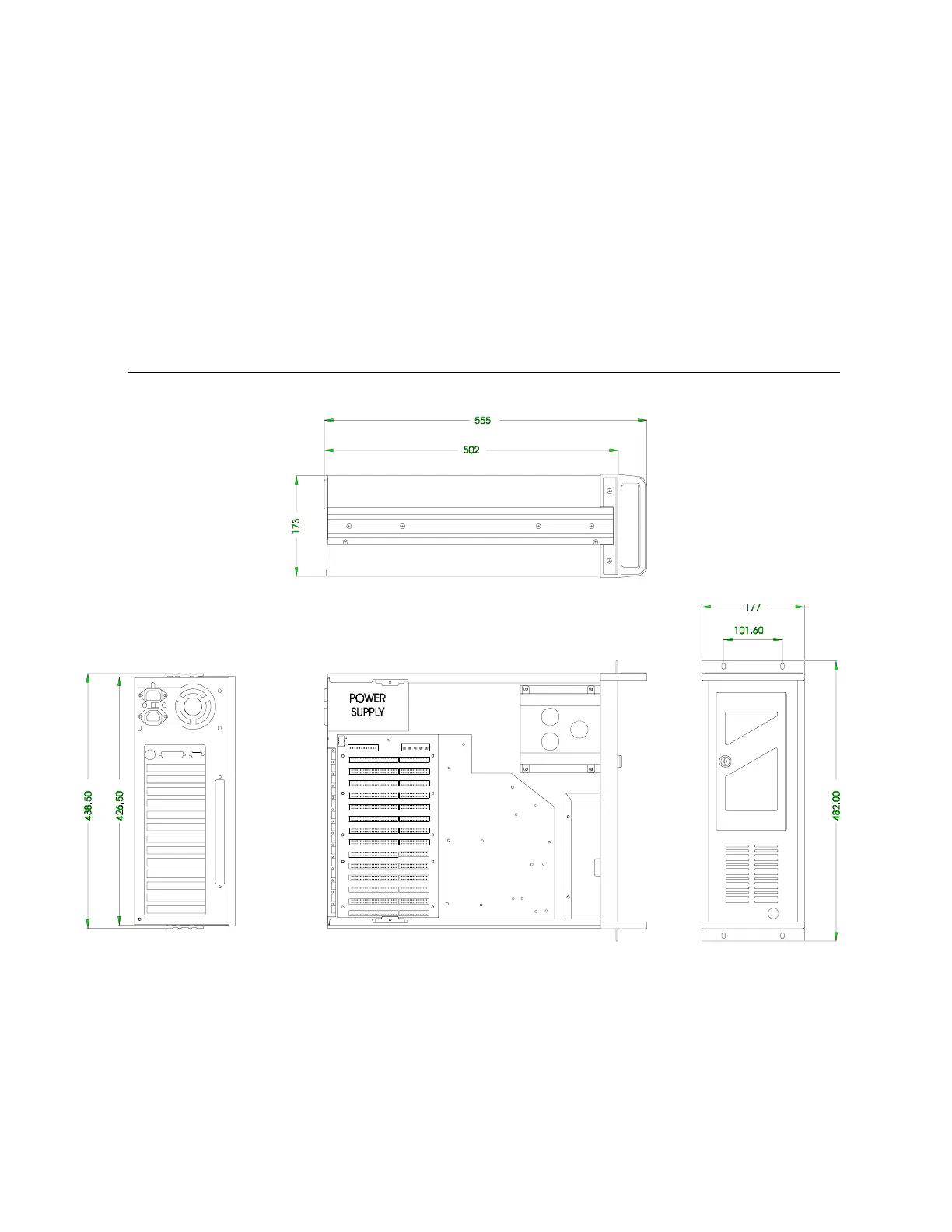

Figure 1-1: IPC-610 dimensions
Unit = mm
