9 MIO-5251 User Manual
Chapter 2 Installation
2.3 Locating Connectors

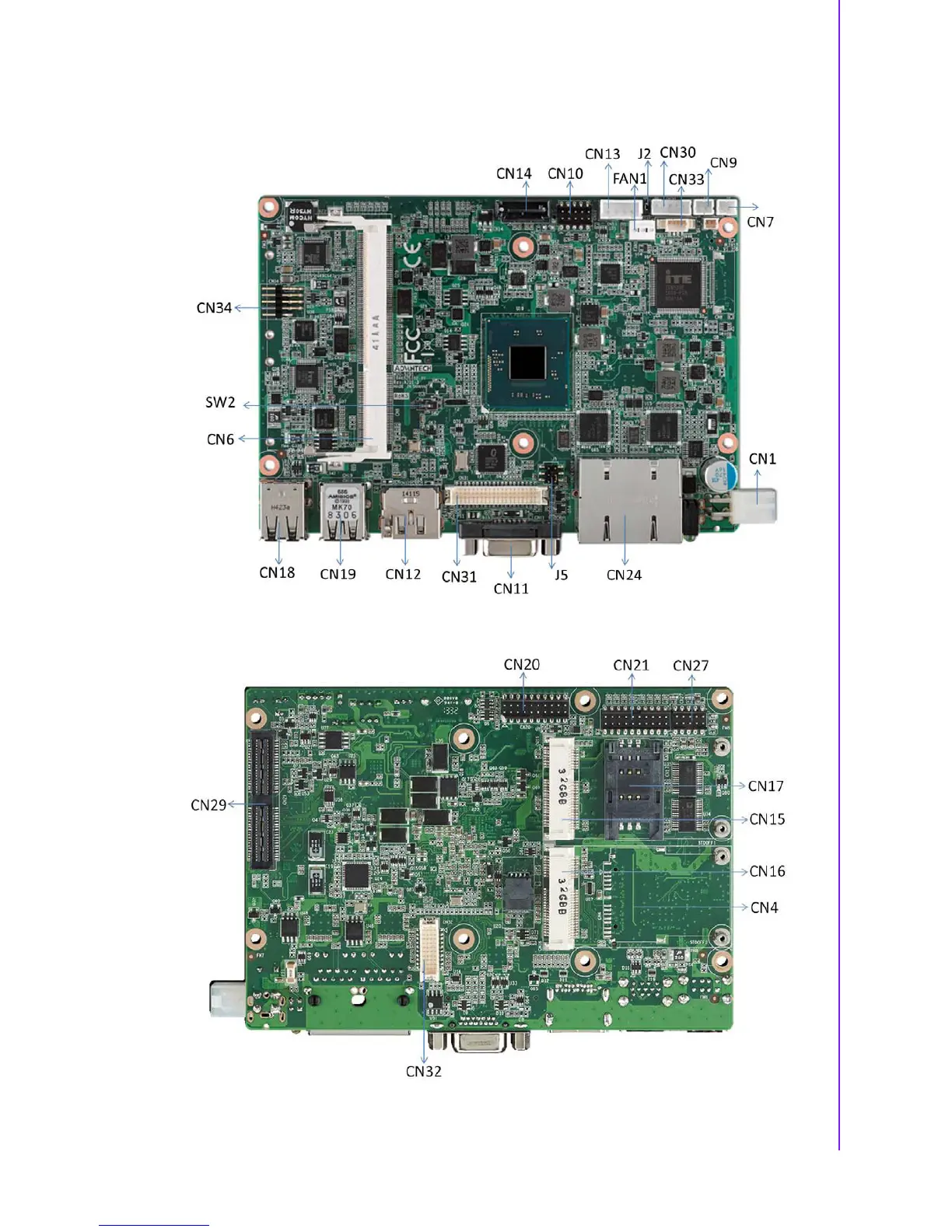

Figure 2.1 MIO-5251 Connector Locations (Top Side)
Figure 2.2 MIO-5251 Connector Locations (Bottom Side)
