Advantech MIO-5251 - A.2 Connector Pin Definition

43 MIO-5251 User Manual
Appendix A Pin Assignments
A.2 Connector Pin Definition

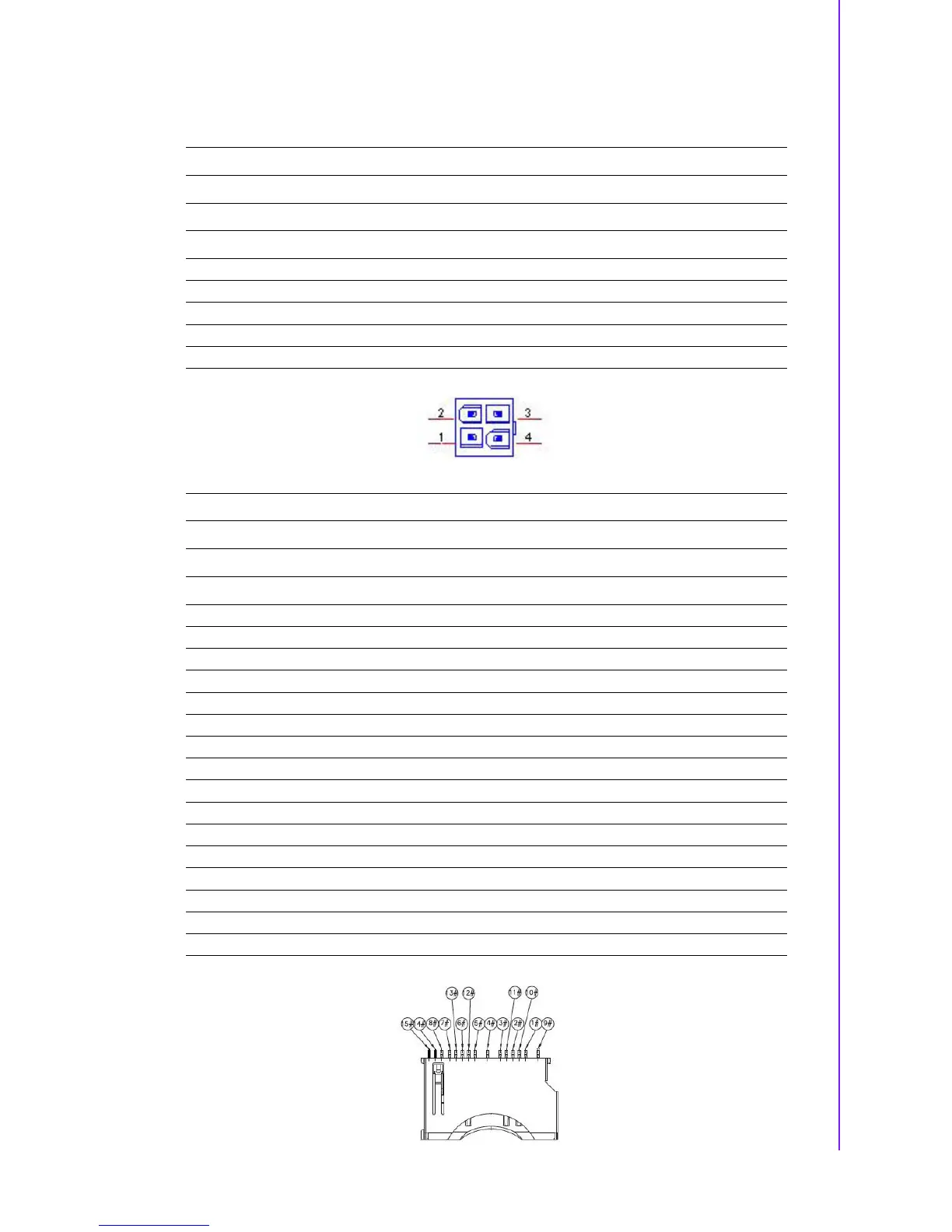

CN1 12V Power Input
Part Number 1655003865
Footprint WF_2x2P_165_BOX_RA_D_740SP
Description ATX PWRCONN 2x2P 4.2mm 90D(M) DIP 740-77-04TS50
Pin Pin Name
1GND
2GND
3+12V
4+12V
CN4 SD Card
Part Number 1654010952-01
Footprint SDCARD_15P_SDC5-15M1-KNM0-0
Description SD Card 15P SMD G/F SDC5-15M1-KNM0-01
Pin Pin Name
1DAT3
2CMD
3 VSS1
4VDD
5CLK
6 VSS2
7DAT0
8DAT1
9DAT2
10 NC
11 NC
12 NC
13 NC
14 SD3_CD#
15 SD3_WP
