The MI/O compact form factor SBC is a new-generation SBC design with a variety of
mechanical improvements. Here is the quick installation guide for our thermal design
and MIOe module installation.
4.1
Quick Installation Guide:
1. There is a Heatsink / Cooler in the white box inside the package. Carefully
remove the release paper from the thermal pad before installation.

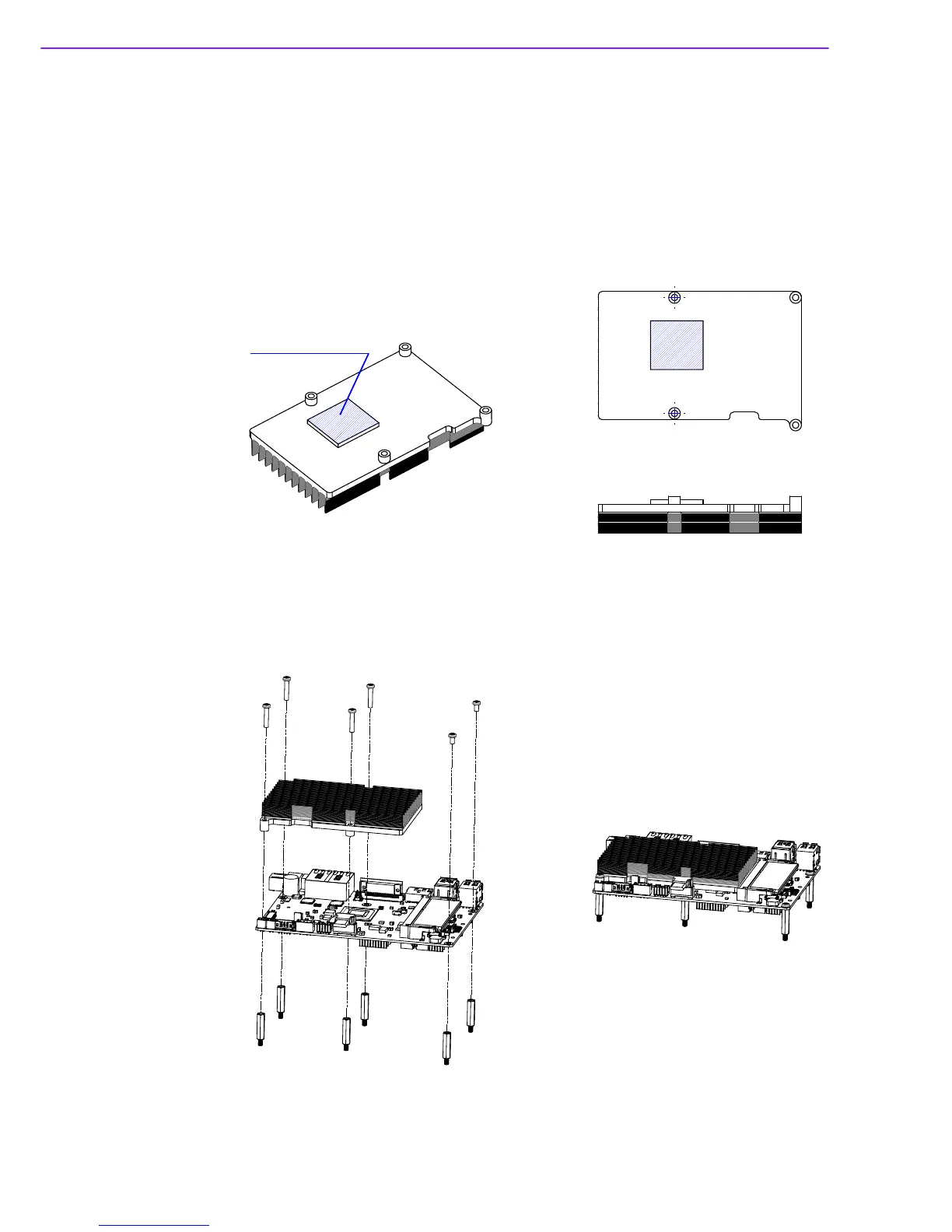

2. There are six screws and six studs inside the white box, please install the heat-
sink into place as per illustration below:
