MIO-5251 User Manual 58

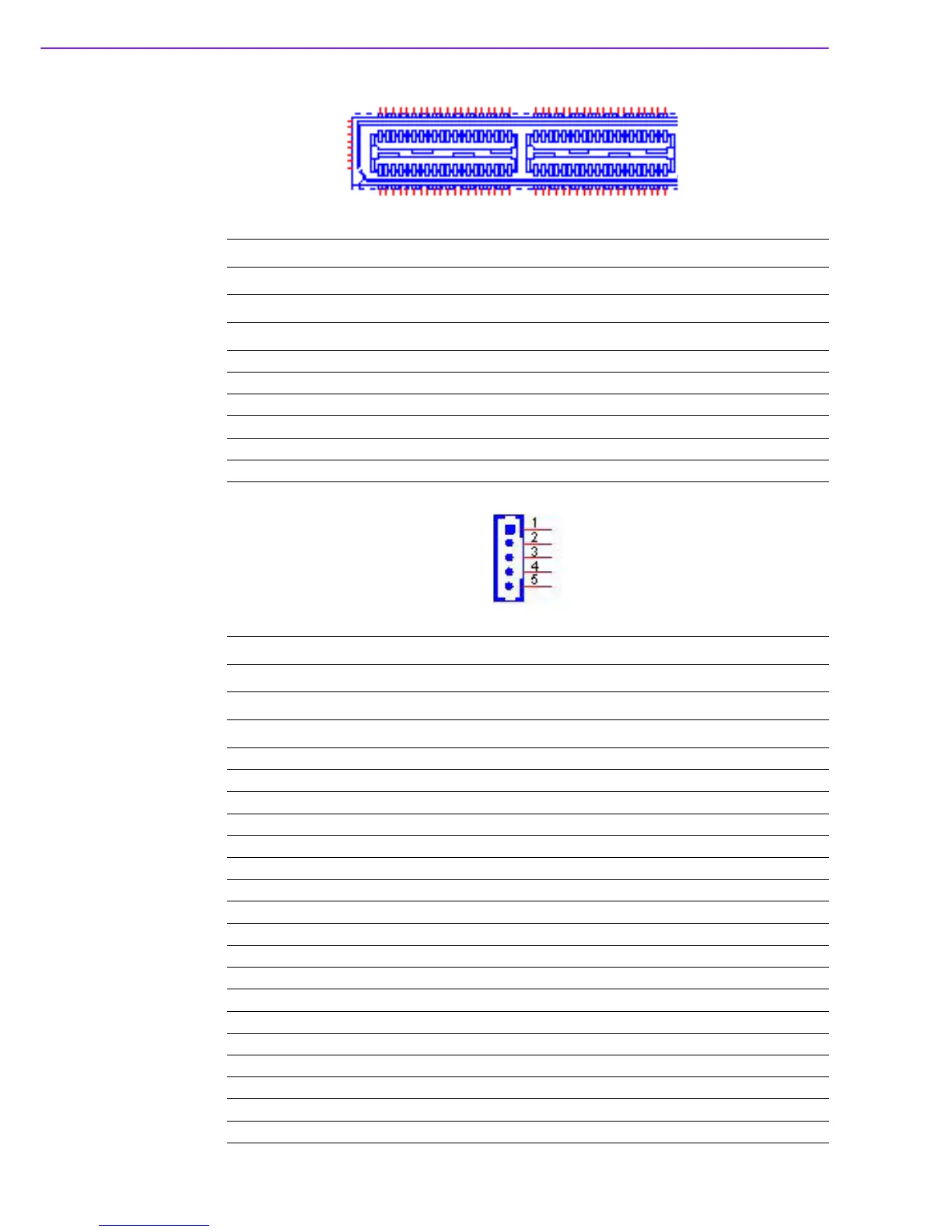

CN30 Inverter Power
Part Number 1655000453
Footprint WHL5V-2M-24W1140
Description WAFER BOX 2.0mm 5P 180D(M) DIP WO/Pb JIH VEI
Pin Pin Name
1 +12V
2GND
3ENABKL
4 VBR
5+5V
CN31 LVDS
Part Number 1653920200
Footprint SPH20X2
Description B/B Conn. 40P 1.25mm 90D SMD DF13-40DP-1.25V(91)
Pin Pin Name
1 +5V or +3.3V
2 +5V or +3.3V
3GND
4GND
5 +5V or +3.3V
6 +5V or +3.3V
7 LVDS0_D0-
8 LVDS1_D0-
9 LVDS0_D0+
10 LVDS1_D0+
11 GND
12 GND
13 LVDS0_D1-
14 LVDS1_D1-
15 LVDS0_D1+
16 LVDS1_D1+
17 GND
