MIO-5251 User Manual 60

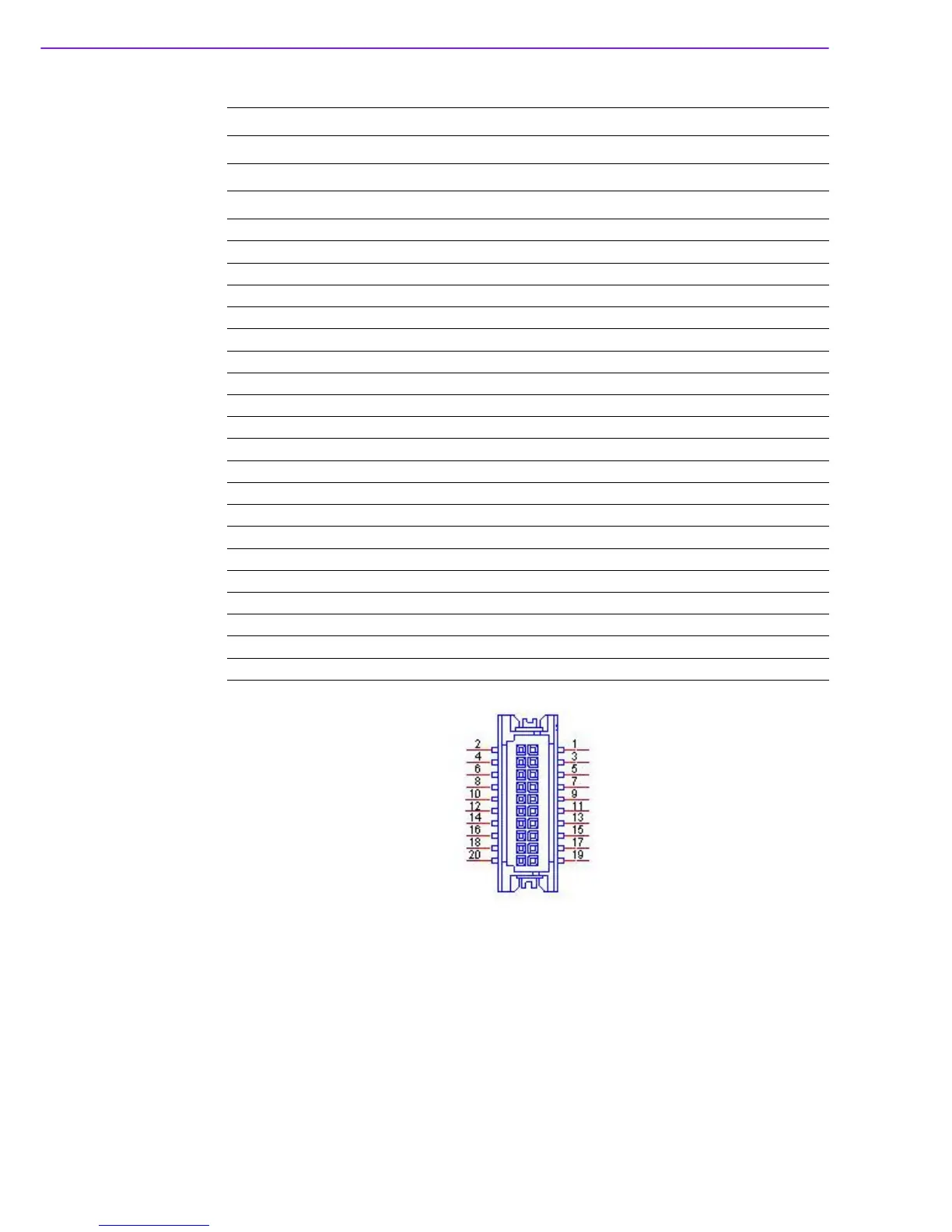

CN32 eDP
Part Number 1653910261
Footprint SPH10X2
Description B/B Conn 10x2P 1.25mm 180D(M)SMD DF13-20DP-1.25V
Pin Pin Name
1GND
2GND
3D0-
4D3-
5D0+
6D3+
7GND
8NC
9D1-
10 GND
11 D1+
12 AUX-
13 GND
14 AUX+
15 D2-
16 GND
17 D2+
18 Hot Plug Detect
19 +5V or +3.3V
20 +5V or +3.3V
