PCM-3365 User Manual 60
PD19 IDSEL3
PD20 GND
PD21 AD27
PD22 AD31
PD23 VI/O (+5V or +3.3V)
PD24 GNT0#
PD25 GND
PD26 CLK1
PD27 GND
PD28 RESET#
PD29 INTC#
PD30 GND

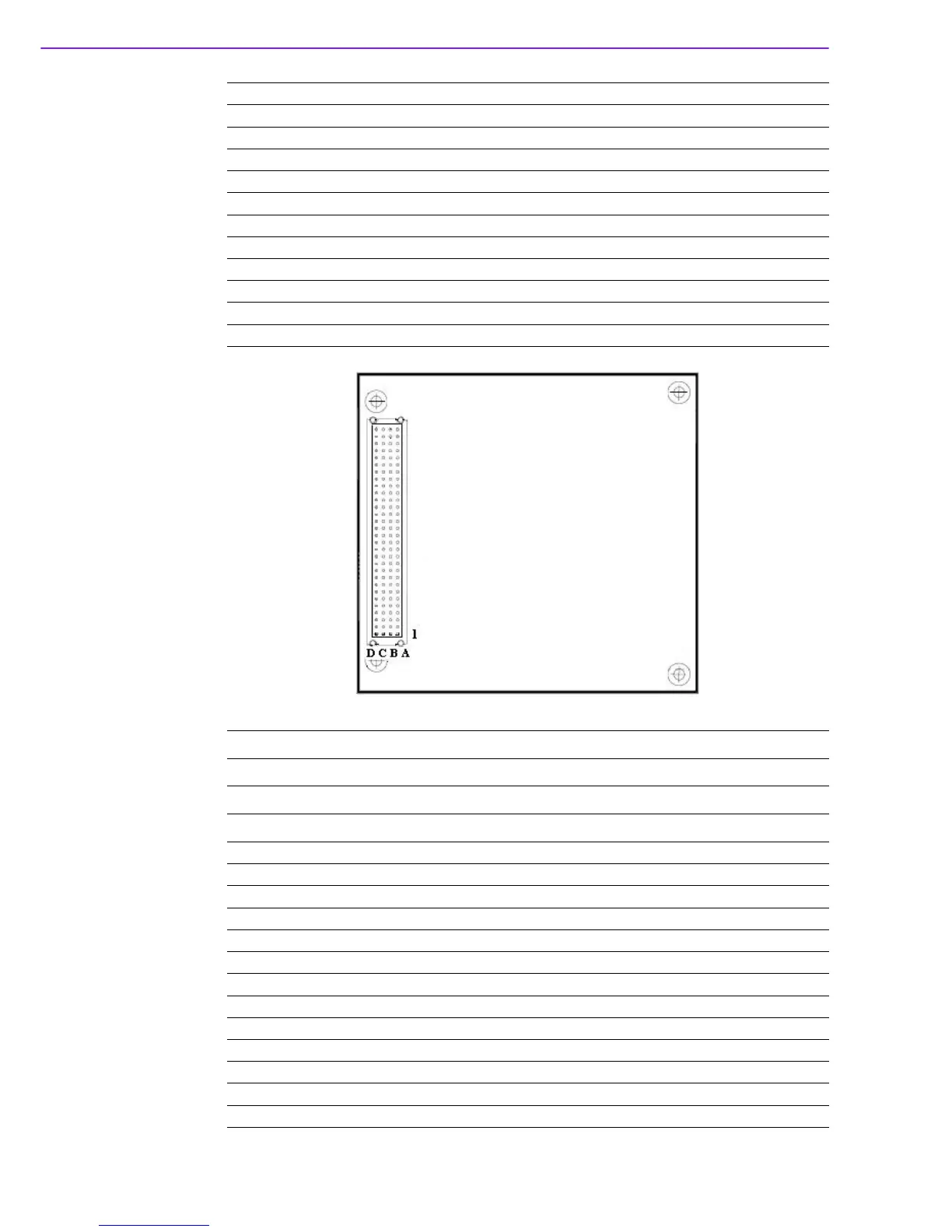

CN28 PC104 32x2-pin
Part Number 165313222B
Footprint PC104_32x2P_100_EPT_H451_D
Description PC/104 32x2P 2.54mm 180D(F) DIP 962-60322-12
Pin Pin Name
PA1 ISA_IOCHCK#
PA2 ISA_SD7
PA3 ISA_SD6
PA4 ISA_SD5
PA5 ISA_SD4
PA6 ISA_SD3
PA7 ISA_SD2
PA8 ISA_SD1
PA9 ISA_SD0
PA10 ISA_IOCHRDY#
PA11 ISA_AEN
PA12 ISA_SA19
