UNO-2272G User Manual 6
2.1 Introduction
The following figures show the connectors on UNO-2272G. The following sections
give you information about each peripheral.

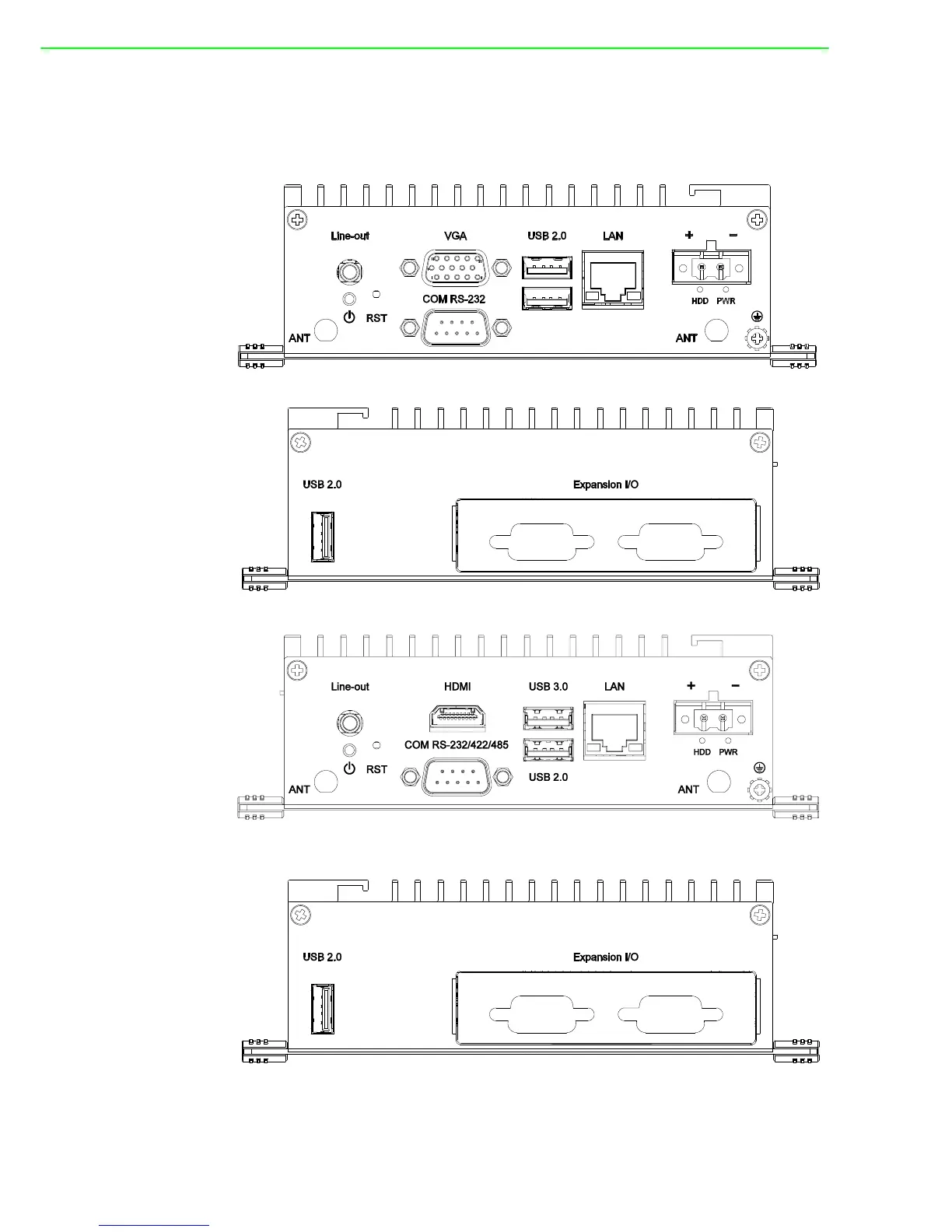

Figure 2.1 Front Panel of UNO-2272G-N2AE
Figure 2.2 Rear Panel of UNO-2272G-N2AE
Figure 2.3 Front Panel of UNO-2272G-J2AE
Figure 2.4 Rear Panel of UNO-2272G-J2AE
