UTC-320 User Manual 8
2.1 A Quick Tour of the UTC-320
Before you start to set up the UTC-320, take a moment to become familiar with the
locations and purposes of the controls, drives, connectors and ports, which are illus-
trated in the figures below.
When you place the UTC-320 upright on the desktop, its front panel appears as
shown in Figure 2.1.

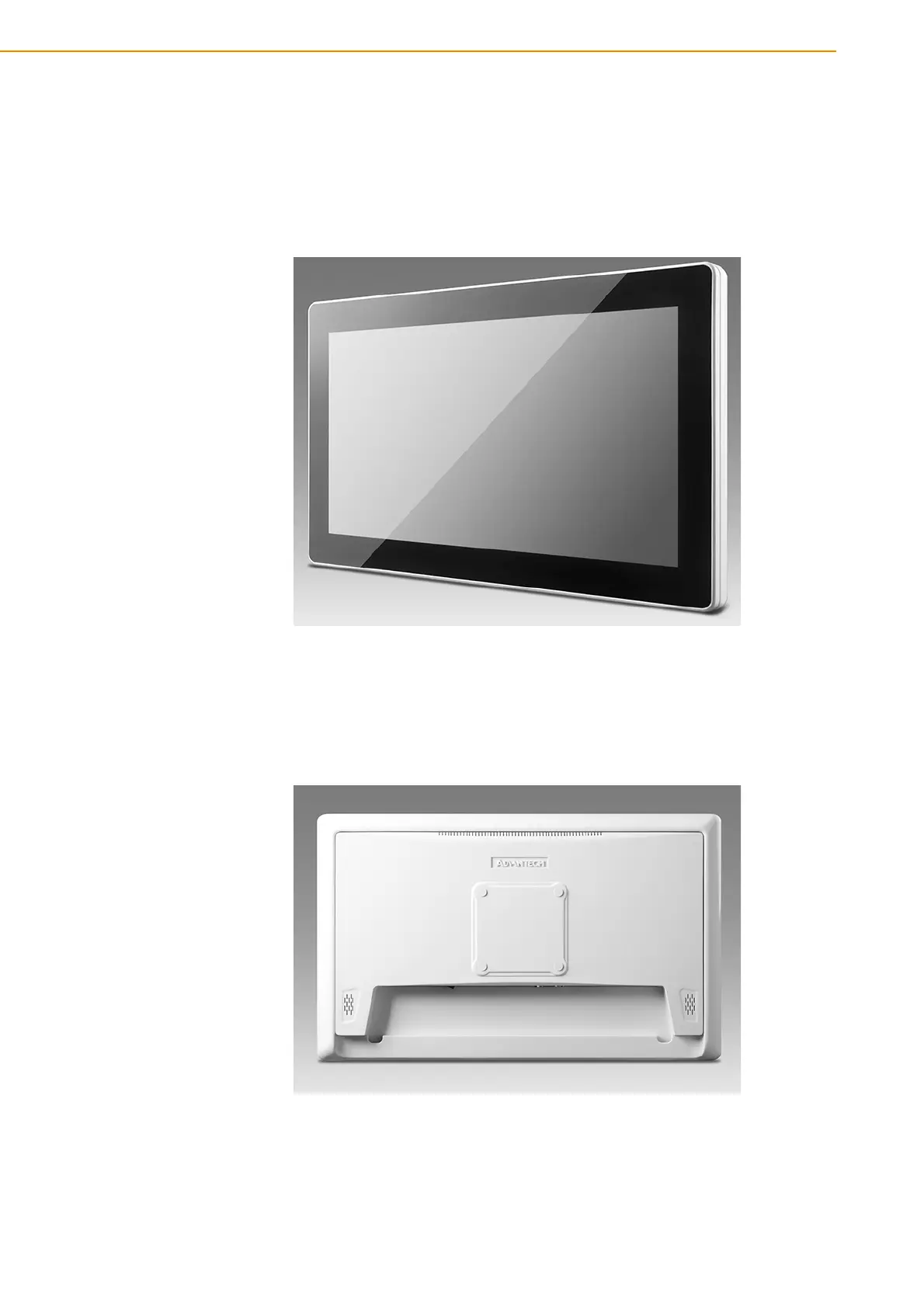

Figure 2.1 Front view of UTC-320
When you turn the UTC-320 around and look at its rear cover, you will find the I/O
section as shown in Fig. 2.2. (The I/O section includes various I/O ports, including
serial ports, Ethernet ports, USB ports, HDMI, and LINE-OUT / MIC-IN, RJ11, DC-IN,
Power button.)
Figure 2.2 Rear view of UTC-320
