15 UTC-320 User Manual
Chapter 3 Hardware Installation and Upgrades
3.3 Installing the mSATA Card
1. Remove 12 screws on the back cover.
2. Remove 6 screws on the reinforced board.

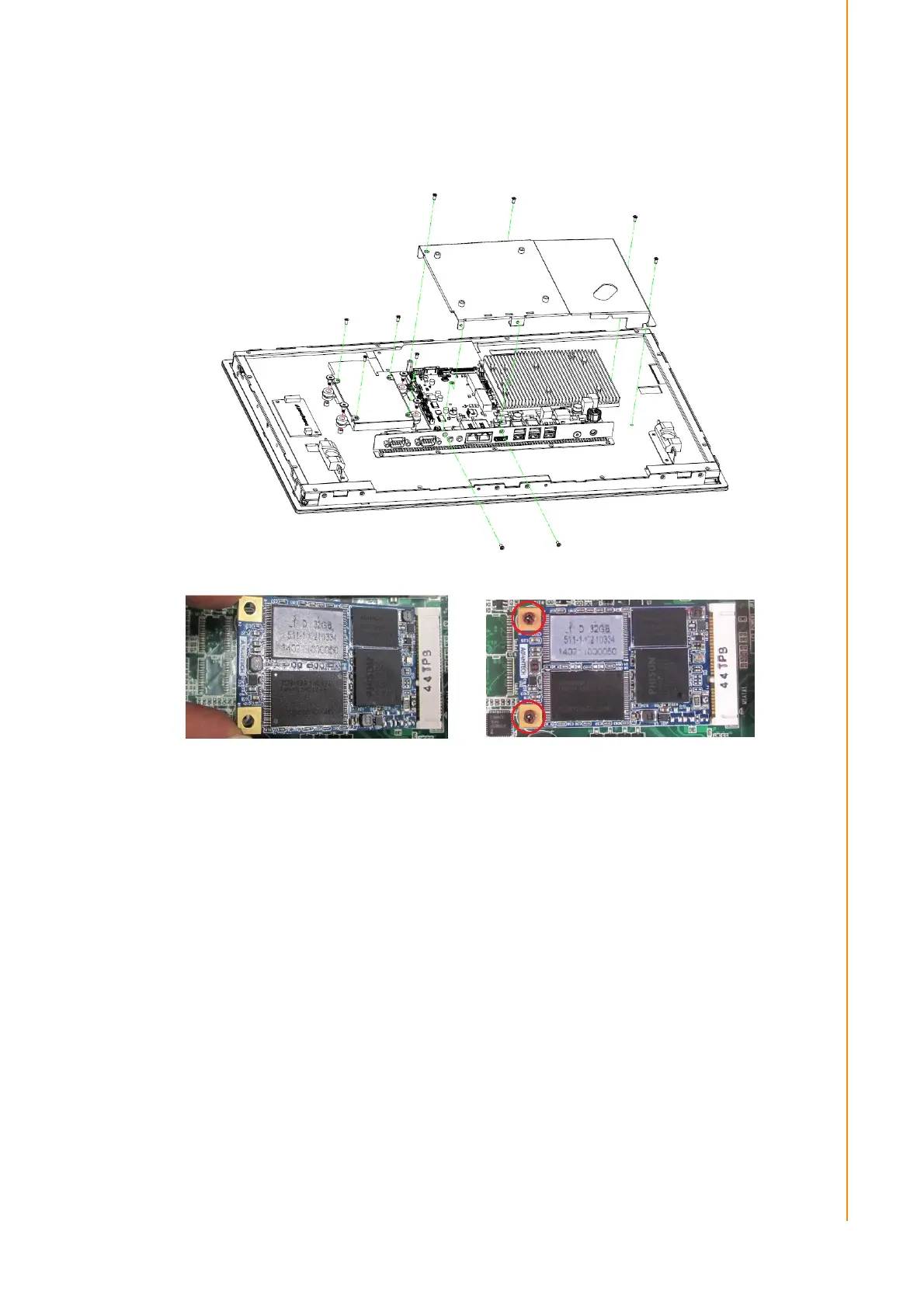

Figure 3.2 Installing the mSATA Card
