17 UTC-320 User Manual
Chapter 3 Hardware Installation and Upgrades

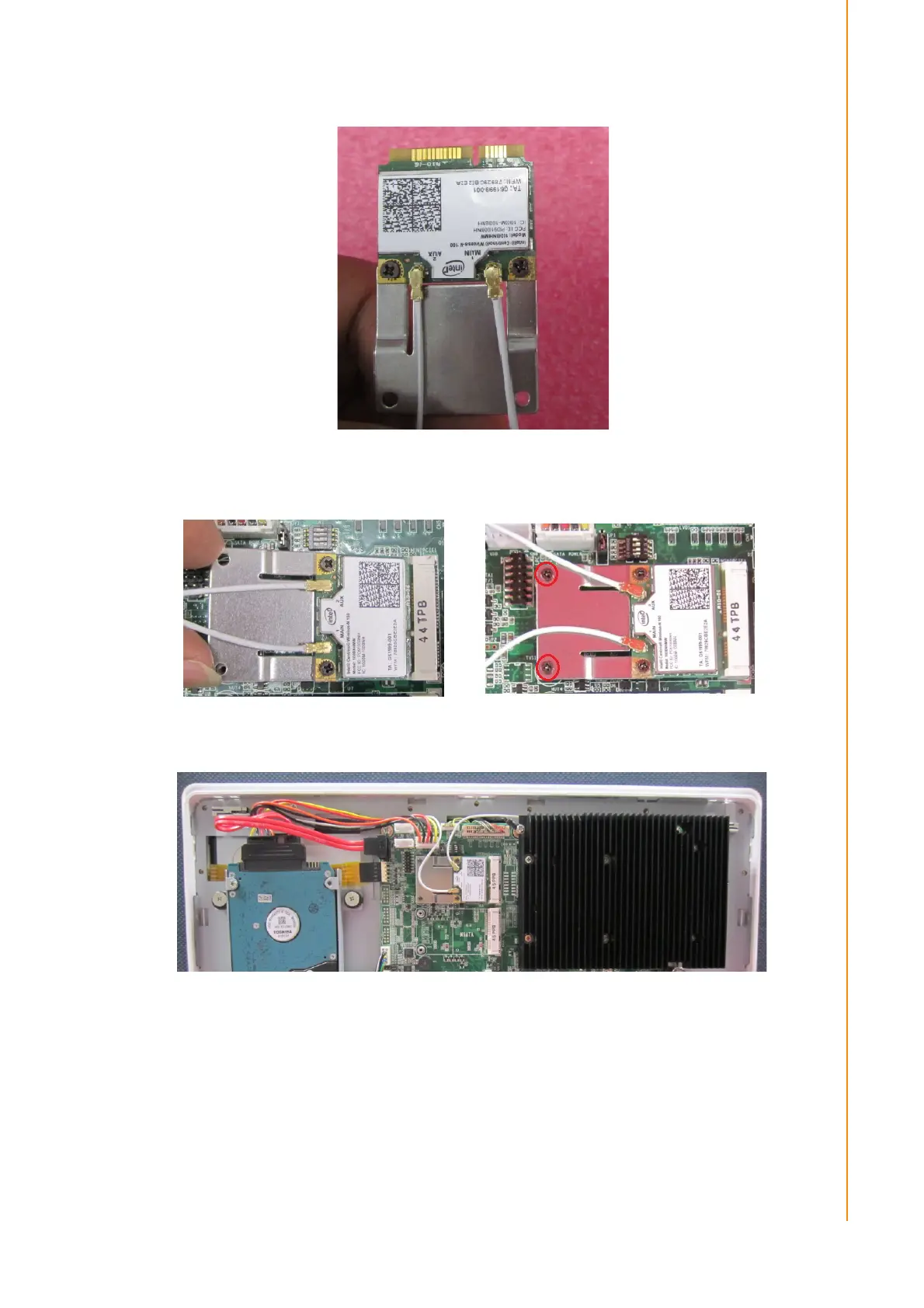

4. Connect the coaxial cable to "ANT1" on the WLAN card.
5. Install the WLAN card on M/B bottom side.
6. Cable routing of the wireless antenna is shown below.
