UTC-320 User Manual 30
25 LVDS0_CLK-
26 LVDS1_CLK-
27 LVDS0_CLK+
28 LVDS1_CLK+
29 GND
30 GND
31 LVDS0_DDC_SC
32 LVDS0_DDC_SD
33 GND
34 GND
35 LVDS0_D3-
36 LVDS1_D3-
37 LVDS0_D3+
38 LVDS1_D3+
39 +3.3V or +5V
40 +3.3V or +5V

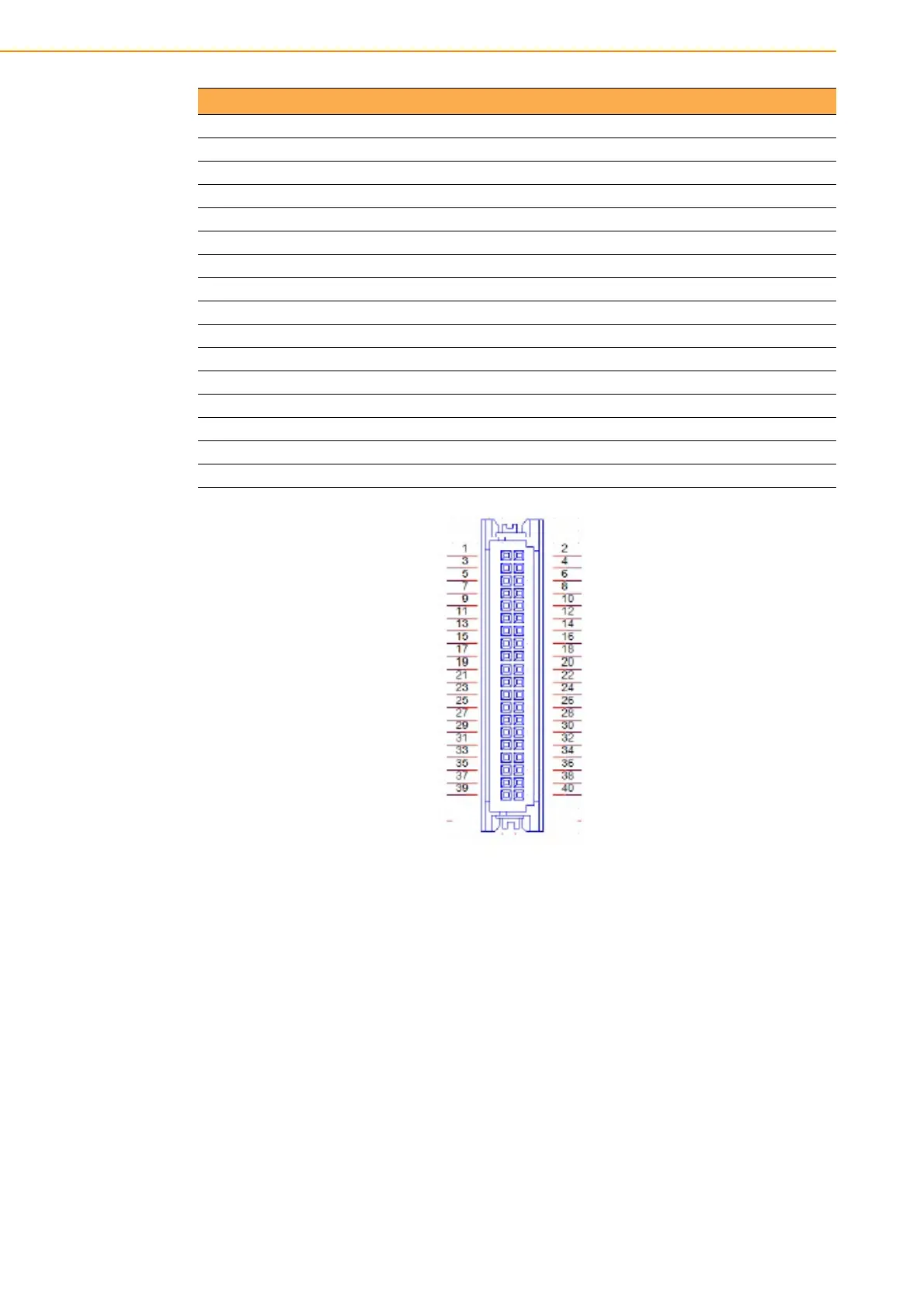

Table A.4: CN4: LVDS
