ADVANTEST R3131A User Manual

Improved system throughput
The throughput of production and adjustment lines is largely
affected by the measurement time of measuring instruments
and data transmission time. With newly developed internal
processing technology, the R3131A has shortened the time
necessary for GPIB control and data transmission by half or
more in comparison with former products. In addition, by
reducing the settling time of the local oscillator, the waveform
update rate in unit time has been doubled.
(In either case, comparison is made under the same conditions.)

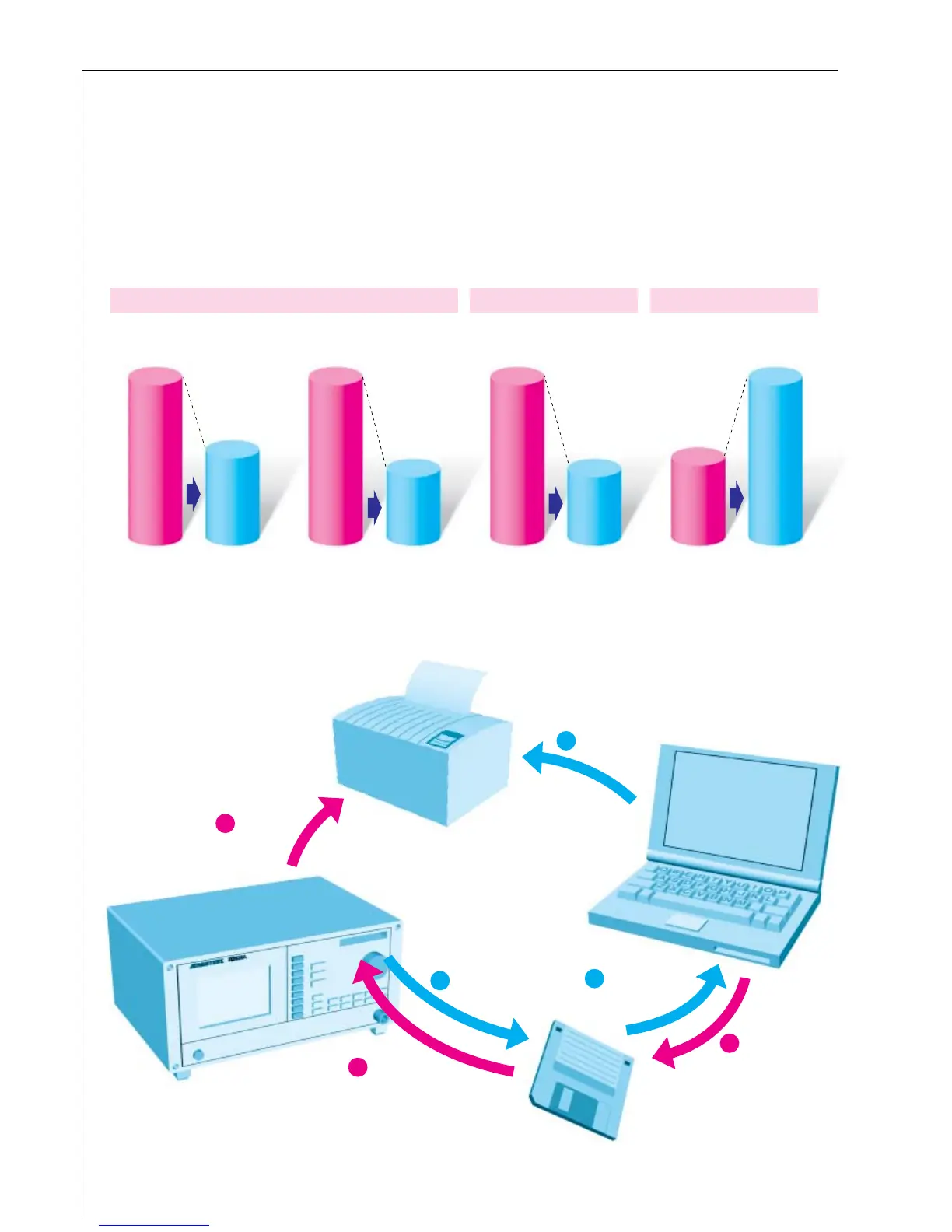

Use of Data Save/Recall of the R3131A
8
R3131A-4E Jan. ´02
Series of center frequency, sweep,
marker, and data load operations
Former products
from Advantest
Former products
from Advantest
Former products
from Advantest
Former products
from Advantest
R3131A
About
2.2 seconds
About
1.2 seconds
About
1.6 seconds
About
0.7 seconds
About
0.7 seconds
About
0.3 seconds
About
5 times/
second
About
10 times/second
R3131A R3131A R3131A
Trace data output
Actual measurement Trace data update
ASCII MODE BIN MODE
(with a sweep time of 50ms)
( )
Printer
R3131A
Floppy
PC
Easy data management
on the PC
(.txt, .bmp)
PERSONAL SPECTRUM ANALYZER
5
Print-Out
2
Open in Excel
format
3
Data editing
1
Save in txt
format
4
Data Recall
5
Print-Out
