Adventure Kings PLUS AKPSR-MPPT 01 User Manual

10
V1.7
When first connected, the unit will display Solar, Battery and Load information on the
HOME SCREEN Display that cycles every 2 seconds.
There are 5 buttons on the unit that perform different functions if they are short pressed,
or long pressed (held) within the different displays / menus.
1. While on the HOME SCREEN, pressing the PV, BATT or LOAD button will cycle that
selection through to the next display value.
a) Pressing PV will cycle through Volts, Amps, Watts and Watt hours.
b) Pressing BATT will cycle through Volts, Amps, Temperature and battery charge
percentage.
c) Pressing Load will cycle through Volts, Amps, Watts, consumed Watt hours, Load 1
setting and Load 2 Setting.
2. Short pressing the POWER/ESC button will turn the load output on or off
9. BUTTON INSTRUCTIONS

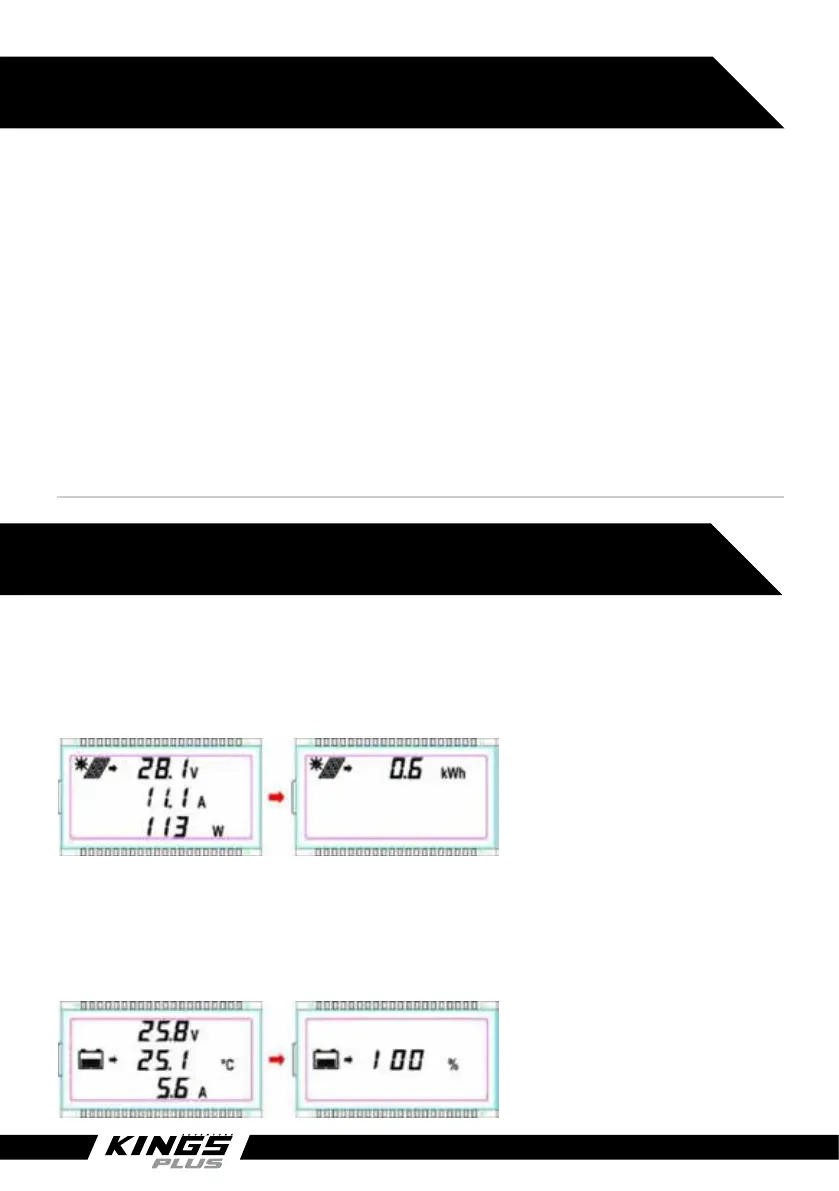

From the HOME SCREEN, pressing the SET button, then the PV button will access the
Solar Interface (with only the Solar Icon shown on screen) and display the connected
solar panel information (voltage, current, total power input and total generated power)
on two screens that can be cycled by short pressing the PV button. Pressing SET again
returns to the HOME SCREEN.
From the HOME SCREEN, pressing the BATT button will access the Battery Interface
(with only the Battery Icon shown on screen) and will display information about the
connected battery (voltage, temperature, current and battery capacity percentage) on
two screens that can be cycled by short pressing the PV button. Pressing SET again
returns to the HOME SCREEN.
10. BASIC BUTTON FUNCTIONS

Adventure Kings PLUS AKPSR-MPPT 01 Specifications

General

SKU	AKPSR-MPPT_01
NAME	20A MPPT Solar Charge Controller / Regulator
System Nominal Voltage	12/24VDC (auto detect except for lithium)
Rated Charge Current	20A
Rated Discharge Current	20A
Max PV Open Circuit Voltage @25°C Standard Test Conditions	46V
MPP Voltage Range	Battery Voltage +2V ~ 36V
Rated Charge Power (12V System)	260W
Rated Charge Power (24V System)	520W
Maximum Solar Input (12V System)	390W
Maximum Solar Input (24V System)	780W
Self-consumption (12V System)	≤14mA
Self-consumption (24V System)	≤15mA
Discharge Circuit Voltage Drop	≤0.23V
Load Circuit	Manual on/off + programmable settings
Grounding	Common negative
Battery Voltage Range	8~32V
*Temperature Compensation for lithium	NO
Selectable 12/24V Battery Types	Sealed, Gel, Flooded, LiFePO4, Li(NiCoMn)O2, User Adjustable
Max Conversion Efficiency	98.3%
Efficiency at full load	96.7%
Temperature Compensation Coefficient*	-3mV/°C/2V
Working Temperature (100% input/ output)	-25°C ~ +50°C
Relative Humidity	≤95% non-condensing
IP Rating	IP33 Dust and Water Resistant
RS485 Interface	5VDC/200mA (RJ45)
Wire Terminal Type and Size	Screw Terminals, Up to 6AWG (16mm2)
Wire Type	100mm length Double Insulated XLPO 6mm2
Plug Type	Quick connect plugs
LCD Backlight time	60 seconds

Weight and Dimensions

Dimensions	217 x 158 x 56.5 mm
Weight	0.96kg
Mounting Hole Spacing	160 x 149 mm
Mounting Hole Dimensions	5mm diameter
