ENA: ECO mode enable
DIS: ECO mode disable

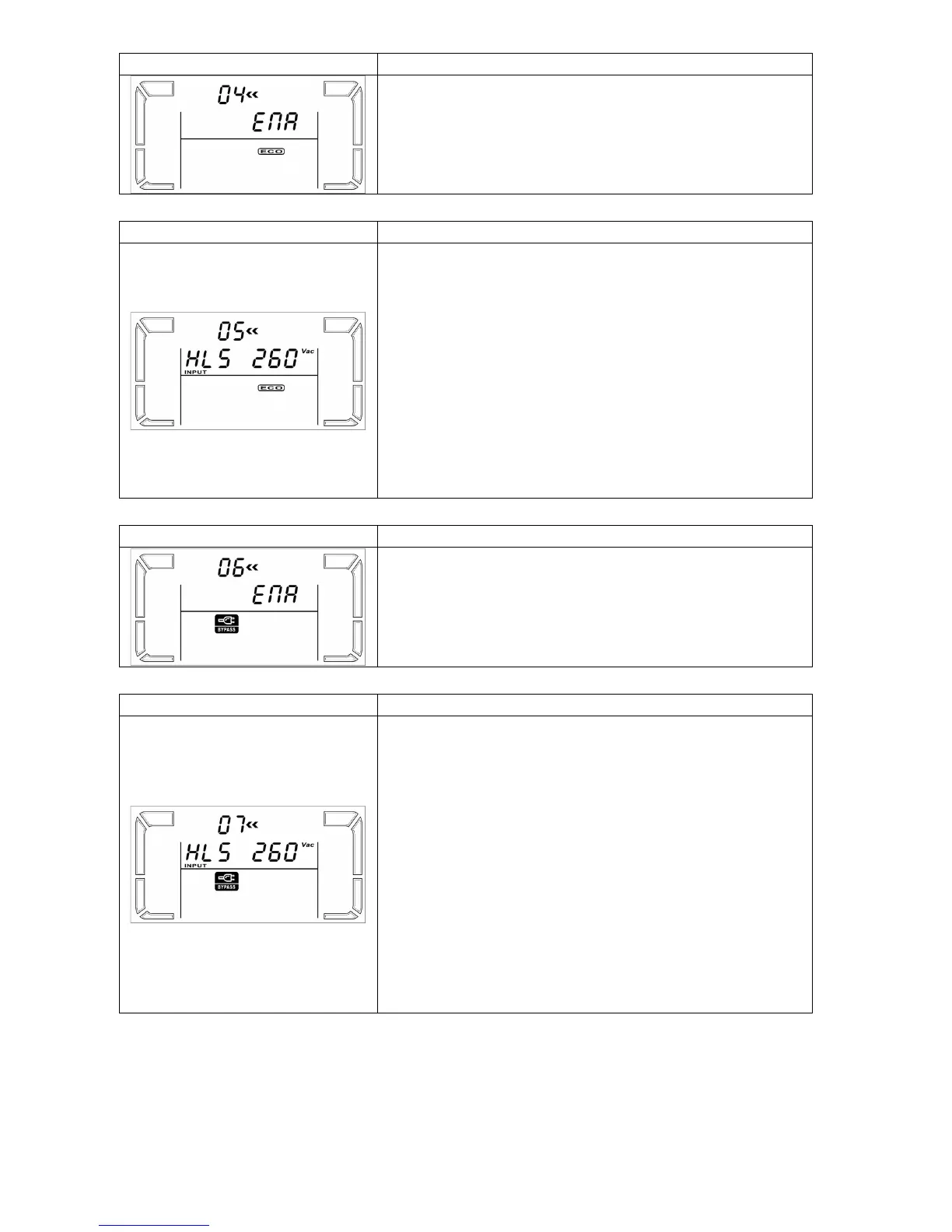

• 05: ECO voltage range setting
Interface Setting
Press the Down key or Up key to set the acceptable
high voltage point and acceptable low voltage point:
HLS: High loss voltage in ECO mode (For
208/220/230/240 VAC models, the setting range is
from +7V to +24V of the nominal voltage. For
110/115/120/127 VAC models, the setting range is
from +3V to +12V of the nominal voltage).
LLS: Low loss voltage in ECO mode (For
208/220/230/240 VAC models, the setting range is
from -7V to -24V of the nominal voltage. For
110/115/120/127 VAC models, the setting voltage is
from -3V to -12V of the nominal voltage)
• 06: Bypass enable/disable when UPS is off
Interface Setting
ENA: Bypass enable
DIS: Bypass disable
• 07: Bypass voltage range setting
Interface Setting
Press the Down key or Up key to set the acceptable
high voltage point and acceptable low voltage point:
HLS: Bypass high voltage point
LLS: Bypass low voltage point
For 208/220/230/240 VAC models:
230-264: setting the high voltage point from 220Vac to
264Vac
170-220: setting the low voltage point from 170Vac to
220Vac
For 110/115/120/127 VAC models:
120-140: setting the high voltage point from 120Vac to
140Vac
85-115: setting the low voltage point from 85Vac to
115Vac
