A-47 IR Mini Dome Camera • Quick Operation Guide
21

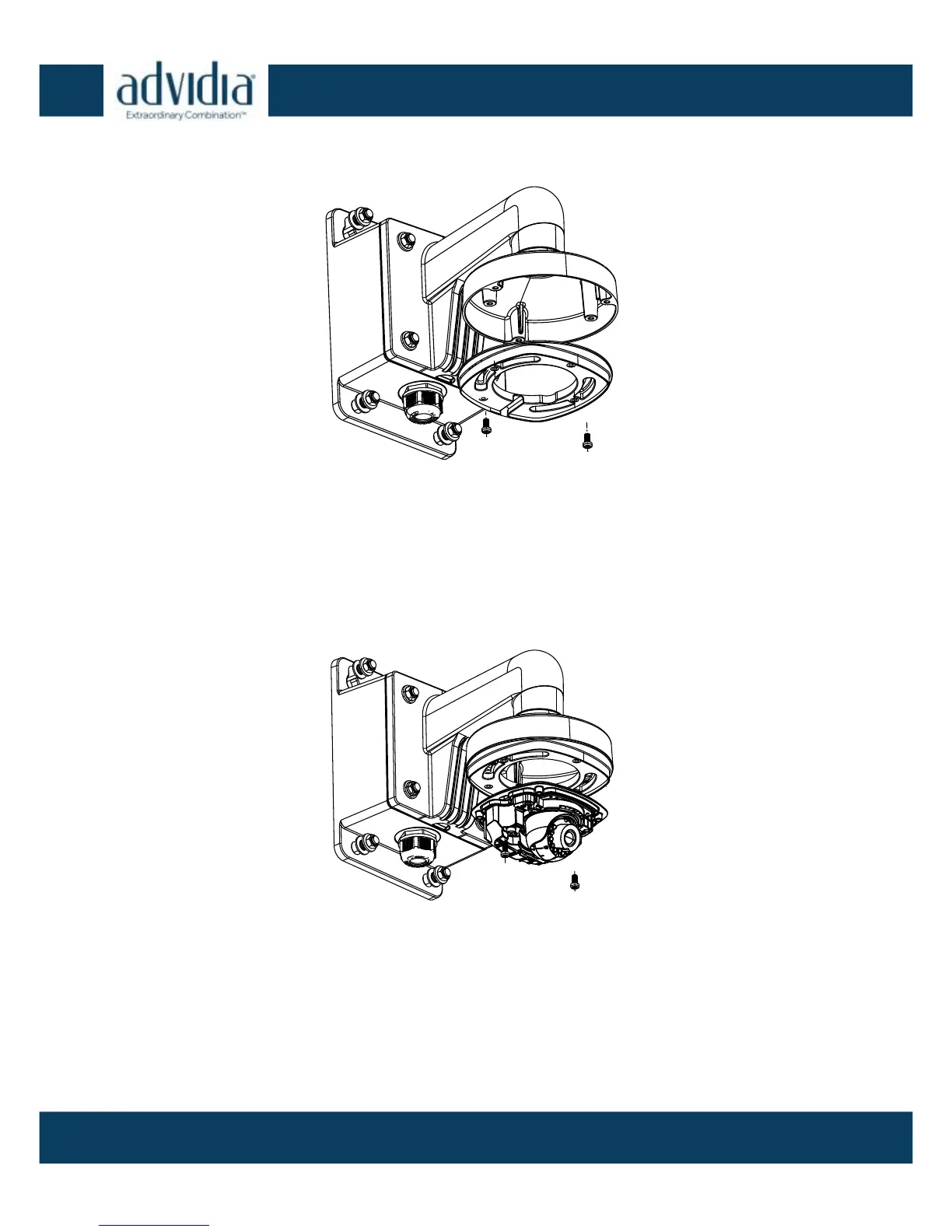

2. Fix the adapter plate to the wall bracket.
Attach the Adapter Plate Figure 2-15
3. Attach the camera body to the wall bracket with the supplied
screws.
Install the Camera Figure 2-16
4. Place the housing over the camera body and tighten the set
screws to complete the installation.
