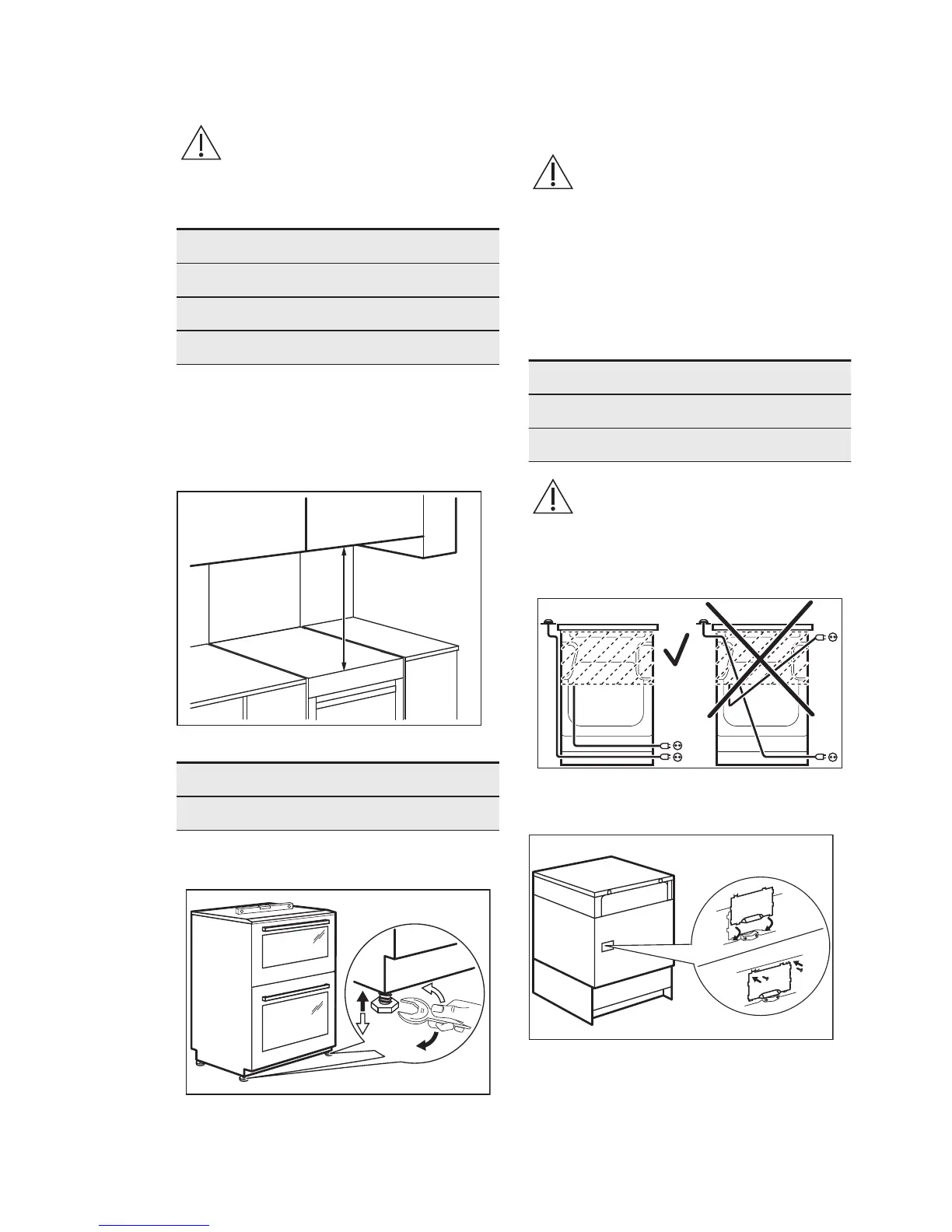

13. INSTALLATION
WARNING!
Refer to Safety chapters.
13.1 Technical data
Dimensions
Height 894 - 912 mm
Width 600 mm
Depth 609 mm
13.2 Location of the appliance
You can install your freestanding
appliance with cabinets on one or two
sides and in the corner.
Minimum distances
Dimension mm
A 685
13.3 Levelling of the appliance
Use small feet on the bottom of
appliance to set the appliance top
surface level with other surfaces.
13.4 Electrical installation
WARNING!
The manufacturer is not
responsible if you do not
follow the safety precautions
from Safety chapters.
This appliance is supplied without a main
plug or a main cable.
Applicable types of cables for different
phases:
Phase Min. size cable
1 3x6.0 mm²
3 with neutral 5x1.5 mm²
WARNING!
The power cable must not
touch the part of the
appliance shaded in the
illustration.
13.5 Covering terminal board
• The recommended cross-section area
is six square millimetres (6 mm²).
• When you refit the mains terminal
cover, make sure that the lower tabs
are located inside the bottom edge of
the aperture, before you fix the two
ENGLISH
29
