3. PRODUCT DESCRIPTION

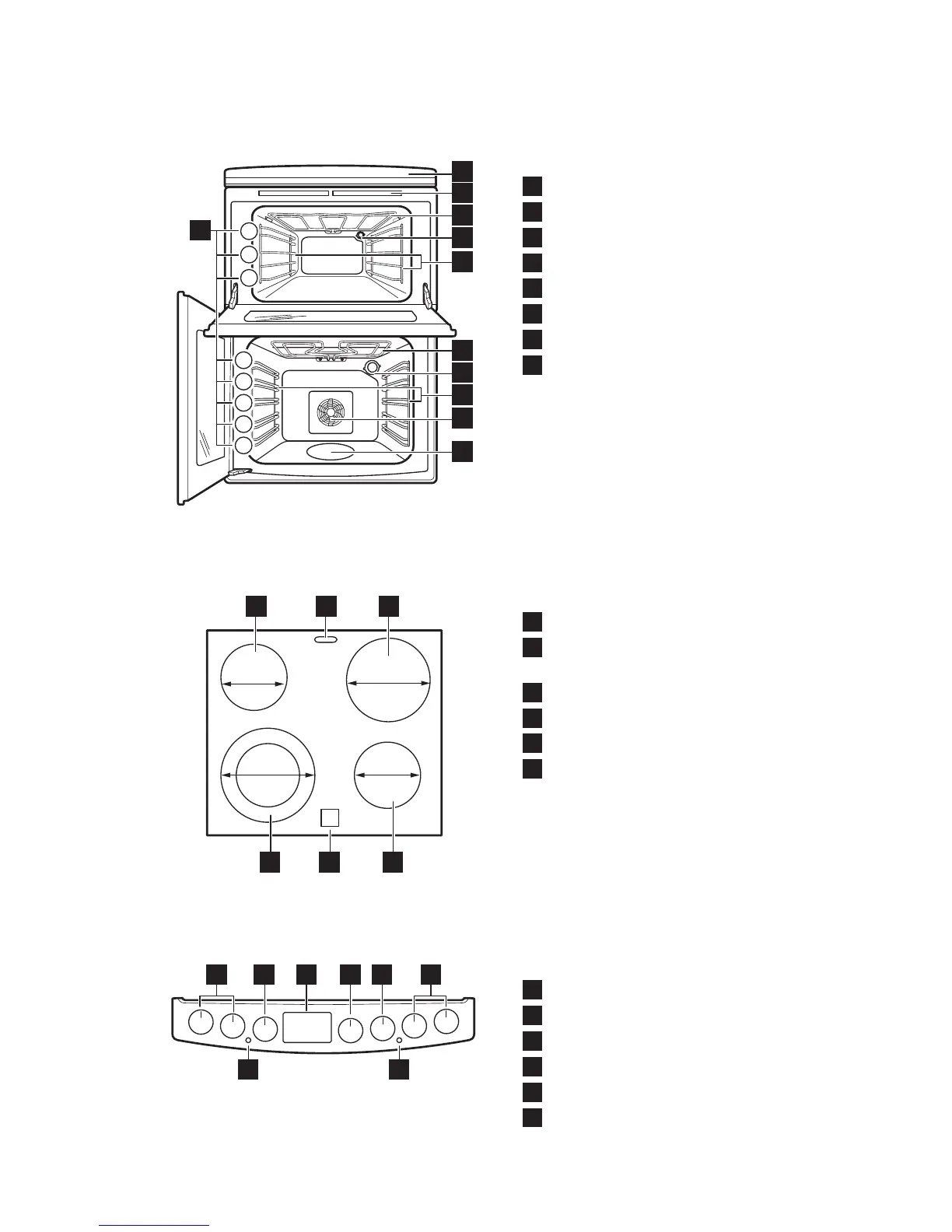

3.1 General overview
1
2
3
3
4
5
5
6
5
4
3
2
1
8
3
2
1
4
7
1
Control panel and hob
2
Air vents for the cooling fan
3
Heating element
4
Lamp
5
Shelf support, removable
6
Fan
7
Cavity embossment
8
Shelf positions
3.2 Cooking surface layout
180 mm
145 mm210 mm
140 mm
145 mm
1
3
456
2
1
Cooking zone 1200 W
2
Steam outlet - number and position
depends on the model
3
Cooking zone 1800 W
4
Cooking zone 1200 W
5
Residual heat indicator
6
Cooking zone 1000 / 2200 W
3.3 Cooker control panel
67
1 2 543 1
1
Knobs for the hob
2
Knob for the top oven functions
3
Display
4
Knob for the main oven functions
5
Knob for the main oven temperature
6
Temperature indicator / symbol for
the main oven
