1
Ceiling spray arm
2
Upper spray arm
3
Lower spray arm
4
Filters
5
Rating plate
6
Salt container
7
Air vent
8
Rinse aid dispenser
9
Detergent dispenser
10
Cutlery basket
11
Lower basket
12
Upper basket
4.1 Beam-on-Floor
The Beam-on-Floor is a light that is
displayed on the floor below the
appliance door.
• A red light comes on when a
programme starts. It remains on for
the duration of the programme.
• A green light comes on when the
programme is complete.
• The red light flashes when the
appliance has a malfunction.
The Beam-on-Floor is off
when the appliance is
deactivated.

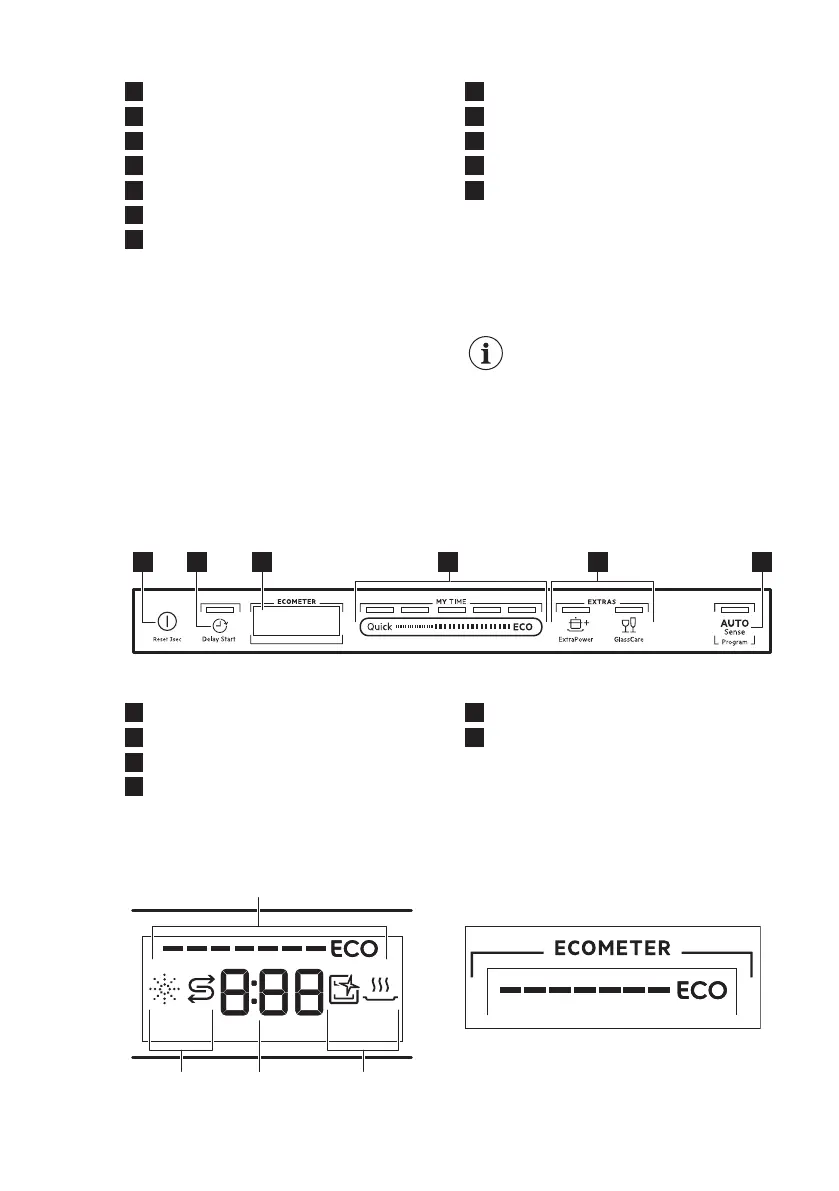

5. CONTROL PANEL
1 2 3
4 5 6
1
On/Off button / Reset button
2
Delay start button
3
Display
4
MY TIME program selection bar
5
Option buttons (EXTRAS)
6
AUTO Sense program button
5.1 Display
A
CB B
A. ECOMETER
B. Indicators
C. Time indicator
5.2 ECOMETER
The ECOMETER indicates how the
programme selection impacts energy
and water consumption. The more bars
are on, the lower the consumption is.
