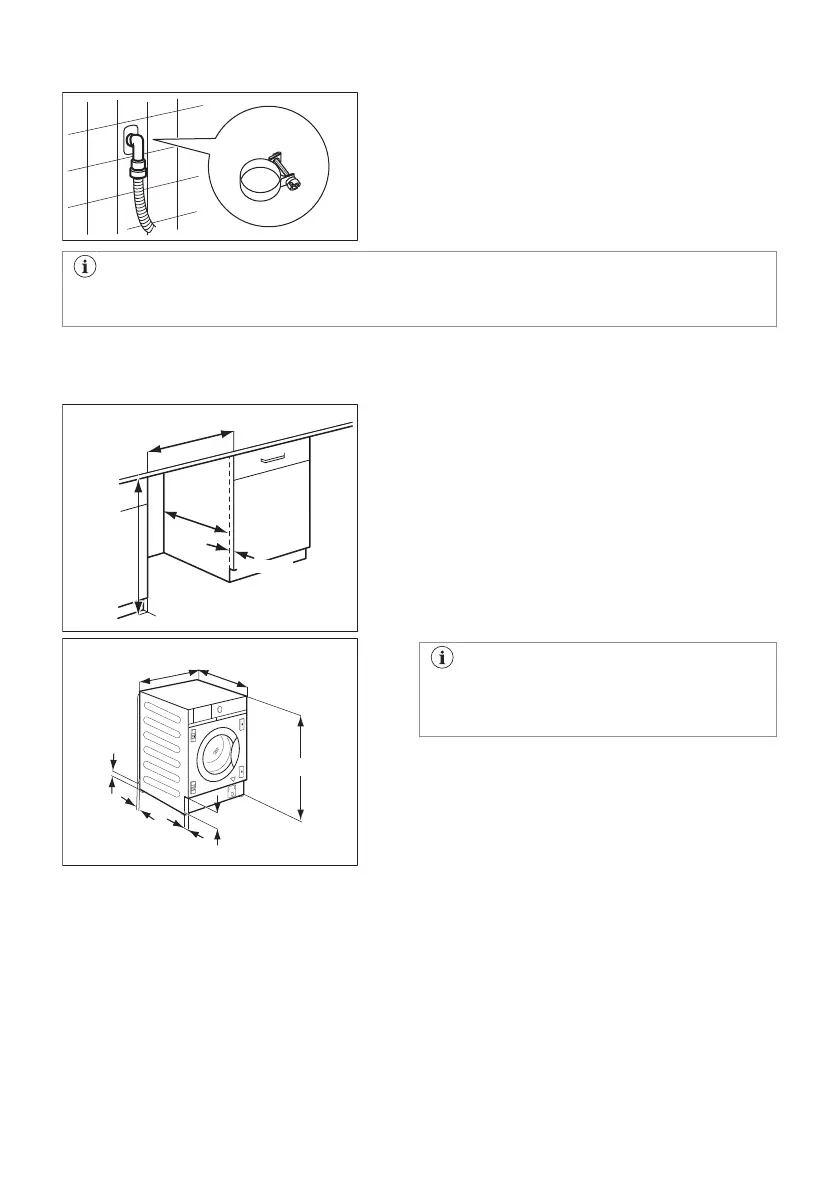

To a wall-pipe
Directly to a built-in drain pipe in the room wall
and tighten it with the supplied cable tie L.
You can extend the drain hose to maximum 400 cm. Contact the service centre for the
other drain hose and the extension.
5.6 Building in
600 mm
min.
820 mm
min.
560 mm
16-22 mm
min.
This appliance has been designed to be built into
the kitchen furniture. See the minimum recess
dimensions in the drawings.
553 mm
596 mm
140 mm
76 mm
50 mm
50 mm
819 mm
If hoses run behind the appliance, make
sure that nothing closes the small recess
indicated with the measures 50 x 50 mm.
ENGLISH 13
