3.3 Electrical Connection
CAUTION!
Any electrical work required to install this
appliance should be carried out by a
qualified electrician or competent person.
WARNING!
This appliance must be earthed.
The manufacturer declines any liability
should these safety measures not be
observed.

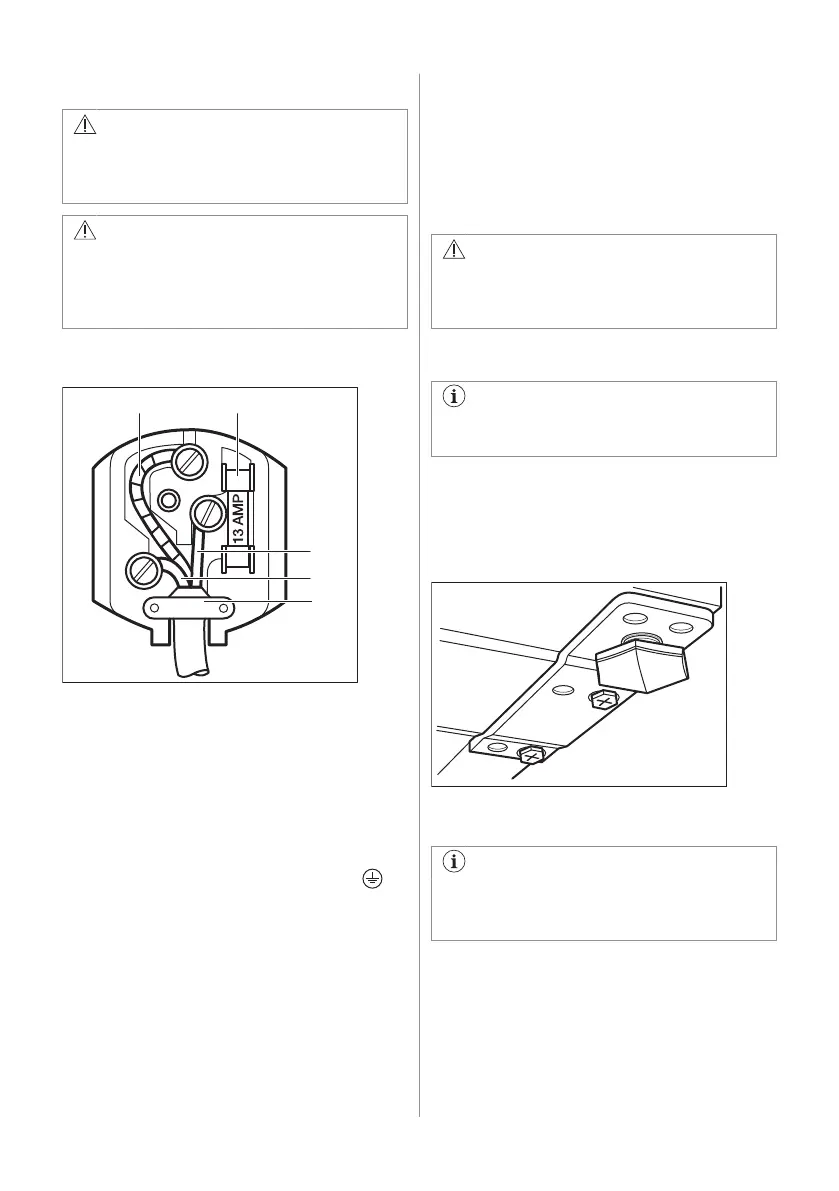

The wires in the mains lead are coloured in
accordance with the following code:
• A - green and yellow: Earth
• C - brown: Live
• D - blue: Neutral
As the colours of the wires in the mains lead
of this appliance may not correspond with the
coloured markings identifying the terminals in
your plug, proceed as follows:
1. Connect the wire coloured green and
yellow to the terminal marked either with
the letter “E“ or by the earth symbol
or
coloured green and yellow.
2. Connect the wire coloured blue to the
terminal either marked with the letter
“N“ or coloured black.
3. Connect the wire coloured brown to the
terminal either marked with the “L“ or
coloured red.
4. Check that no cut, or stray strands of wire
is present and the cord clamp (E) is
secure over the outer sheath.
Make sure the electricity supply voltage is
the same as that indicated on the
appliance rating plate.
5. Switch on the appliance.
The appliance is supplied with a 13 amp fuse
(B). In the event of having to change the fuse
in the plug supplied, a 13 amp ASTA
approved (BS 1362) fuse must be used.
WARNING!
A cut off plug inserted into a 13 amp
socket is a serious safety (shock) hazard.
Ensure that it is disposed of safely.
3.4 Levelling
Door alignment depends on proper
levelling.
It is advisable to empty the appliance before
carrying out this operation.
When placing the appliance ensure that it
stands level. This can be achieved by two
adjustable feet at the bottom in front.
3.5 Rear spacers
Please refer to the separate document
with instructions on installation and door
reversal.
8 ENGLISH
