MOUNTING PROTECT PV TO THE WALL
1. Select a wall or solid vertical surface that can support the
PV-Inverter.

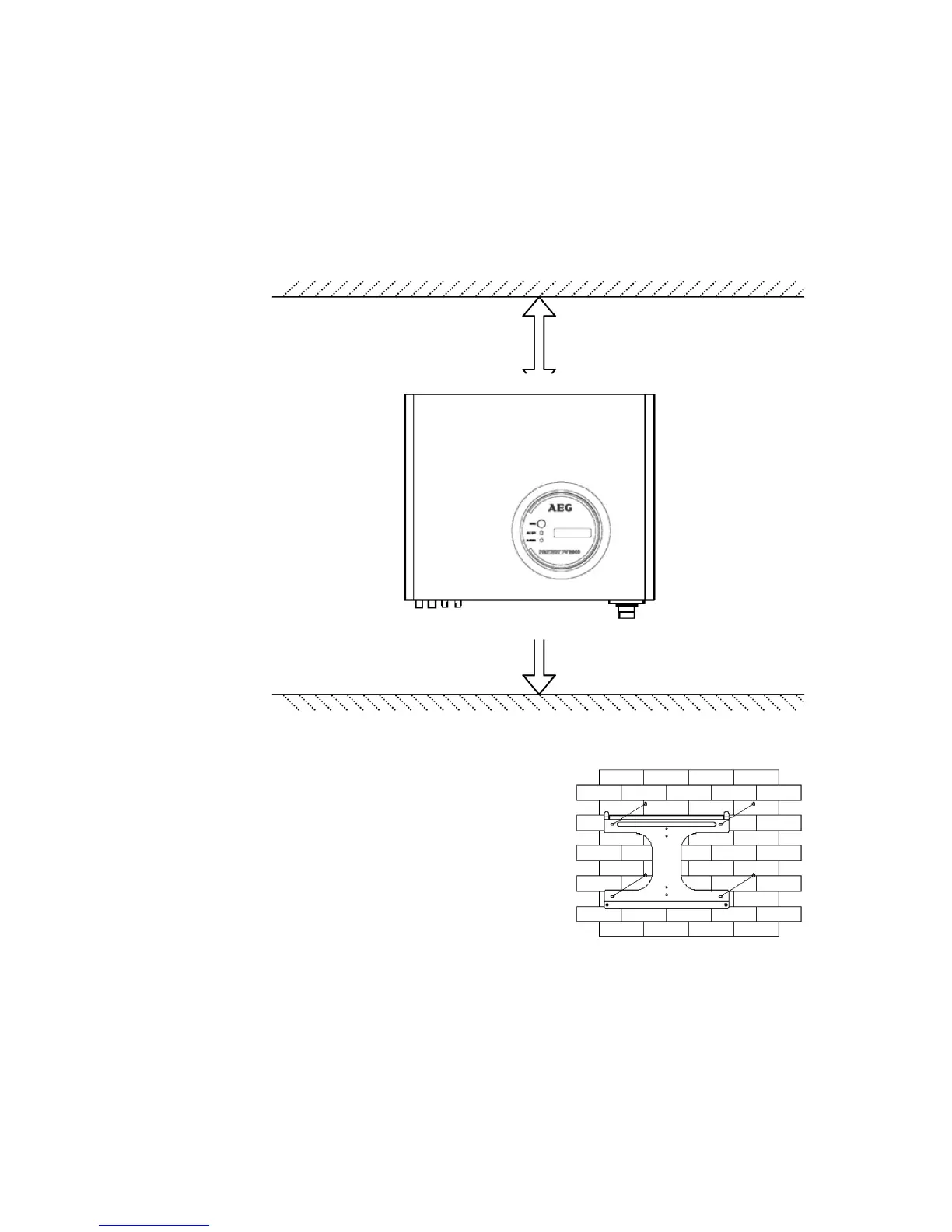

2. Protect PV requires adequate cooling space. Allow at least 20cm
space above and below the inverter.
3. Using the mounting frame as a template, drill 4 holes as illustrated in
the following figures.
4. Fix the mounting frame as the
figure shows. Do not drive-in the
screws ush to the wall. Instead,
leave 2 to 4mm exposed.
5. Hang the inverter on the
mounting frame.
20 cm space
20 cm space
