AEM Performance Electronics 30-3300 - Installation; Installation Diagram; Controller Mounting Location

Water/Methanol Injection V2
5
© 2020 AEM Performance Electronics

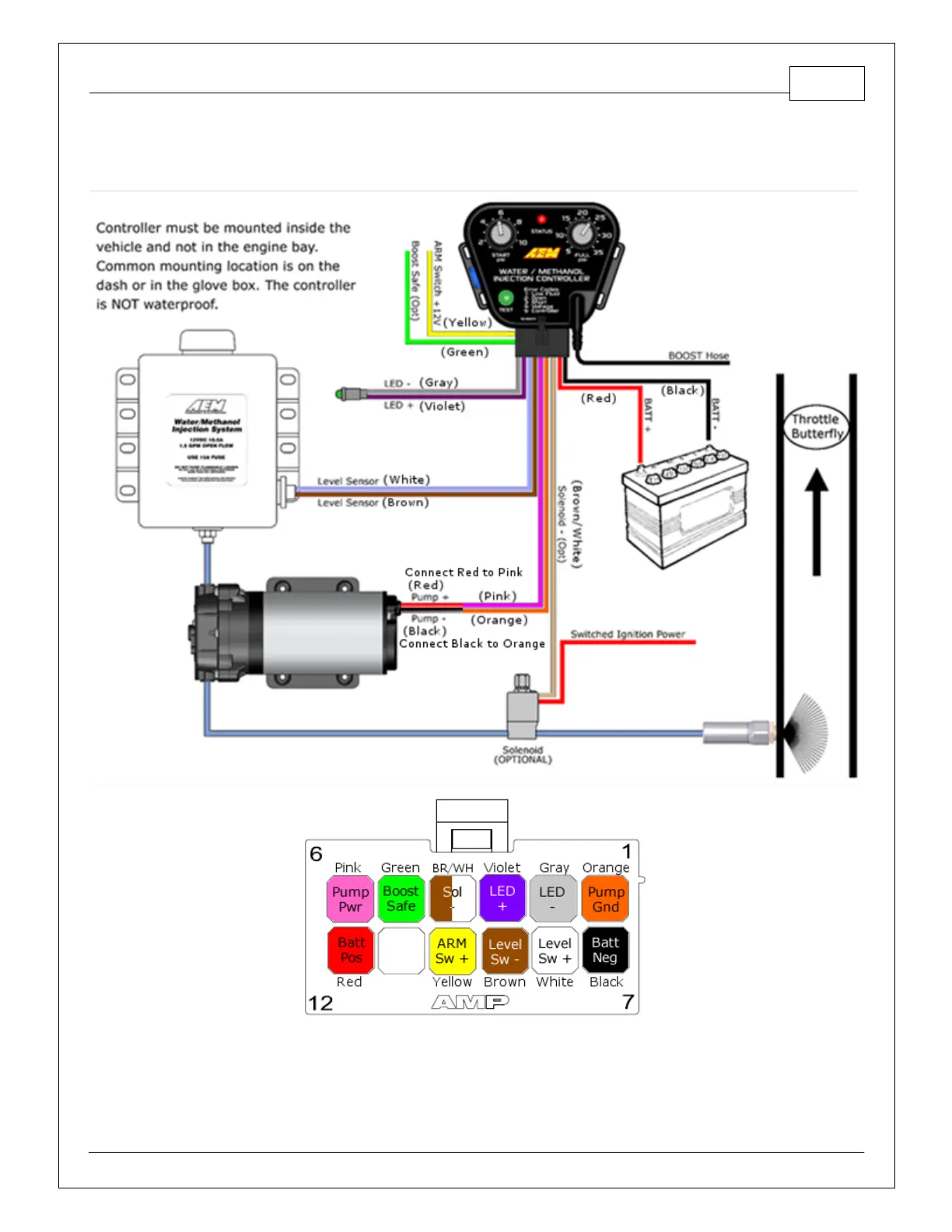

INSTALLATION
Diagram
*Viewed from Wire Side of Connector
NOTE: THIS KIT INCLUDES NEW STYLE INJECTOR NOZZLES THAT HAVE INTERNAL CHECK VALVES.
AN EXTERNAL CHECK IS NO LONGER NEEDED OR INCLUDED IN THIS KIT.
