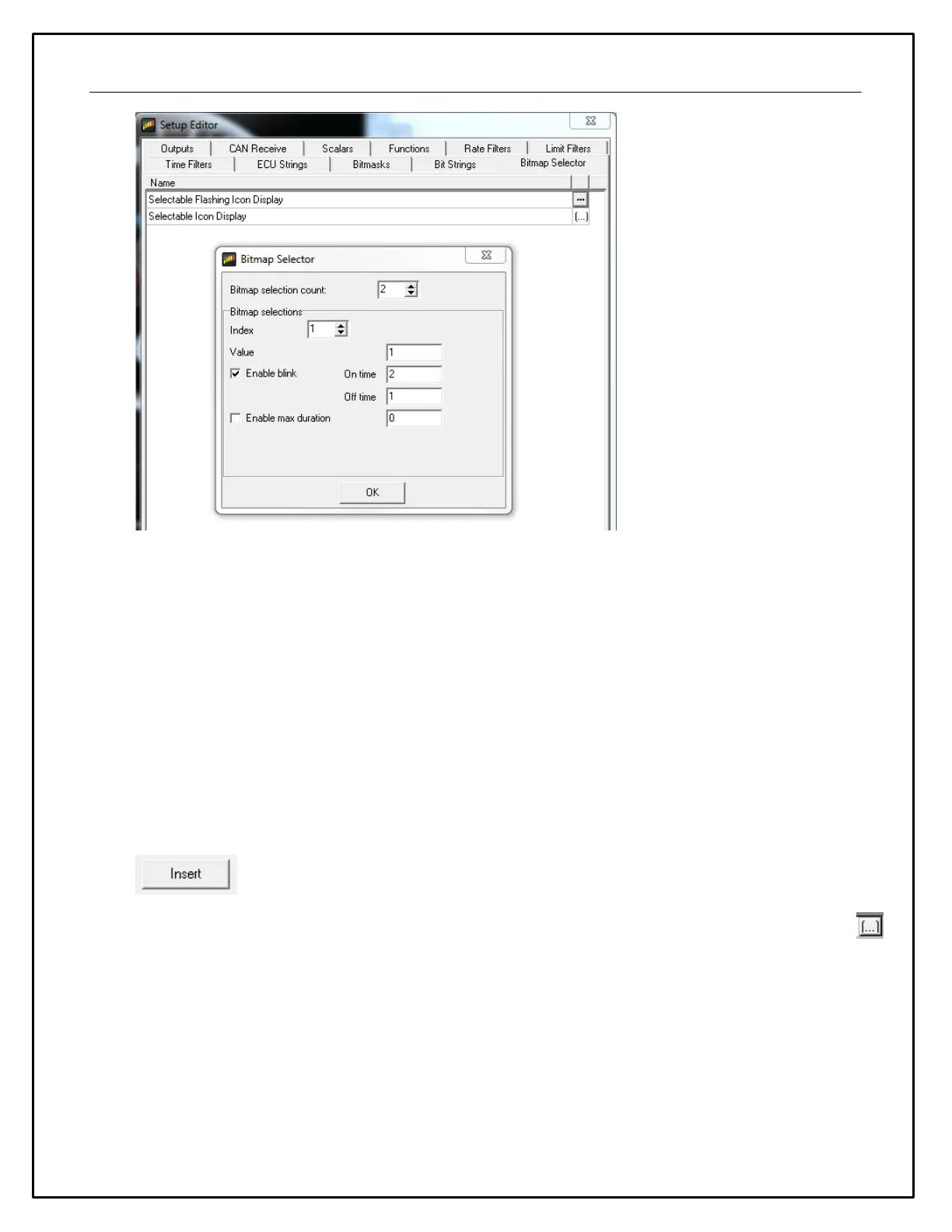

The bitmap selection count is the number of bitmaps used in the sensor and is at least two. The first bitmap is
shown by default. Subsequent bitmaps are shown according to the settings in the Bitmap Selections box.
· Index - The number of the selection bitmap for which the following settings are made. For example, if the
selection count is set to 3, 1 will specify the first selectable bitmap and 2 will specify the second
selectable bitmap.
· Value - When the input (specified in the output) is equal to this value, this bitmap is shown instead of the
default bitmap.
· Enable Blink - If checked, this bitmap will blink according to the On Time and Off Time in seconds. The
bitmap swaps between the indexed bitmap and the default bitmap.
· Enable Max Duration - If checked, the bitmap is only be shown for the specified duration no matter how
long the input is equal to the value.
Alarm Operation
To create a new Alarm output, push the Insert button in the Outputs tab of the Setup Editor.
Assign the output a new name and choose Alarm from the dropdown list of available Operations. Push the
button under the Primary Input column for the new Alarm Output. This will open the Alarm Output Setup
window. The new name will automatically be added to the Alarm Output Name box.
