However, it is possible to show the editor windows at different scalings by selecting and appropriate value from
the Display | Display Scale menu. Supported scales are 75%, 100% (default), 125%, 150%, 175% and 200%
.
The Monitor Screen
Normally a given output is only monitored if used by a gauge on the currently displayed screen. In certain
circumstances however, it is necessary to monitor some outputs irrespective of whether or not they are used
by the currently displayed screen page. For example, if the maximum coolant temperature is required as an
output for some screens, switching screens deletes the output as the screen changes and recreates it if
necessary. The maximum output is then be reset and its' information is lost. By adding this output to the
monitor page it is created when the color display is switched on. Changing screens has no effect on the output
and the data is not reset unless a reset signal is received.
Furthermore, outputs added to the monitor screen are automatically stored in non-volatile memory. Thus, the
value of a min, max or average output added to the monitor screen is preserved even when the screen is
powered off.
Select Display | Monitor to view the monitor screen setup. Add the outputs to be continuously monitored to
the list.

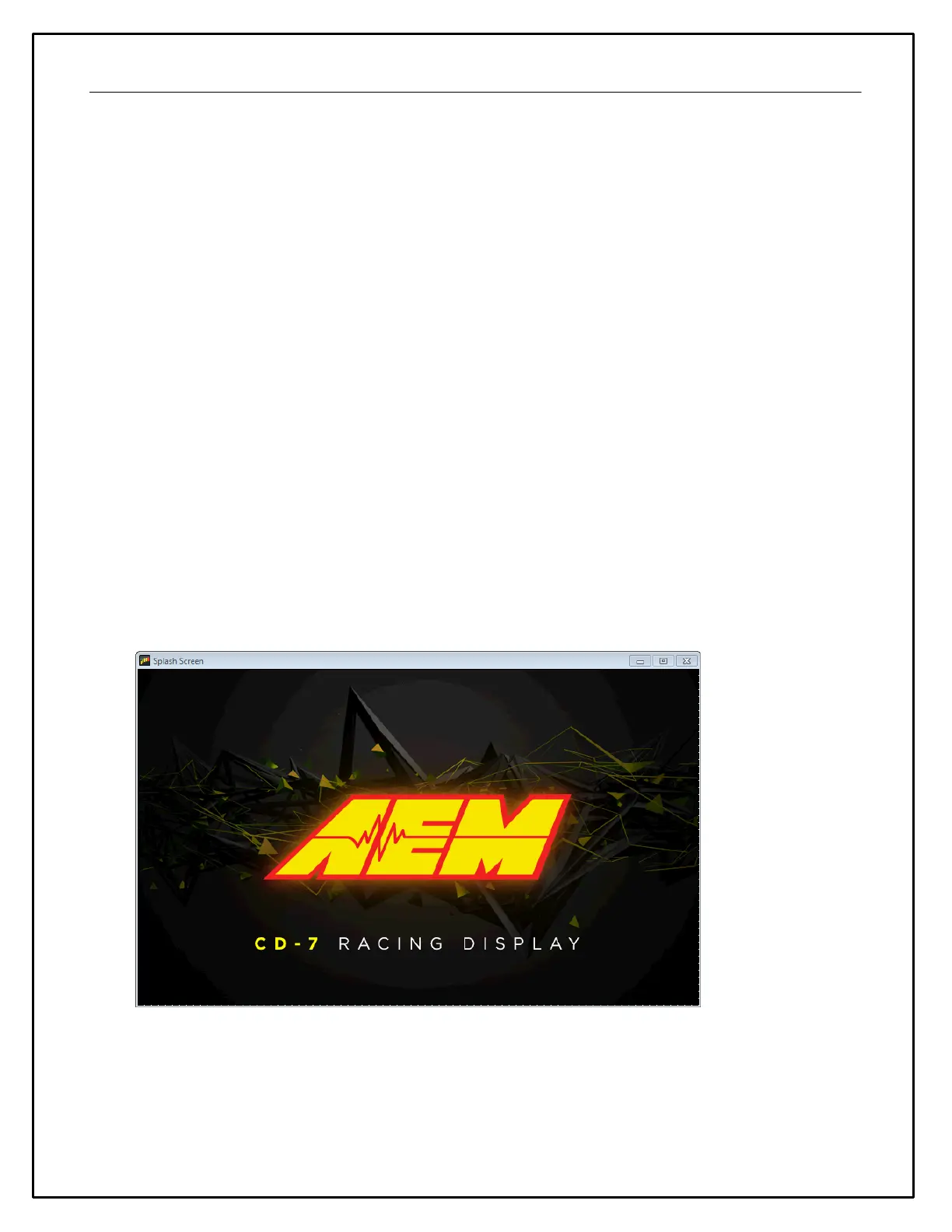

The Splash Screen
The splash screen is a special screen that is shown for a set period when the display starts; for showing a
team logo for example.
To design the splash screen, go to Display | Splash Screen and design the screen layout as normal. Typically,
this will just be a logo but other static values (such as the serial number or version details) will work as well.
Setting Screen and Default Colors
The color menu allows the default colors to be specified. These are used whenever a new gauge is added to a
screen. The default colors can be overridden in the individual gauge properties.
· Screen – Sets the background color of the current screen.
· Warning – Default color of a warning bar when it is triggered.
