Aeon Labs Aeotec MULTISENSOR 6 User Manual

9
Tips: We suggest you choose the second method (using screws to
afx the Back-Mount Arm) would be more stable.

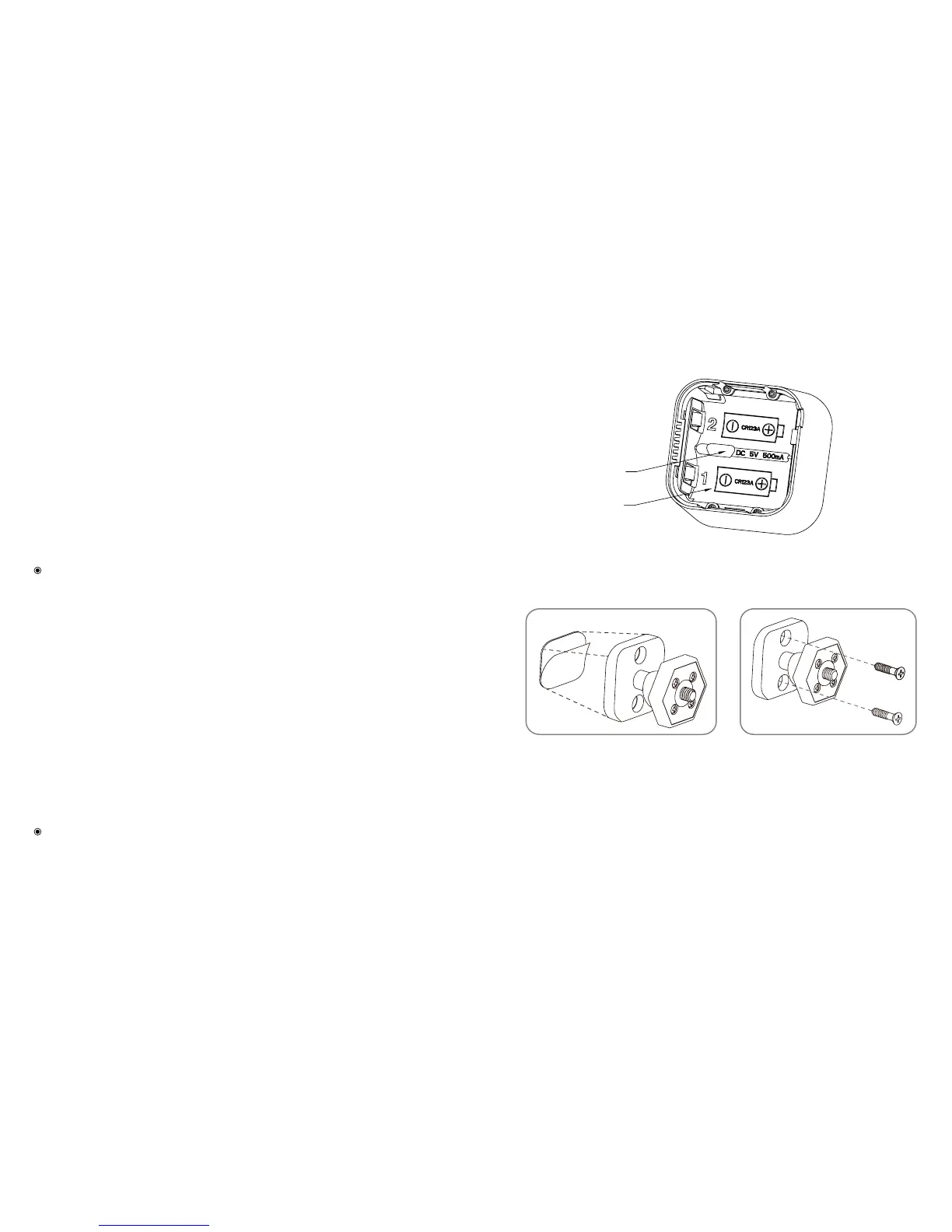

Attach your desired mounting accessory. This can be the Back-
Mount Arm. You can affix the Back-Mount Arm via using the
provided KA2.5×20mm screws or Double-Sided Tape.
After you have completed the afxing of Back-Mount Arm, you
will need to lock the MultiSensor to the Back-Mount Arm via
turning the MultiSensor.
3.
4.
Or
Double-Sided Tape
Waking up your MultiSensor.
Tamper protection of your MultiSensor.
If your MultiSensor is battery powered, you will need to ensure
that it is active when configuring it. To do this, press the Action
Button once, which will trigger to send out a wake up notication
command. If you want it to wake up for 10 minutes, to do this, press
and hold its Action Button for 3 seconds and then release it. Your
MultiSensor’s LED will fast blink for 10 minutes to indicate that it is
active.
When you are done configuring or communicating with your
MultiSensor, you can put it back into sleep mode to conserve
battery power. To do this, press and hold its Action button for 3
seconds and then release it. Your MultiSensor’s LED should now
be off to indicate that it is asleep.
Parameter 111-113 [4 byte decimal] can be congured through your
gateway in case the default settings of your MultiSensor are not
what you desire.
Parameter 111 will set the interval for Group 1 (parameter 101),
parameter 112 will set the interval for Group 2 (parameter 102), and
parameter 113 will set the interval for Group 3 (parameter 103).
As an example, you have set parameter 101 to 241 which will report
all of the sensors, and you want to report it every 1800 seconds.
Set parameter 111 to 1800 to accomplish this.
16
USB port
Battery Holder
