CONNECT 5/8'' I.D. HOSE TO CONDENSATE DRAIN
SHELL DRAIN VALVE *
RELIEF VALVE *
HOUSE RECIRCULATION
(NOTE 6)
6''
(NOTE 6)
6''
TAP FOR OXYGEN
MANDATORY GAS PRESSURE REGULATOR (SUPPLIED BY OTHERS)
7.7" W.C. (PROPANE GAS) AT MAXIMUM BTU/H INPUT
GAS IN - SEE GF-1030 FOR GAS PIPING INSTALLATION
MAINTAIN A REGULATED 8.8'' W.C. PRESSURE (NATURAL GAS)/
DIRT TRAP
2'
COLD WATER IN
HOSE CONNECTION
ANALYZER
DRAIN
TO THE HEATER, SEE DIMENSIONAL DRAWING
1) FOR ACTUAL SIZES AND LOCATIONS OF PIPING AND OTHER CONNECTIONS
NOTES:

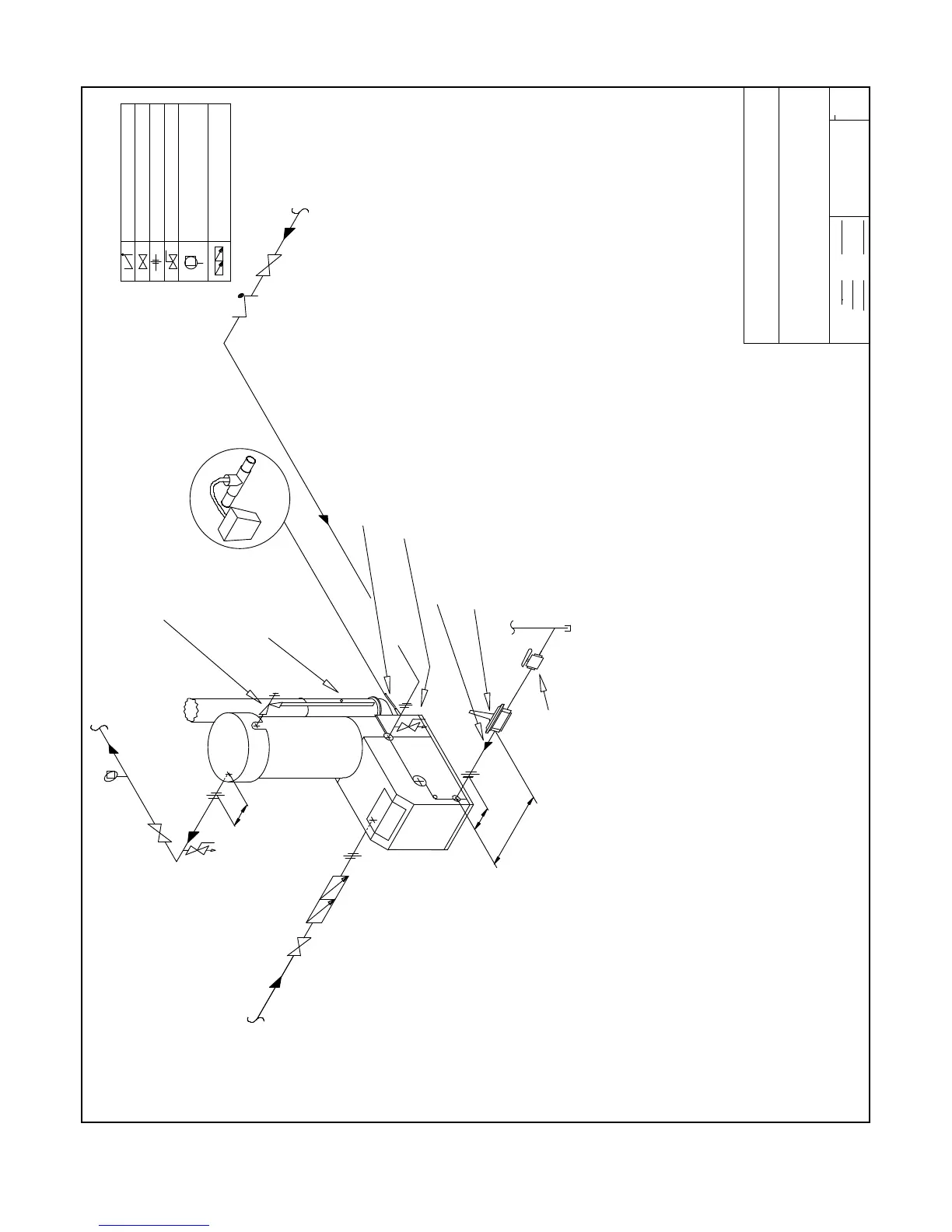

GAS FIRED WATER HEATER
KC1000 1 MIL. BTU LOW NOx
SINGLE UNIT INSTALLATION
NORTHVALE, NJ 07647
INTERNATIONAL, INC.
APPD.
DWN.BY
SCALE
DATE
DATE
JK
NTS
113006
AERCO
SD-A-705
D
REV.
DRAIN VALVE
UNION
STOP VALVE
LEGEND
CHECK VALVE
2) SHELL DRAIN VALVE AND CONDENSATE HOSE SHOULD BE ARRANGED TO PERMIT THE FLUIDS TO
DRAIN FREELY, BY GRAVITY, TO A FLOOR DRAIN.RELIEF VALVE SHOULD BE PIPED VERTICALLY
TO A HEIGHT 18" ABOVE THE FLOOR.
3) ALL (*) ITEMS ARE INCLUDED SEPARATELY IN SHIPMENT.
4) THIS IS A TYPICAL INSTALLATION DRAWING. LOCAL CODES AND AUTHORITIES SHOULD BE CONSULTED.
5) HOSE CONNECTION AT HEATER OUTLET IS FOR INITIAL HEATER CALIBRATION DURING START-UP.
6) LOCATE WATER INLET AND OUTLET FITTINGS (i.e.UNIONS, ELBOWS, ETC.) A MINIMUM OF 6" FROM WATER HEATER
FITTINGS, TO PREVENT INTERFERENCE WITH REMOVAL OF HEATER PANELS. WHEN A FLEX CONNECTOR IS FACTORY SUPPLIED
LOCATE GAS PRESSURE REGULATOR A MINIMUM OF 2' FROM HEATER.
T
T
THERMOMETER
(WHEN EMPLOYED)
1-1/4" MANUAL SHUTOFF *
BACKFLOW PREVENTER
(NOTE 8)
(FOR DUAL-FUEL INSTALLATION, SEE NOTE 7)
(FOR DUAL-FUEL INSTALLATION, SEE NOTE 7)
HOT WATER OUT
INTO ANOTHER (FOR EXAMPLE, FROM NATURAL GAS TO PROPANE, AND VICE VERSA).
DUAL GAS PIPING SYSTEM TO PREVENT DIRECT FLOW OF FUEL FROM ONE SYSTEM OF GAS PIPING
- INSTALLER MUST CHECK WITH LOCAL CODES REGARDING ACCEPTABLE METHOD OF DESIGNING
- INSTALL APPROPRIATE REGULATOR FOR CURRENT FUEL IN USE.
7) FOR DUAL-FUEL INSTALLATION:
BY AERCO, IT MUST BE INSTALLED AT THE HOT WATER OUTLET CONNECTION OF THE WATER HEATER.
ALL PIPING & ELECTRIC CONNECTIONS SHOULD BE 6" AWAY FROM SIDE PANELS.
