AERMEC FCL 84 - Maintenance and Disassembly

67
IFCLTY 1112 - 4528511_04

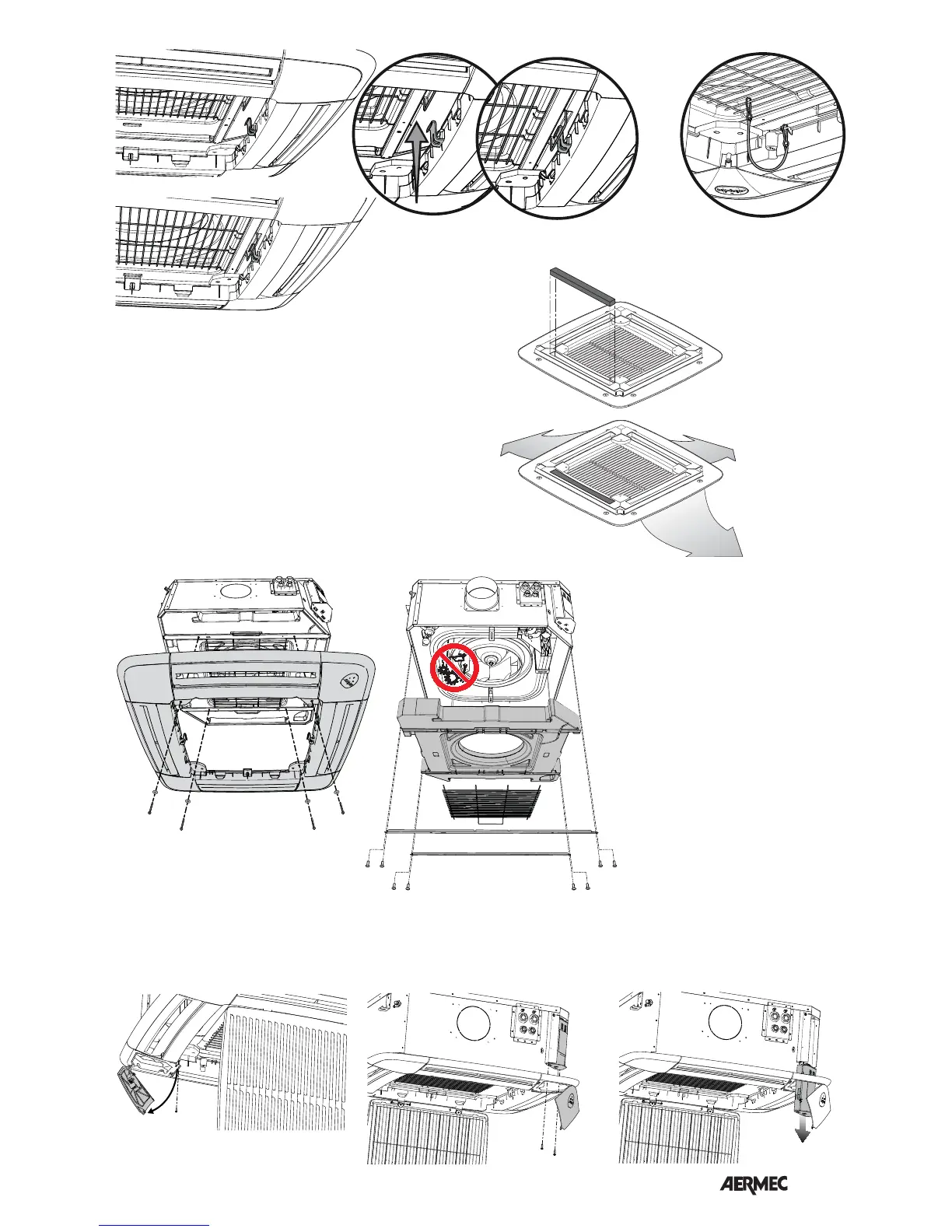

• Disassembly for maintenance
- Before performing any operation on
the unit, the electric power supply
must be interrupted.
- To access the inside of the unit,
remove the two cross-members fixed
to the frame with the screws. It is now
possible to remove the fan protection
grid and the polystyrene basin. (see
figure)
- DANGER!! Before re-applying voltage
to the unit, all components, especially
the protection grid, must have been
re-mounted correctly.
• Installation in proximity of a wall
If installed in proximity of a wall it is
possible to close the corresponding
flow inlet using the gasket supplied.
• Electric box maintenance
If the electric box must be accessed for
maintenance, follow the indications
below:
- Open the filter grid (turn the two
ratchets by ¼ of a turn).
- Remove the lock screw on the corner
door with the Aermec logo.
- Remove the 2 lock screws from the
electric box.
- Slide the electric box downwards.
- Carry out the necessary maintenance.
- Re-mount everything performing the
disassembly procedure in reverse order.
