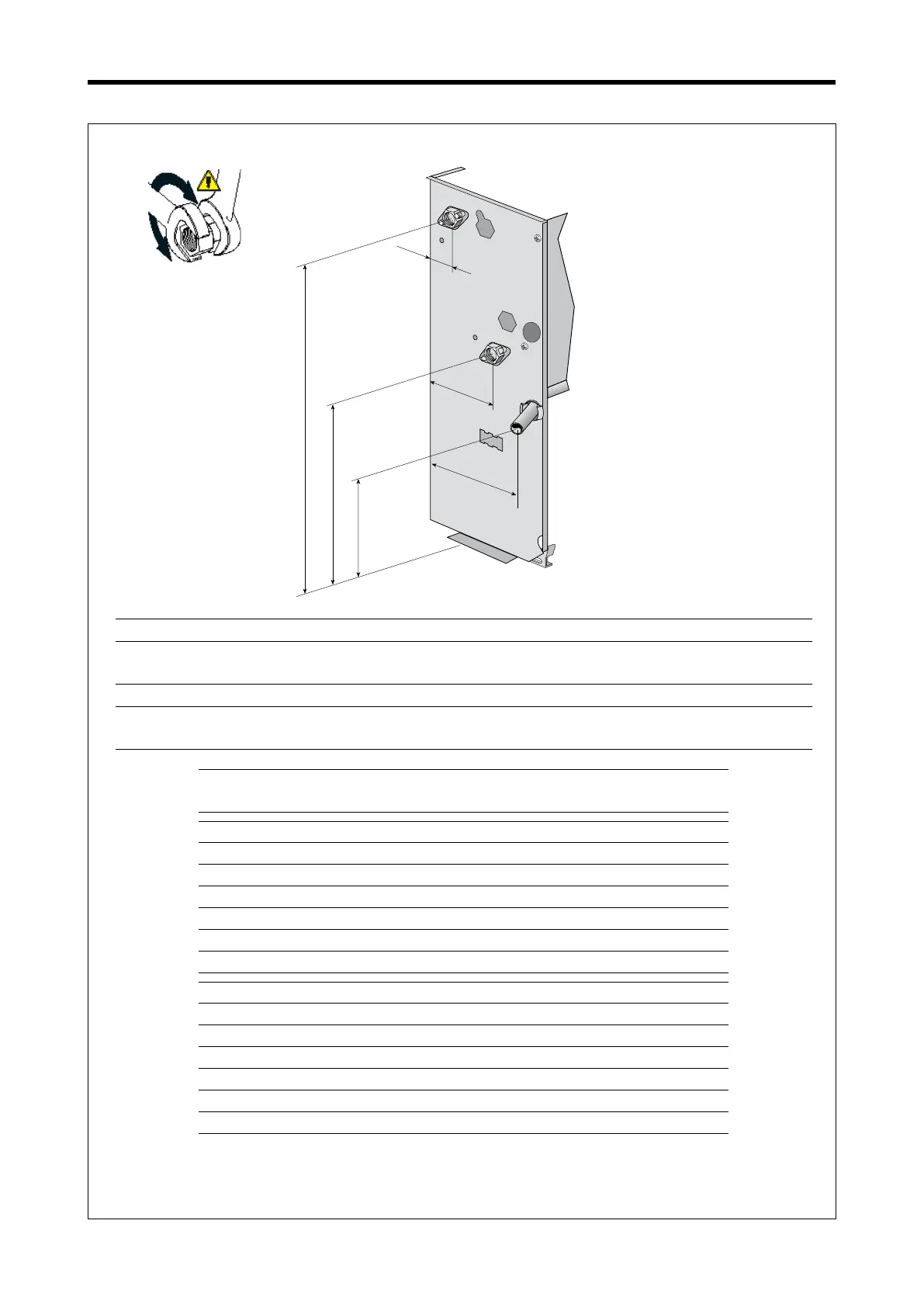

DIMENSIONS •
3 AND 4 ROW COIL •
Mod. FCX 17 FCX 22 FCX 32 FCX 42 FCX 50 FCX 62 FCX 82 FCX 102
Coil connections (female)
1/2”F 1/2”F 1/2”F 3/4”F 3/4”F 3/4”F 3/4”F 3/4”F
Mod. FCX 24 FCX 34 FCX 44 FCX 54 FCX 64 FCX 84
Coil connections (female)
3/4”F 3/4”F 3/4”F 3/4”F 3/4”F 3/4”F
Mod. FCX 17 FCX 22 FCX 32 FCX 42 FCX 50 FCX 62 FCX 82 FCX 102
FCX 24 FCX 34 FCX 44 FCX 54 FCX 64 FCX 84
US measure system
A 15.91 15.91 15.91 15.91 15.91 20.71 20.71 20.71
B 10.24 10.24 10.24 10.24 10.24 10.75 10.75 10.75
C 6.02 6.02 6.02 6.02 6.02 6.69 6.69 6.69
D 1.61 1.61 1.61 1.61 1.61 1.61 1.61 1.61
E 5.59 5.59 5.59 5.59 5.59 5.83 5.83 5.83
F 7.64 7.64 7.64 7.64 7.64 7.64 7.64 7.64
Metric system
A 404 404 404 404 404 526 526 526
B 260 260 260 260 260 273 273 273
C 153 153 153 153 153 170 170 170
D 41 41 41 41 41 41 41 41
E 142 142 142 142 142 148 148 148
F 194 194 194 194 194 194 194 194
ATTENTION: Use
two wrenches to
tighten
