AERMEC FCX - BV Heating Coil (Accessory) • BV Batterie de Chauffage (Accessories)

9
BV HEATING COIL (Accessory) • 






Mod. FCX 17 FCX 22 FCX 32 FCX 42 FCX 50 FCX 62 FCX 82 FCX 102
Coil connections (female)
1
/
2
”F
1
/
2
”F
1
/
2
”F
1
/
2
”F
1
/
2
”F
1
/
2
”F
1
/
2
”F
1
/
2
”F


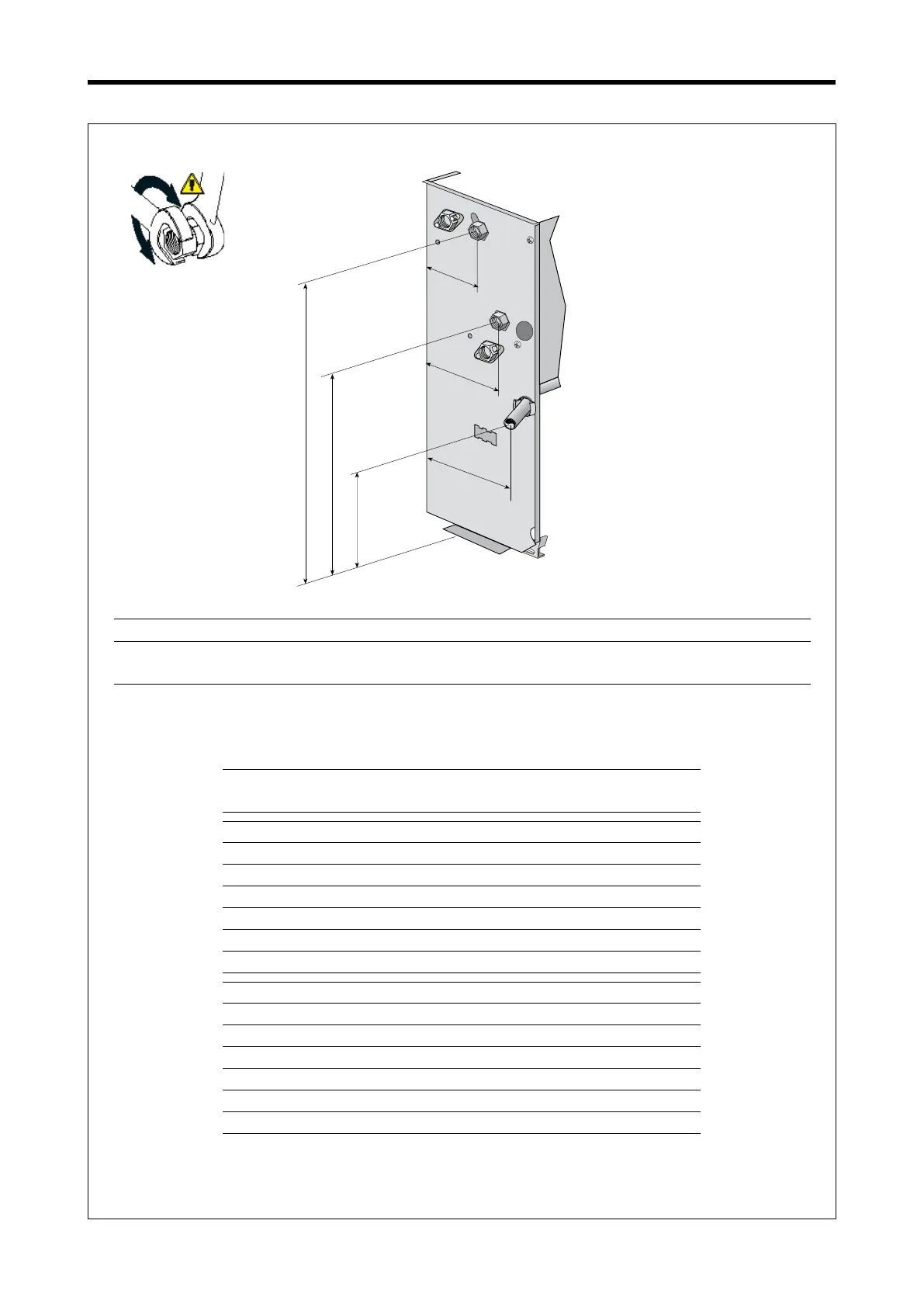

DIMENSIONS • 
Mod. FCX 24 FCX 34 FCX 44 FCX 54 FCX 64 FCX 84
US measure system
A 16.06 16.06 16.06 16.06 20.43 20.43
B 12.72 12.72 12.72 12.72 14.88 14.88
C 6.02 6.02 6.02 6.02 6.69 6.69
D 3.78 3.78 3.78 3.78 3.78 3.78
E 6.10 6.10 6.10 6.10 6.14 6.14
F 7.64 7.64 7.64 7.64 7.64 7.64
Metric system 
A 408 408 408 408 519 519
B 323 323 323 323 378 378
C 153 153 153 153 170 170
D 96 96 96 96 96 96
E 155 155 155 155 156 156
F 194 194 194 194 194 194
ATTENTION: Use
two wrenches to
tighten
