The unit must be connected directly to an elec-
trical outlet or an independent circuit.
Any operations carried out by personnel with-
out the appropriate qualifications my result in
injury to the operator, or damage to the unit or
the environment.
Only supply power to the fan coil units at 230V
~ 50Hz. Use of different power supplies will dam
-

WARNING: The power cables must be connected
to Phase (L) and Neutral (N); do not reverse the
wiring and follow the wiring diagram.
Install an electrical isolator or plug that allows
the electrical power to be completely isolated
from the unit.
To protect the unit against short circuits, fit a cir
-
cuit breaker of max. 2A 250V (IG) to the power
line with a minimum contact opening distance
of 3 mm.
We recommend using differential devices suita
-
ble for intervening for currents of different type:
sinusoidal AC and pulsating DC currents
suddenly applied or slowly rising.



-

        
      



     

CHARACTERISTICS OF THE CONNECTING CABLES

    
enclosed inside a tube or conduit.
Use a cable cross section of 1mm2 minimum.
 

       
must not be subjected to stress or twisting and
must be protected from external forces.
Stranded cables can only be used with cable
lugs. Ensure the strands are correctly inserted.
Electrical wiring diagrams are subject to con
-
stant updates. Always refer to the wiring dia-
grams inside the unit.
     


connections.

-


      


components supplied as accessories; ensure

WARNING
-
    
fan coil unit.
  
      

     
     
-
    -
mum water temperature sensor must be moved
       


WARNING: Ensure that the installation has been
carried out correctly. Follow the check proce
-
dures shown in the control device manual.
WARNING: 
WARNING: I
the Table of Alarm Codes to interpret the signals
from the two LEDs (Alarm / Power) which indi-

wiring diagram is located within the unit.
DANGER! Only maintenance qualified personnel
my access the unit.

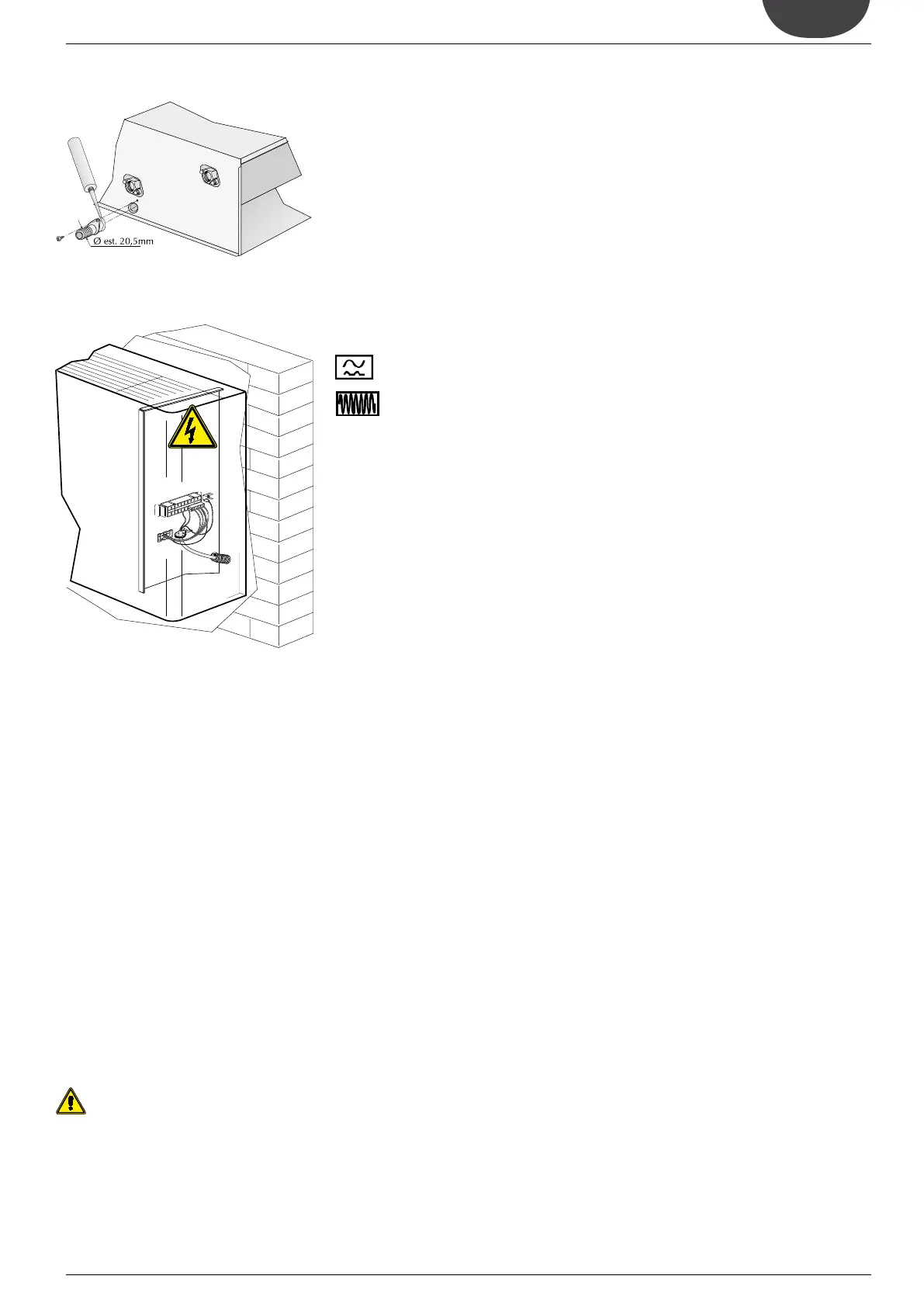

35. CONDENSATE DRAIN
    -
condensate drain fitting supplied. Care must
     
between tray and fitting.

-
    

       
 

       
condensate drainage system by pouring water

36. ELECTRICAL WIRING




-
-

