AERMEC GLL M Series User Manual

11
English
SW 2
Dip 1 (Default OFF)
Factory settings.
Dip 2 (Default OFF)
Factory settings.
Dip 3 (Default OFF)
Factory settings.
Dip 4 (Default OFF)
Factory settings.
Dip 5 (Default OFF)
Factory settings.
Dip 6 (Default OFF)
Factory settings.
Dip 7 (Default OFF)
Factory settings.
Dip 8 (Default ON)
Factory settings.
SW 1
Dip 1 (Default OFF)
Resistance control:
- functioning in integration mode, OFF
- functioning in replacement mode, ON.
Dip 2 (Default OFF)
Presence of the resistance:
- without electric heater, OFF,
- with electric heater, ON.
Dip 3 (Default OFF)
System type:
- 2 pipes (FCL32 - FCL 36 - FCL 42 - FCL 62), OFF
- 4 pipes (FCL34 - FCL 38 - FCL 44 - FCL 64), ON.
Dip 4 (Default OFF)
Factory settings.
Dip 5 (Default OFF)
Factory settings.
Dip 6 (Default OFF)
Ventilation control:
- continuous ventilation, OFF
- thermostat ventilation heating mode, ON.
Dip 7 (Default ON)
Factory settings , ON.
Dip 8 (Default ON)
Factory settings , ON.
Turn off the power to the unit.
To be performed in the installation phase, only by expert staff.
SW2 contains settings that must not be modified (the table states default settings).
By acting on the Dip-Switches of SW1 the following functionalities are obtained:
DIP SWITCH CONFIGURATION
OFF
ON
SW2
1 2 3 4 5 6 7 8
OFF
ON
SW1
1 2 3 4 5 6 7 8
OFF
ON
SW2
1 2 3 4 5 6 7 8
OFF
ON
SW1
1 2 3 4 5 6 7 8
OFF
ON
SW2
1 2 3 4 5 6 7 8
OFF
ON
SW1
1 2 3 4 5 6 7 8
OFF
ON
SW2
1 2 3 4 5 6 7 8
OFF
ON
SW1
1 2 3 4 5 6 7 8

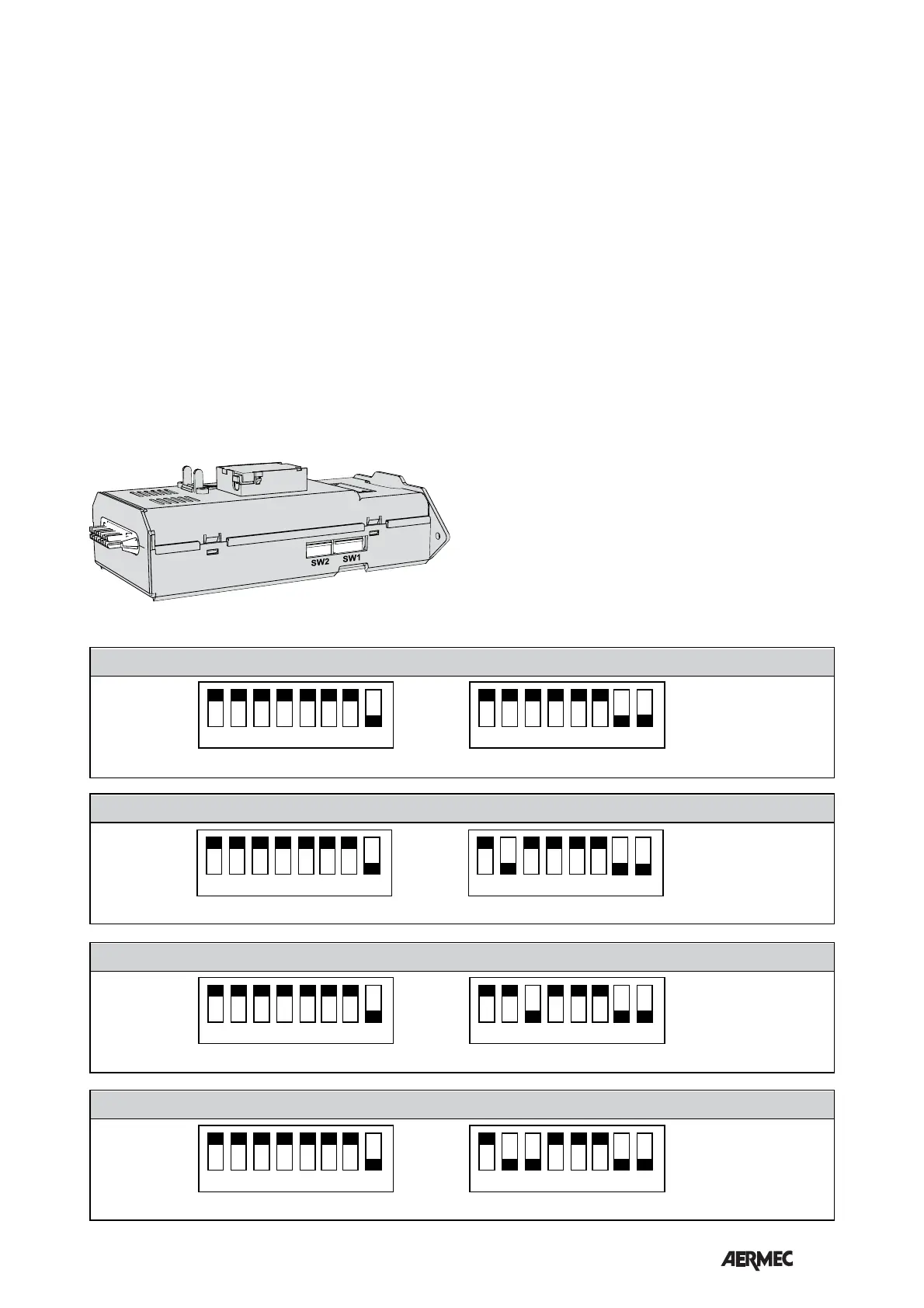

SOME EXAMPLES :
FCL 2 pipe (default)
FCL 2 pipe + Electric heater
FCL 4 pipe
FCL 4 pipe + Electric heater
