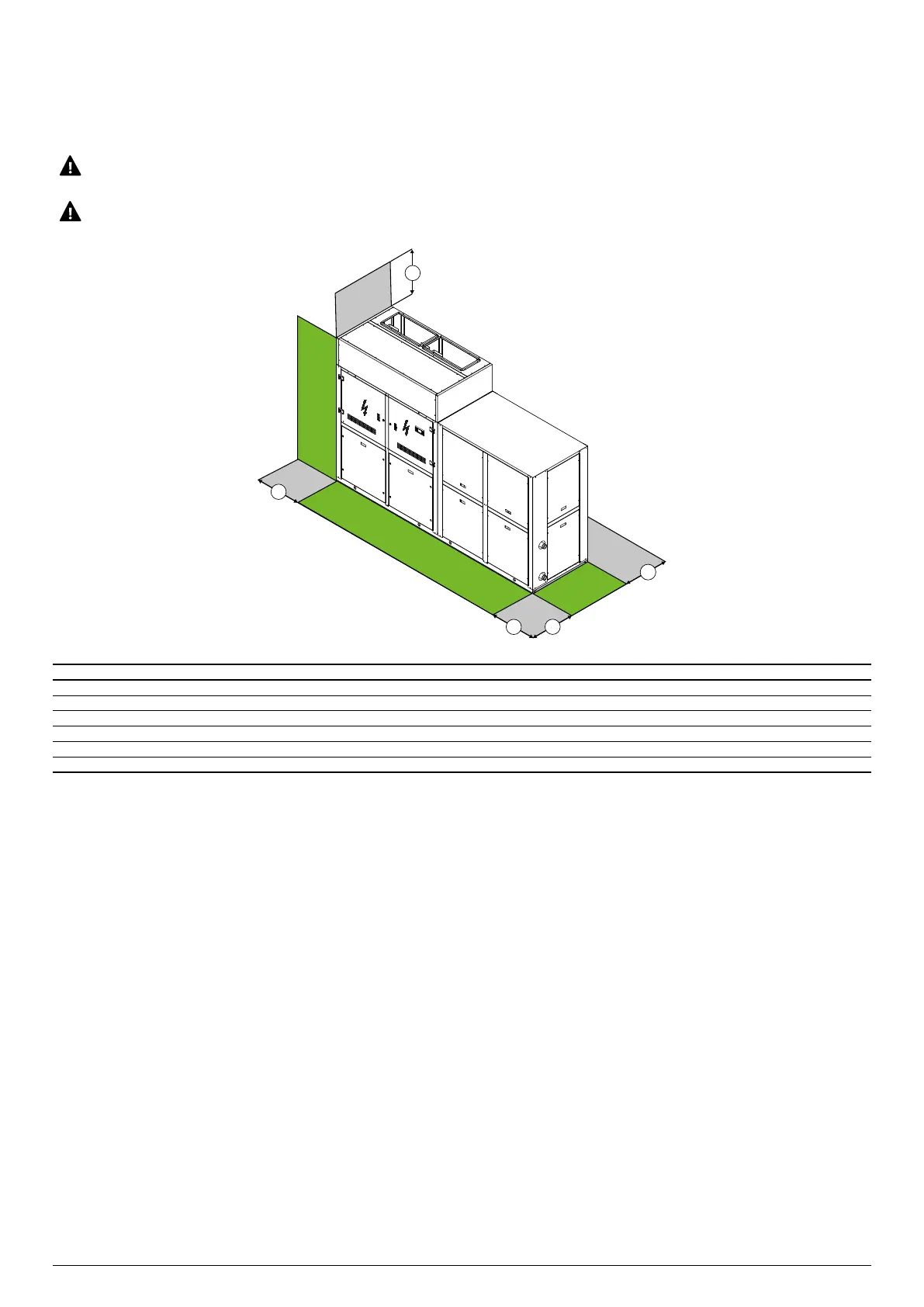

7 MINIMUM TECHNICAL SPACES
With regards to all units, it is essential to respect the minimum distances to avoid:
— The generation of hazardous atmospheres in the case of refrigerant gas leaks;
The place where the unit is installed must be accessible and permitted only to authorised personnel.
It is important that the units are installed at. The improper installation of the unit invalidates the warranty.
Each side of the unit must have space to allow all routine and extraordinary maintenance to be performed.
B1
B2
Size 0280 0300 0330 0350 0550 0600 0650 0675 0750 0800 0900 1000 1100 1250
Minimum technical spaces
A1 A in 39.4 39.4 39.4 39.4 39.4 39.4 39.4 39.4 39.4 39.4 39.4 39.4 39.4 39.4
B1 A in 39.4 39.4 39.4 39.4 39.4 39.4 39.4 39.4 39.4 39.4 39.4 39.4 39.4 39.4
B2 A in 19.7 19.7 19.7 19.7 19.7 19.7 19.7 19.7 19.7 19.7 19.7 19.7 19.7 19.7
C1 A in 31.5 31.5 31.5 31.5 31.5 31.5 31.5 31.5 31.5 31.5 31.5 31.5 31.5 31.5
C2 A in 31.5 31.5 31.5 31.5 31.5 31.5 31.5 31.5 31.5 31.5 31.5 31.5 31.5 31.5
A1 = For further information please contact the head oce.
