System: Chiller with plate heat exchanger
PH 7,5 - 9
Total hardness 4,5 - 8,5 °dH
Temperature < 65 °C
Oxygen content < 0,1 ppm
Max. glycol amount 50 %
Phosphates (PO₄) < 2ppm
Manganese (Mn) < 0,05 ppm
Iron (Fe) < 0,3 ppm
Alkalinity (HCO₃) 70 - 300 ppm
Chloride ions (Cl-) < 50 ppm
Sulphate ions (SO₄) < 50 ppm
Sulphide ion (S) None
Ammonium ions (NH₄) None
Silica (SiO₂) < 30 ppm
WATER CHARACTERISTICS
NRK 0150 (01-03)

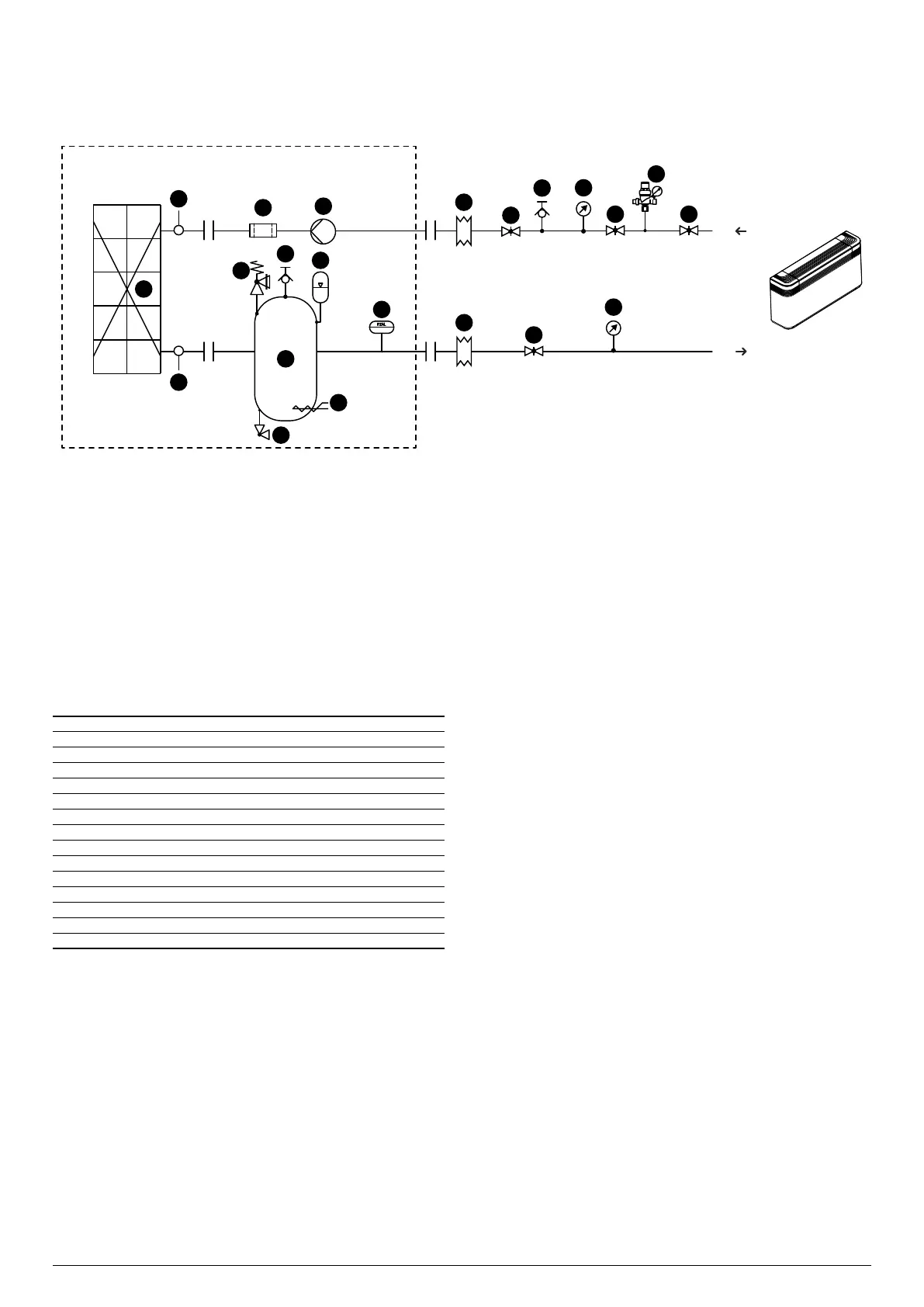

Components as standard
1 Plate heat exchanger
2 Water temperature sensors (IN/OUT)
3 Water lter
4 Pump
5 Pressure relief valve
6 Air drain valve
7 Expansion vessel
8 Storage tank
9 Antifreeze electric heater
10 Drain valve
11 Flow switch
Components not provided and responsibility of the installer
12 Anti-vibration joints
13 Flow shut-o valves
14 Air drain valve
15 Pressure gauge
16 Loading unit
3
1
2
2
14
11
12
12
13
13
4
8
9
6
15
15
7
10
5
13
13
16
